Intro to Speech Recognition in Swift via FlyoverKit

Time to read: 4 minutes

December 17, 2018

Written by

Twilion

Intro to Speech Recognition in Swift via FlyoverKit

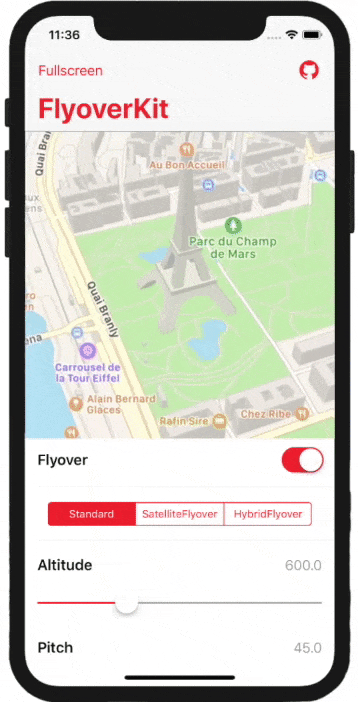

One of my favorite computer science electives was Speech Synthesis and Recognition because Natural Language Processing and Computational Linguistics are becoming more widespread (look at Siri!). In this post we will add speech recognition to select famous landmarks with FlyoverKit in Swift. If you haven't seen part one of this multi-part series, check it out on the Twilio blog here.

Setup

For this post you will need Xcode 10, a Mac, and a physical iOS device to test the speech recognition features. To follow along with this post make sure to clone the corresponding GitHub repo here as we'll be adding speech recognition capabilities to it. If you just want to make a simple speech recognition app in Swift, you can use the same code but just need to add a button to your ViewController. Name the button locButton, and create a label called placeLbl. Ignore the code in this post that is italicized.

Before we can get to some code be sure to

1. cd flyoverkit_with_twilio on the command line to get into the cloned directory.

2. run the command git checkout part-1-simplified to check into the right branch to follow alongside this post.

3. open TwilioFlyover.xcworkspace and not TwilioFlyover.xcodeproj in order to link all of the necessary frameworks. If you see a cannot load underlying module for FlyoverKit error try running the app anyways and the error should disappear.

Speech Recognition Implementation

First we need to ask the user for permission to access the microphone for speech recognition. Open up .xcworkspace and add two keys to your Info.plist file:

NSSpeechRecognitionUsageDescription
NSMicrophoneUsageDescription

Their corresponding values should describe what we are going to do with the microphone and speech detection, as shown in the Info.plist below.

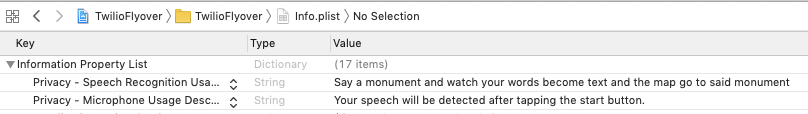

info.plist with Privacy Permissions in Dictionary

Now we're going to

Initialize the libraries we need for speech recognition
Ask the user for permission to use the microphone with speech detection
Use speech detection to find landmarks from an audio input stream
Implement FlyoverKit and use the voice search to drive the experience

In ViewController.swift add import Speech at the top below the ones from part one of this blog series as below.

import FlyoverKit
import MapKit
import Speech

The Speech library gives us some functions to recognize speech.

In addition to the UIViewController and MKMapViewDelegate, our ViewController should now conform to the SFSpeechRecognizerDelegate protocol. Make sure the line beneath all your import statements looks like this now:

class ViewController: UIViewController, MKMapViewDelegate, SFSpeechRecognizerDelegate {

Let's define the following global variables above the mapSetUp method:

var userInputLoc = FlyoverAwesomePlace.parisEiffelTower
let speechRecognizer: SFSpeechRecognizer? = SFSpeechRecognizer(locale: Locale.init(identifier:"en-us"))
var recognitionRequest: SFSpeechAudioBufferRecognitionRequest?
var recognitionTask: SFSpeechRecognitionTask?
let audioEngine = AVAudioEngine()

What do they do?

SFSpeechRecognizer performs the speech recognition task.
Because it returns nil speech recognition for the given locale isn't supported it should be an optional.
We are passing "en-us" as the locale identifier, converting from US English speech to text. You can change that identifier for different languages or even use Locale.current for the user's current region settings. More information on locales can be found here.
SFSpeechAudioBufferRecognitionRequest controls the audio buffer and allocates speech in real-time when a user speaks. If you used a pre-recorded audio file use the SFSpeechURLRecognitionRequest instead. SFSpeechRecognitionTask manages, cancels, or stops the current recognition task.
AudioEngine() processes audio input and provides an update when the microphone receives audio.

Make sure to uncomment the lines in mapSetUp that are currently commented out!

Ask For Permission to Access Microphone

Scroll down and find viewDidLoad(). This is where we will add code to asynchronously present a system dialogue to a user requesting access to the microphone. We need to also asynchronously check that we have microphone permission by using DispatchQueue.main.async to set a boolean.

override func viewDidLoad() {
        super.viewDidLoad()
        speechRecognizer?.delegate = self
        SFSpeechRecognizer.requestAuthorization {
            status in
            var buttonState = false
            switch status {
            case .authorized:
                buttonState = true
                print("Permission received")
            case .denied:
                buttonState = false
                print("User did not give permission to use speech recognition")
            case .notDetermined:
                buttonState = false
                print("Speech recognition not allowed by user")
            case .restricted:
                buttonState = false
                print("Speech recognition not supported on this device")
            }
            DispatchQueue.main.async {
                self.locButton.isEnabled = buttonState
            }
        }
        self.placeLbl.frame.size.width = view.bounds.width - 64
    }

Record Audio

Below viewDidLoad let's add the startRecording() function to record a new audio buffer.

A recognitionTask object is created when the recognizer kicks off a request to either track the progress of a transcription or cancel it. We're measuring the audio input and wish to resume audio playback upon deactivating our audioSession. This is a large function that can be viewed in its entirety in this GitHub gist here.

The start of that function should include the following code:

func startRecording() {
        if recognitionTask != nil { //used to track progress of a transcription or cancel it
            recognitionTask?.cancel()
            recognitionTask = nil
        }
        let audioSession = AVAudioSession.sharedInstance()
        do {
            try audioSession.setCategory(AVAudioSession.Category(rawValue:
                convertFromAVAudioSessionCategory(AVAudioSession.Category.record)), mode: .default)
            try audioSession.setMode(AVAudioSession.Mode.measurement)
            try audioSession.setActive(true, options: .notifyOthersOnDeactivation)
        } catch {
            print("Failed to setup audio session")
        }

        recognitionRequest = SFSpeechAudioBufferRecognitionRequest() //read from buffer
        let inputNode = audioEngine.inputNode
        guard let recognitionRequest = recognitionRequest else {
            fatalError("Could not create request instance")
        }

Next we start voice recognition by calling the recognitionTask method of our speechRecognizer object. This function has a completion handler which will be called each time the recognition engine has received input, has refined its current recognition, or has been canceled or stopped. The final transcript returned is set to be our recognitionTask. We define a boolean to check if the recognition is over. If there is no error or the result is final, we stop the audioEngine with audio input, recognitionRequest, and recognitionTask and enable the record button. The best transcription of our chunk of audio (called bestStr) then becomes the text displayed by our label placeLbl. Lastly, if the result is the final result then set isFinal to true and set the map up again to reflect the new location according to bestStr.

        recognitionRequest.shouldReportPartialResults = true
        recognitionTask = speechRecognizer?.recognitionTask(with: recognitionRequest) {
            res, err in
            var isLast = false
            if res != nil { //res contains transcription of a chunk of audio, corresponding to a single word usually
                isLast = (res?.isFinal)!
            }
            if err != nil || isLast {
                self.audioEngine.stop()
                inputNode.removeTap(onBus: 0)

                self.recognitionRequest = nil
                self.recognitionTask = nil

                self.locButton.isEnabled = true
                let bestStr = res?.bestTranscription.formattedString
                var inDict = self.locDict.contains { $0.key == bestStr}

                if inDict {
                    self.placeLbl.text = bestStr
                    self.userInputLoc = self.locDict[bestStr!]!
                }
                else {
                    self.placeLbl.text = "can't find it in the dictionary"
                    self.userInputLoc = FlyoverAwesomePlace.centralParkNY
                }
                self.mapSetUp()
            }
        }

To learn more about audioEngine, check out the audioEngine documentation. In short, it uses things called nodes to process an audio buffer. Here the inputNode creates a singleton for the incoming audio. As stated by Apple: “Nodes have input and output busses, which can be thought of as connection points. For example, an effect typically has one input bus and one output bus. A mixer typically has multiple input busses and one output bus.”

The installTap function configures the node and sets up the request instance with an audio buffer on the proper bus. Then, we prepare and start the recording using the audio engine.

The following code does just that and should be placed beneath the code just added.

swift
        let format = inputNode.outputFormat(forBus: 0)
        inputNode.installTap(onBus: 0, bufferSize: 1024, format: format) {
            buffer, _ in
            self.recognitionRequest?.append(buffer)
        }
        audioEngine.prepare()

        do {
            try audioEngine.start()
        } catch {
            print("Can't start the engine")
        }
}

You should see an error that says "use of unresolved identifier convertFromAVAudioSessionCategory. Make sure the last bit of code at the very bottom beneath didReceiveMemoryWarning and the very last closing bracket is this helper function from the Swift 4.2 migrator.

fileprivate func convertFromAVAudioSessionCategory(_ input: AVAudioSession.Category) -> String {
        return input.rawValue
}

Now let's modify a function we made in the last post. Find the locButtonClicked function. Check if our audioEngine instance is running. If so, stop it and end the audio instance. The button text displays "record" but nothing is recording yet. If the button is clicked the recording will start and the text changes to "stop" to signify to the user that clicking the button again would "stop" the recording.

That code should look like this:

 @IBAction func locButtonClicked(_ sender: Any) {
        if audioEngine.isRunning {
            audioEngine.stop()
            recognitionRequest?.endAudio()
            locButton.isEnabled = false
            self.locButton.setTitle("Record", for: .normal)
        } else {
            startRecording()
            locButton.setTitle("Stop", for: .normal)
        }
    }

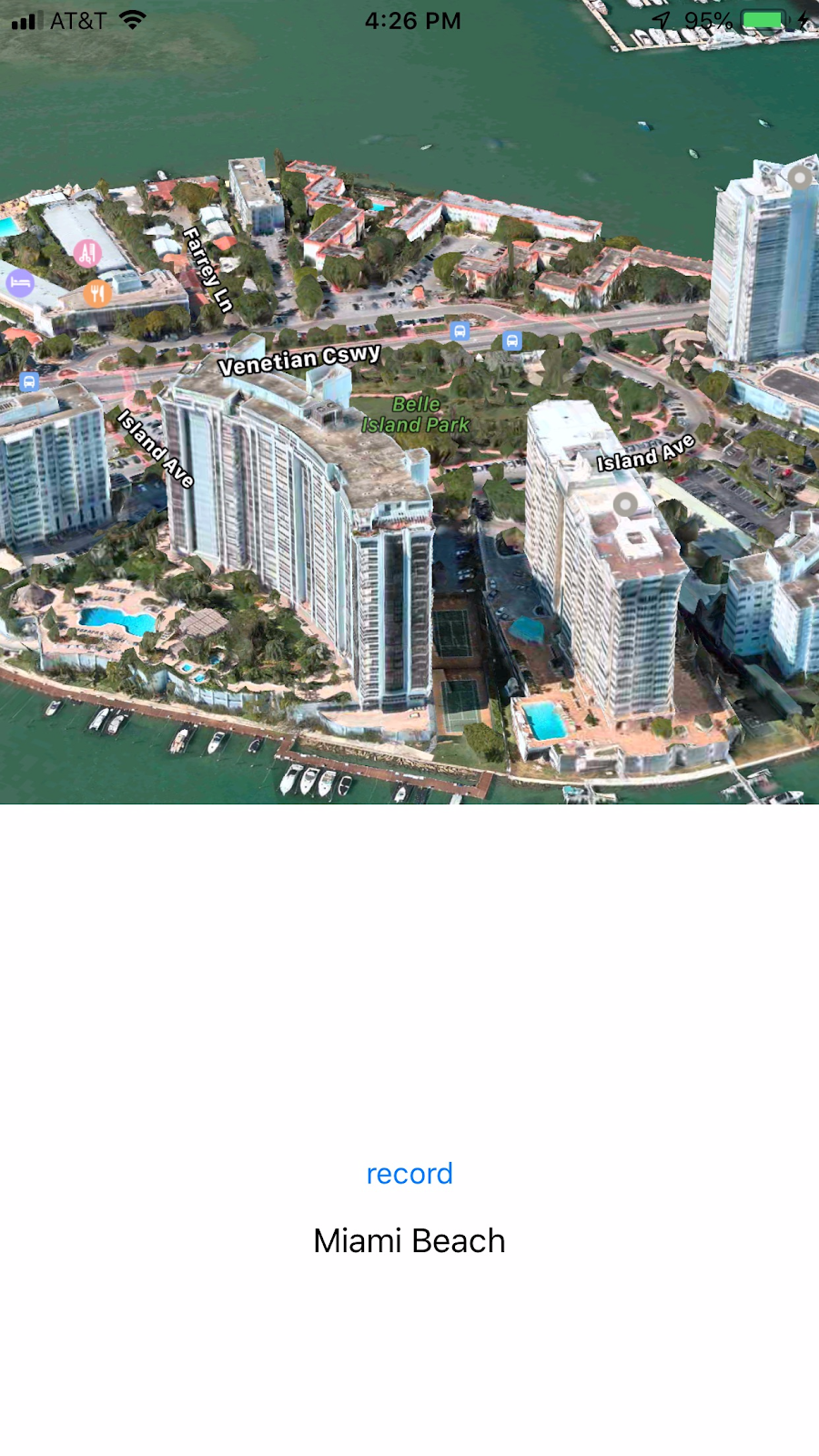

Tada! If you run the app on your physical iPhone device, click "record", and speak a location (like for example Griffith Observatory or Miami Beach) into your phone. You should see something similar to the screen below.
