Call Forwarding with Ruby and Sinatra
Time to read: 6 minutes
January 10, 2017
Written by
Reviewed by
This Sinatra application uses Twilio to connect incoming phone calls to other phone numbers based on where the caller lives. When a user dials in, we look up some information based upon their assumed location and trigger actions inside our application.
Your business might use this functionality to automatically route your customers to a regional office or to direct callers to a survey after their interaction with customer service. Our sample application connects callers to the offices of their U.S. senators.
Communication can be a powerful force for change. We’ve seen civic engagement rise as tools for civic engagement become increasingly available to an internet-connected and mobile society. In November of 2016, Emily Ellsworth shared some tips and tricks for getting your Congressperson’s attention with one big takeaway: calling works.
To run this sample app yourself, download the code and follow the README instructions on Github.
Let’s get started!
Configure your Twilio Application
For this application, we’ll be using the Twilio Ruby Helper Library to help us interact with the Twilio API. Our first step is to set up a Twilio account and the Sinatra application itself.
You’ll need to get a voice-capable Twilio phone number if you don’t already have one.
We’ve provided a sample set of data that can be loaded into your local database for testing and development. In our dataset, we’ve mapped states to senators, and we’ve mapped the senators to a few Twilio phone numbers for testing rather than actual senator phone numbers. Please note: this data set will likely be out of date by the time you use it, so we recommend you roll your own if you want to get the application production-ready.

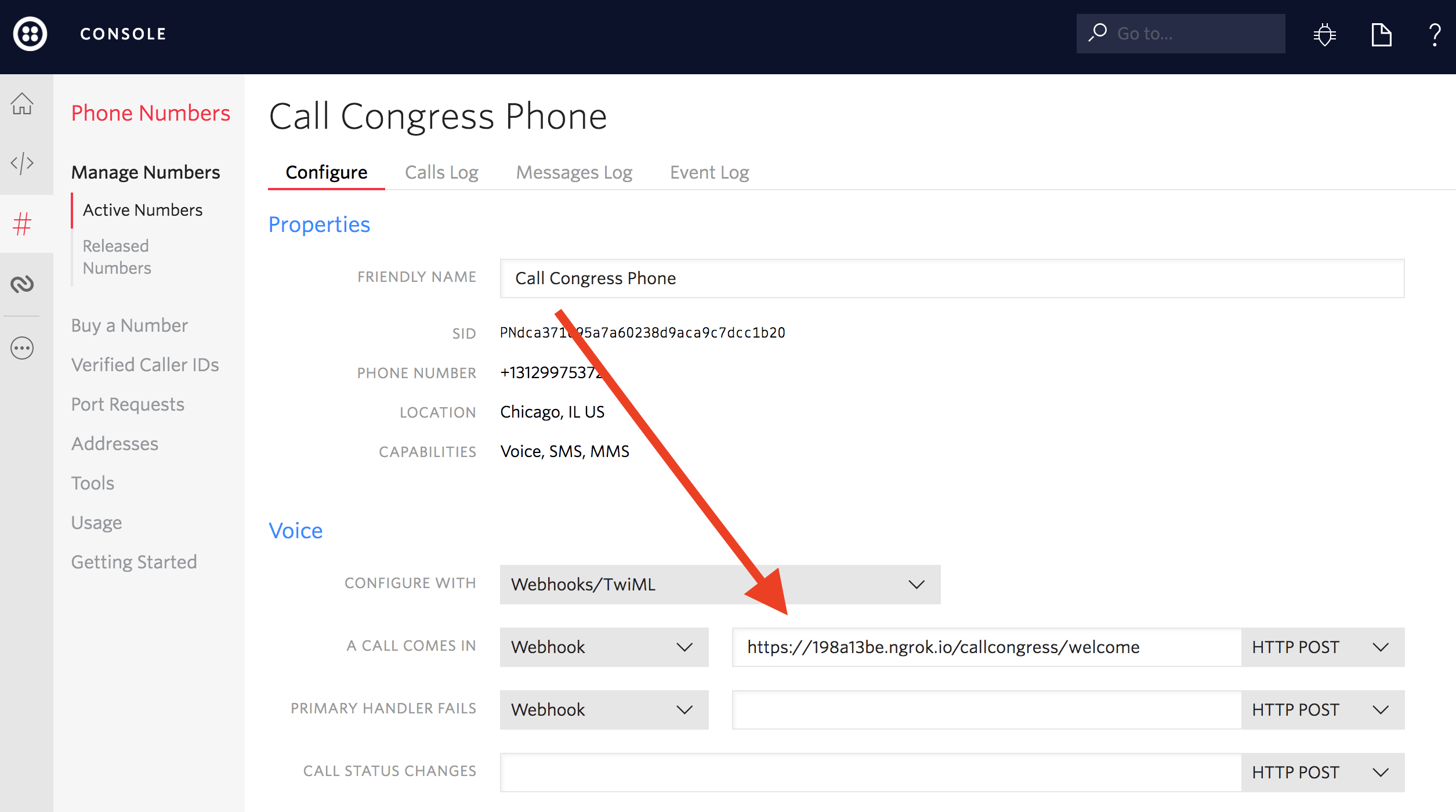

The last piece of the configuration puzzle is to create a webhook endpoint for our application to accept inbound calls. Once your database is configured and your app is up and running, go to the Twilio phone number you wish to use and configure the Voice URL to point to your application. In our sample code, the route is `/callcongress/welcome`.
We recommend using ngrok to expose your local development environment to Twilio.
Handle the Inbound Twilio Request
Our Twilio number is now configured to send HTTP requests to the /welcome endpoint on all incoming voice calls. This Twilio request arrives with some useful parameters. For our use case, we’re most concerned with fromState, as it will help us make a best guess at our caller’s state of residence.
In order to welcome our caller and properly direct them to their senators’ offices, we need to build out a response with TwiML.
Build the TwiML Response
Since the fromState parameter comes from the user’s phone rather than their actual geolocation, we want to make sure that we direct the caller to their state of residence. Let’s break down how we build out a response that both welcomes the caller and asks for confirmation of their state of residence.
``ruby
require 'sinatra/base'
require 'sinatra/config_file'
require 'sinatra/multi_route'
require_relative './helpers/datamapper_helper'
ENV['RACK_ENV'] ||= 'development'
require 'bundler'
Bundler.require :default, ENV['RACK_ENV'].to_sym
module CallForwarding
class App < Sinatra::Base
set :show_exceptions, false
set :raise_errors, false
set :root, File.dirname(__FILE__)
register Sinatra::MultiRoute
register Sinatra::ConfigFile
config_file 'config/app.yml'
DataMapperHelper.setup(settings.database_url)
DataMapperHelper.seed_if_empty(settings.seed_folder)
# home
get '/' do
erb :index
end
post '/callcongress/welcome' do
# Verify or collect State information
from_state = params['FromState']
content_type 'text/xml'
response = Twilio::TwiML::VoiceResponse.new
if from_state
response.say("Thank you for calling congress! It looks like
you're calling from #{from_state}.
If this is correct, please press 1. Press 2 if
this is not your current state of residence.")
response.gather(numDigits: 1,
action: '/callcongress/set-state',
method: 'POST',
from_state: from_state)
else
response.say("Thank you for calling Call Congress! If you wish to
call your senators, please enter your 5-digit zip code.")
response.gather(numDigits: 5,
action: '/callcongress/state-lookup',
method: 'POST')
end
response.to_s
end
route :get, :post, '/callcongress/state-lookup' do
# Look up state from given zipcode.
# Once state is found, redirect to call_senators for forwarding.
zip_digits = params['Digits']
# NB: We don't do any error handling for a missing/erroneous zip code
# in this sample application. You, gentle reader, should handle that
# edge case before deploying this code.
zip_obj = Zipcode.first(zipcode: zip_digits)
call_senators(zip_obj.state)
end
route :get, :post, '/callcongress/set-state' do
# Set state for senator call list.
# Set user's state from confirmation or user-provided Zip.
# Redirect to call_senators route.
# Get the digit pressed by the user
digits_provided = params['Digits']
# Set state if State correct, else prompt for zipcode.
if digits_provided == '1'
state = params['FromState']
call_senators(state)
elsif digits_provided == '2'
collect_zip
end
end
route :get, :post, '/callcongress/call-second-senator/:senator_id' do
# Forward the caller to their second senator.
senator = Senator.get(params['senator_id'])
content_type 'text/xml'
response = Twilio::TwiML::VoiceResponse.new
response.say "Connecting you to #{senator.name}"
response.dial(number: senator.phone, action: '/callcongress/goodbye')
response.to_s
end
route :get, :post, '/callcongress/goodbye' do
# Thank user & hang up.
content_type 'text/xml'
response = Twilio::TwiML::VoiceResponse.new
response.say("Thank you for using Call Congress!
Your voice makes a difference. Goodbye.")
response.hangup
response.to_s
end
def collect_zip
# Prompt user for zip code.
content_type 'text/xml'
response = Twilio::TwiML::VoiceResponse.new
response.say "If you wish to call your senators, please
enter your 5-digit zip code."
response.gather(numDigits: 5,
action: '/callcongress/state-lookup',
method: 'POST')
response.to_s
end
def call_senators(state)
# Method connecting caller to both of their senators.
senators = State.get_senators(state)
content_type 'text/xml'
first_call = senators[0]
second_call = senators[1]
response = Twilio::TwiML::VoiceResponse.new
response.say("Connecting you to #{first_call.name}. "
"After the senator's office ends the call, you will "
"be re-directed to #{second_call.name}")
response.dial(number: first_call.phone,
action: "/callcongress/call-second-senator/#{second_call.id}")
response.to_s
end
end
end
```
We’ll start our TwiML response by reading a welcome message to the caller with <Say>. Then we use <Gather> to ask the user to confirm their state of residence by pressing 1 or 2.
Once Twilio gathers this information, it will POST the caller’s input to our route specified on the action parameter so that we can better route the user through our application.
Handle a Missing State
If for some reason the inbound request to Twilio doesn’t contain a fromState value, we need to get a little more information from the caller before we proceed.
This code should look familiar to you. If we don’t detect a fromState we utilize <Gather> as we <Say> a message that asks for the caller’s zip code. This time we accept 5 digits (the length of a zip code) and trigger a state lookup by zip code.
Connect the Caller to their First Senator
Now that we know our caller’s state of residence, we can look up their senators and forward the call to the appropriate phone number.
Similar to the previous route, we <Say> a brief message to tell the caller that they’re being connected to a senator. Then, we <Dial> the first senator, making sure to add an action that will route the caller back to our application when the first call ends.
The action attribute is great for redirecting a call in progress and is the backbone of our call forwarding use case.
However, it’s important to note that the action will only execute after the dialed party (in our case, the caller’s senator) ends the call. Twilio will continue to forward the original caller but they must stay on the line throughout the entire process.
Forward to the Next Senator and End the Call
Once the first senator ends the call with our user, the caller is forwarded to their second state senator. Just as we did in the previous route, we’ll include an action attribute that redirects the caller to a final bit of TwiML.
Once the call with the second senator ends our user will hear a short message thanking them for their call. We then end the call with <Hangup>.
Where to Next?
That’s it! You should be able to start your development server with ngrok, dial your Twilio number, and be routed to your senators!
But wait… this isn’t actually your senator’s phone number, remember? We seeded our sample application’s database with some placeholder phone numbers with lightweight TwiML endpoints, so there’s still some work to be done to flesh out this application before it’s production-ready.
If your production case matches our demo's, ProPublica’s API grants access to a wealth of government data, including senators’ states and phone numbers. You may find yourself inspired to build out even more functionality for your civically engaged users.
Interested in building something even bigger? See how twilio.org is helping people use messaging, voice, and video to advance their causes by connecting people and resources around the world.
Whatever your use case, we hope you feel empowered to use what you've learned here to seamlessly forward your users' calls.
