Build a Simple Call Center With Laravel Tall Stack and Twilio Programmable Voice

In this tutorial, we will create a minimalistic call center application with Laravel and Twilio. The application will allow one call center agent to log in, accept incoming calls from a Twilio line, reject calls, and toggle their availability status.

Prerequisites

Before we get started, here are some prerequisites:

Let's get started!

Install Laravel

First, create a new Laravel project and change into the directory by running the following commands in your terminal:

composer create-project --prefer-dist laravel/laravel call-center
cd call-center

Set the required environment variables

Next, you need to add the TWILIO_ACCOUNT_SID and TWILIO_AUTH_TOKEN to your .env file. First, add the following to the end of .env.

TWILIO_ACCOUNT_SID=<<your_twilio_account_sid>>
TWILIO_AUTH_TOKEN=<<your_twilio_account_auth_token>>

You can find your Twilio Account SID and Auth Token in the Twilio dashboard. Retrieve them and set the values in place of the respective placeholders.

Next, update the database-related environment variables in .env to create and use a SQLite database, by updating them to match the following configuration, replacing <<path/to/your/database/file/callcenter.sqlite3>> with the absolute path to your database file, such as /opt/callcenter.sqlite3. The file will be created and initialised when the migrations are run.

DB_CONNECTION=sqlite
DB_HOST=
DB_PORT=
DB_DATABASE=<<path/to/your/database/file/callcenter.sqlite3>>
DB_USERNAME=
DB_PASSWORD=
DB_FOREIGN_KEYS=true

Install Twilio SDK

Next, install the Twilio PHP Helper library as a dependency by running the following command:

composer require twilio/sdk

Add authentication with Laravel Breeze

A typical call center application would require agents to log in. Let's implement a simple authentication using Laravel Breeze by installing it with the following command:

composer require laravel/breeze --dev

After installation, scaffold the authentication for your application by executing the following set of commands:

composer require laravel/breeze --dev
php artisan breeze:install
php artisan migrate
npm install
npm run dev

When prompted, select the appropriate options as shown below:

The SQLite database does not exist: database/callcenter.sqlite3.

Would you like to create it? (yes/no) [no]
❯ yes

Which stack would you like to install?
  blade ............................................................................................................... 0
  react ............................................................................................................... 1
  vue ................................................................................................................. 2
  api ................................................................................................................. 3
❯ blade

Would you like to install dark mode support? (yes/no) [no]
❯ no

Would you prefer Pest tests instead of PHPUnit? (yes/no) [no]
❯ no

After that, in a separate terminal, launch the application using the command below.

php artisan serve

With your application running, open your preferred browser and navigate to http://localhost:8000, where the page will be displayed similar to the screenshot below. If there is already a service listening on port 8000, the application will be served on a different port.

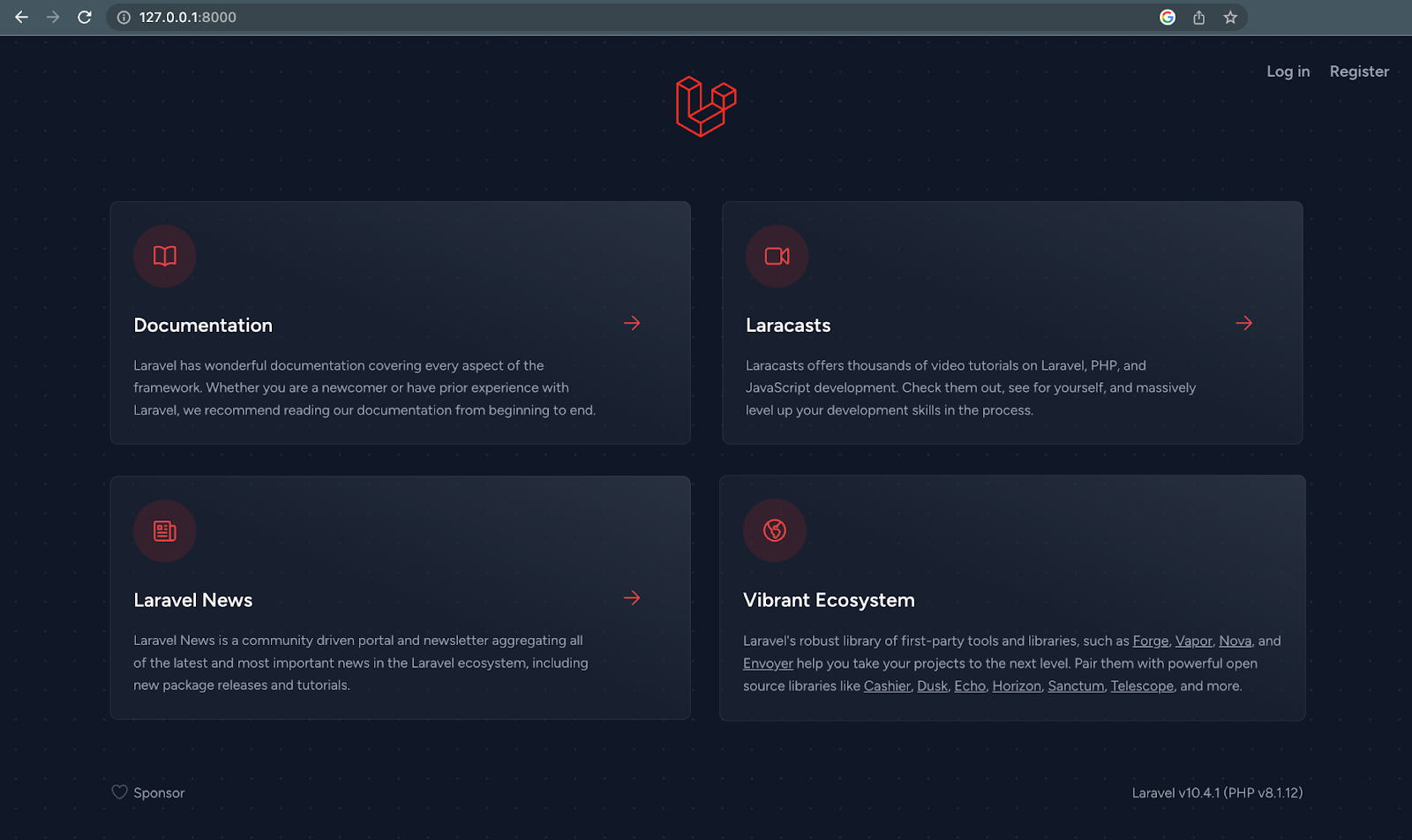

The default Laravel route

Add some TwiML

Twilio TwiML (Twilio Markup Language) is an XML-based language used by Twilio to describe how to handle and respond to incoming voice and SMS messages. TwiML is used to build voice and SMS applications and enables developers to create sophisticated call flows, interactive voice response (IVR) systems, and other complex communication workflows that integrate with other web services.

With TwiML, developers can specify how Twilio should interact with their application or caller, such as when a user dials their Twilio phone number.

For example, the code block below instructs Twilio to say “Hello World” when someone dials a Twilio phone number.

<?xml version="1.0" encoding="UTF-8"?>
<Response>
    <Say>Hello, world!</Say>
</Response>

You can create a TwiML response using the Twilio PHP Helper Library. It provides a fluent interface for building TwiML responses and allows developers to easily create dynamic responses based on user input.

With it, you can create a new TwiML response, specify the actions to take in response to incoming messages or calls, and then return the TwiML response as an XML document.

Here is an example that would generate a TwiML to say "Hello World” when a call is received.

<?php

require_once './vendor/autoload.php';

use Twilio\TwiML\VoiceResponse;

$response = new VoiceResponse();
$response->say('Hello World');

echo $response;

The TwiML documentation is very rich and contains more details on all the TwiML verbs and nouns and how they can be nested. With that said, Let's continue building our call center application.

Handle incoming calls with Livewire

Laravel Livewire is a Laravel package that allows you to build dynamic user interfaces without writing any JavaScript code. In the next steps, we'll create a Livewire component that will handle incoming calls to our Twilio phone number.

To install Livewire and create a new Livewire component, run the following commands in a new terminal or terminal tab:

composer require livewire/livewire
php artisan make:livewire CallFromQueue

The component will be named CallFromQueue and created in the app/Http/Livewire directory. It will also have a view named call-from-queue in the resources/views/livewire directory.

Open app/Http/Livewire/CallFromQueue.php and replace its contents with the following code:

<?php

namespace App\Http\Livewire;

use Twilio\TwiML\VoiceResponse;
use Twilio\Rest\Client;
use Livewire\Component;

class CallFromQueue extends Component
{
    public $agentAvailable = true;

    public function toggleAgentAvailability()
    {
        $this->agentAvailable = !$this->agentAvailable;
    }

    public function handleIncomingCall()
    {
        try {
            if (!$this->agentAvailable) {
                $response->say(
                    "I'm sorry, our agent is currently unavailable. Please try again later."
                );
                return $response;
            }
            $response = new VoiceResponse();
            $response->say(
                "Thanks for reaching out. You have been added to a queue. An agent will get to you shortly"
            );
            $response->enqueue('support', ['url' => 'about_to_connect.xml']);
            return response($response)->header('Content-Type', 'text/xml');
        } catch (TwimlException $e) {
            return $e->getCode();
        }
    }

    public function agentCallForward()
    {
        $client = new Client(
            getenv("TWILIO_ACCOUNT_SID"),
            getenv("TWILIO_AUTH_TOKEN")
        );

        $call = $client->calls->create(
            "<<CALLCENTER_AGENT_PHONE_NUMBER>>",
            "<<TWILIO_PHONE_NUMBER>>",
            ['url' => 'your_ngrok_url/call-forward']
        );
    }

    public function agentEndCall()
    {
        $response = new VoiceResponse();
        $response->say(
            "I'm sorry, our agent is currently unavailable. Please try again later."
        );
        $response->hangup();
        return $response;
    }

    public function callFromQueue()
    {
        try {
            $response = new VoiceResponse();
            $dial = $response->dial();
            $dial->queue('support');
            return $response;
        } catch (TwimlException $e) {
            return $e->getCode();
        }
    }
    public function render()
    {
        return view('livewire.call-from-queue');
    }
}

The class uses Twilio's API to handle incoming calls and forwards them to a call center agent. Let's dive into the details of each method in the class.

  • toggleAgentAvailability(): This toggles the availability of the call center agent to take a call by changing the value of the $agentAvailable variable between true and false.
  • handleIncomingCall(): This method is responsible for handling incoming calls. It first checks if the agent is available. If so, it responds with a TwiML voice welcoming the caller and adds the caller to a queue named support using the <queue> noun. If the agent is not available, it responds with a TwiML <say> verb saying that the agent is unavailable and ends the call.
  • agentCallForward(): This method uses Twilio's call API to forward incoming calls from the Twilio phone number to the call center agent's phone number. When a user calls the Twilio line, it creates a new instance of Twilio's Client class and calls the create() method, which uses the TWILIO_ACCOUNT_SID and TWILIO_AUTH_TOKEN values pulled in from .env, to initiate a call forward to the call center agent. It forwards the agent's phone number, the Twilio phone number, and a URL to the create() method. The URL points to the callFromQueue() method which instructs Twilio to dial the next caller in the queue. To follow along, replace CALLCENTER_AGENT_PHONE_NUMBER,  and TWILIO_PHONE_NUMBER placeholders with the respective phone numbers in your application.
  • agentEndCall(): This method uses the <hangup> TwiML verb to end the call. It responds with a TwiML message saying that the agent is currently unavailable and ends the call.
  • callFromQueue(): This method uses the <dial> noun to place a call to the call center agent. It is called when Twilio dials the next caller from the queue. It responds with a TwiML message that dials the caller's phone number and connects them with the call center agent.
  • render(): This method is responsible for rendering the Livewire component view.

The try/catch statement logs errors to your terminal (if there are any), including the HTTP status code. That can be helpful when debugging.

Create a Livewire View

Next, replace the contents of the call-from-queue.blade.php view in the resources/views/livewire directory with the following code.

<div>
    <h1 class="text-4xl font-bold text-gray-800 mb-4">Call Center</h1>
    <div class="my-4 flex justify-between">
        <div>
            @if ($agentAvailable)
            <button class="p-4 bg-red-500 text-white rounded-md" wire:click="toggleAgentAvailability">Make agent unavailable</button>
        @else
            <button class="p-4 bg-green-500 text-white rounded-md" wire:click="toggleAgentAvailability">Make agent available</button>
        @endif
        </div>
    </div>

    <hr class="py-4">
    <div class="flex justify-between">
        @if ($agentAvailable)
            <button class="p-4 bg-green-500 text-white rounded-md" wire:click="agentCallForward">Accept call</button>
            <button class="p-4 bg-red-500 text-white rounded-md" wire:click="agentEndCall">Reject call</button>
        @endif
    </div>
</div>

If the agent is available, a red button labeled "Make agent unavailable" is displayed. Otherwise, a green button labeled "Make agent available" is displayed. When either of the buttons is clicked, the toggleAgentAvailability method in the Livewire controller is called, toggling the value of $agentAvailable.

If the agent is available, two more buttons are displayed: a green "Accept call" button which calls the agentCallForward() method in the Livewire controller when clicked, and the red "Reject call" button which calls the agentEndCall() method. These methods are responsible for forwarding or ending the call.

Overall, the code provides a simple user interface for the Call Center application, allowing the agent to toggle their availability and respond to incoming calls. The use of Livewire allows for seamless updates to the view as the agent's availability changes, without requiring a page refresh.

Next, we need to import the Livewire component into the application's dashboard. Head over to resources/views/dashboard.blade.php and modify the contents of the page like so.

<x-app-layout>
    <x-slot name="header">
        <h2 class="font-semibold text-xl text-gray-800 leading-tight">
            {{ __('Dashboard') }}
        </h2>
    </x-slot>
    <div class="py-12">
        <div class="max-w-7xl mx-auto sm:px-6 lg:px-8">
            <div class="bg-white overflow-hidden shadow-sm sm:rounded-lg">
                <div class="p-6 text-gray-900">
                   <livewire:call-from-queue/>
                </div>
            </div>
        </div>
    </div>
</x-app-layout>

Add the required routes

Next, we need to add two routes, /call for the handleIncomingCall() method and /call-forward for the callFromQueue() method. Laravel Breeze already generated routes protected with the auth middleware in routes/web.php file. So modify the contents of this file by adding the following at the bottom of the file.

hl_lines="3,4"
…
Route::middleware('auth')->group(function () {
   …
    Route::any('/call', [App\Http\Livewire\CallFromQueue::class, 'handleIncomingCall']);
    Route::any('/call-forward', [App\Http\Livewire\CallFromQueue::class, 'callFromQueue']);
});

Make the application publicly available on the internet

We need to route all phone calls into our Twilio line to our application. To achieve this, we need a live URL for our Twilio webhook configuration. Let's generate a URL using Ngrok by running the command below in a new terminal or terminal tab.

ngrok http 8000

It should generate a URL for your application in the terminal, similar to the image below.

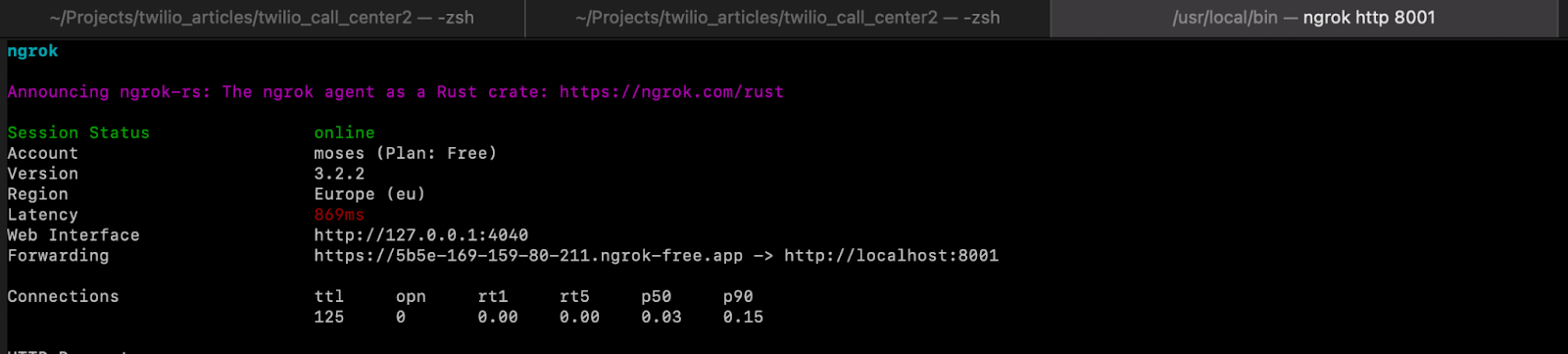

Ngrok output to the terminal

For the sake of this tutorial, we will not go into configuring Ngrok. If you've not used it before, this tutorial is a good place to start. Also, check out the official documentation.

Configure your Twilio phone number

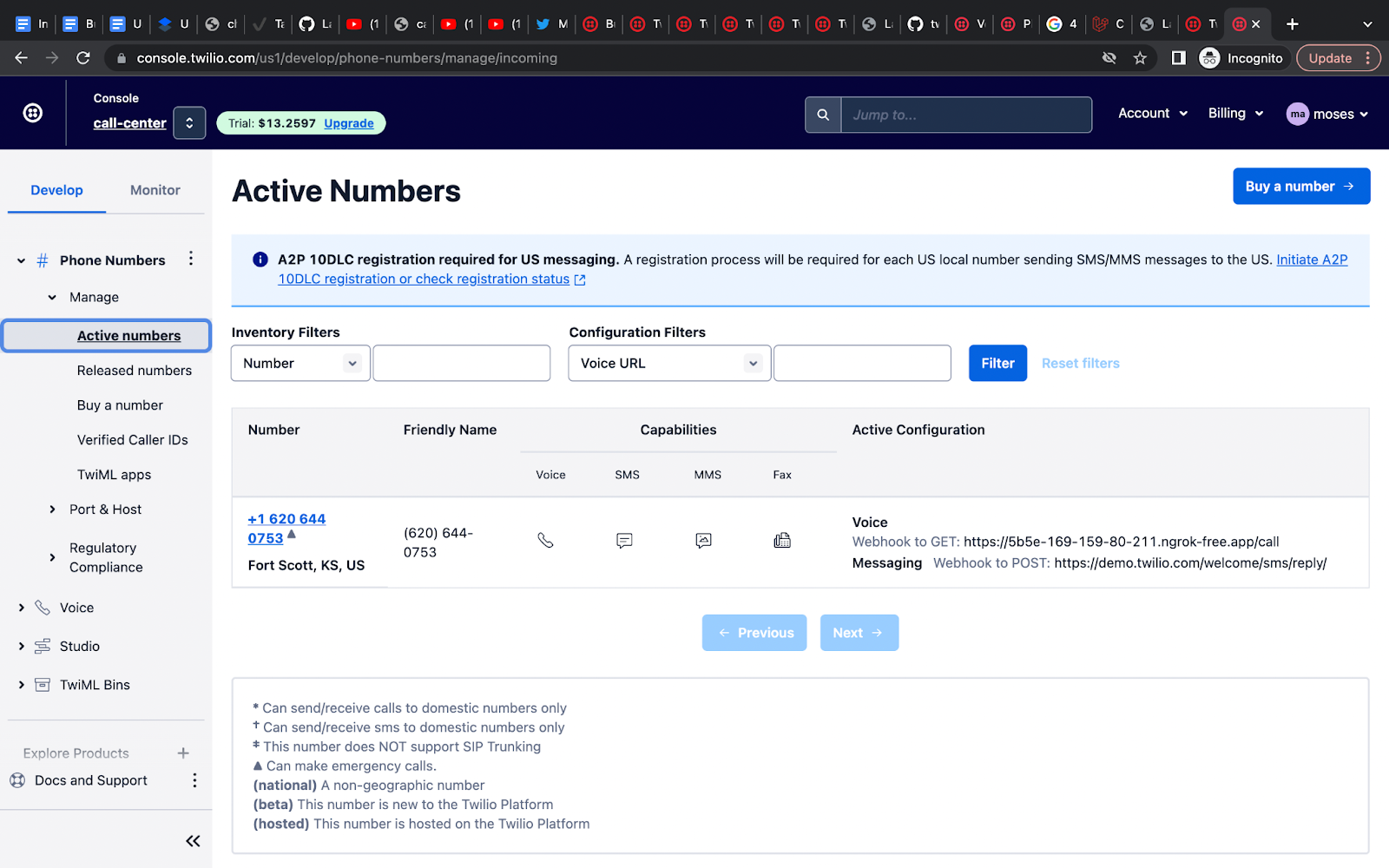

The Twilio Active Numbers section of the Twilio Console

To link your Twilio phone number to your Laravel application, first navigate to Phone Numbers > Manage > Active Numbers in your Twilio dashboard. You will see a list of available phone numbers. Click on the number you want to use. Then, in the Voice Configuration section:

  • Change the dropdown value of "A Call Comes In" to "Webhook"
  • Set your Ngrok Forwarding URL as the value of the "URL" field;
  • Ensure that the "HTTP" dropdown is set to "GET";
  • Click "Save configuration" at the bottom of the page

Once this is done, Twilio will make a GET request to your application's /call route when a call comes in.

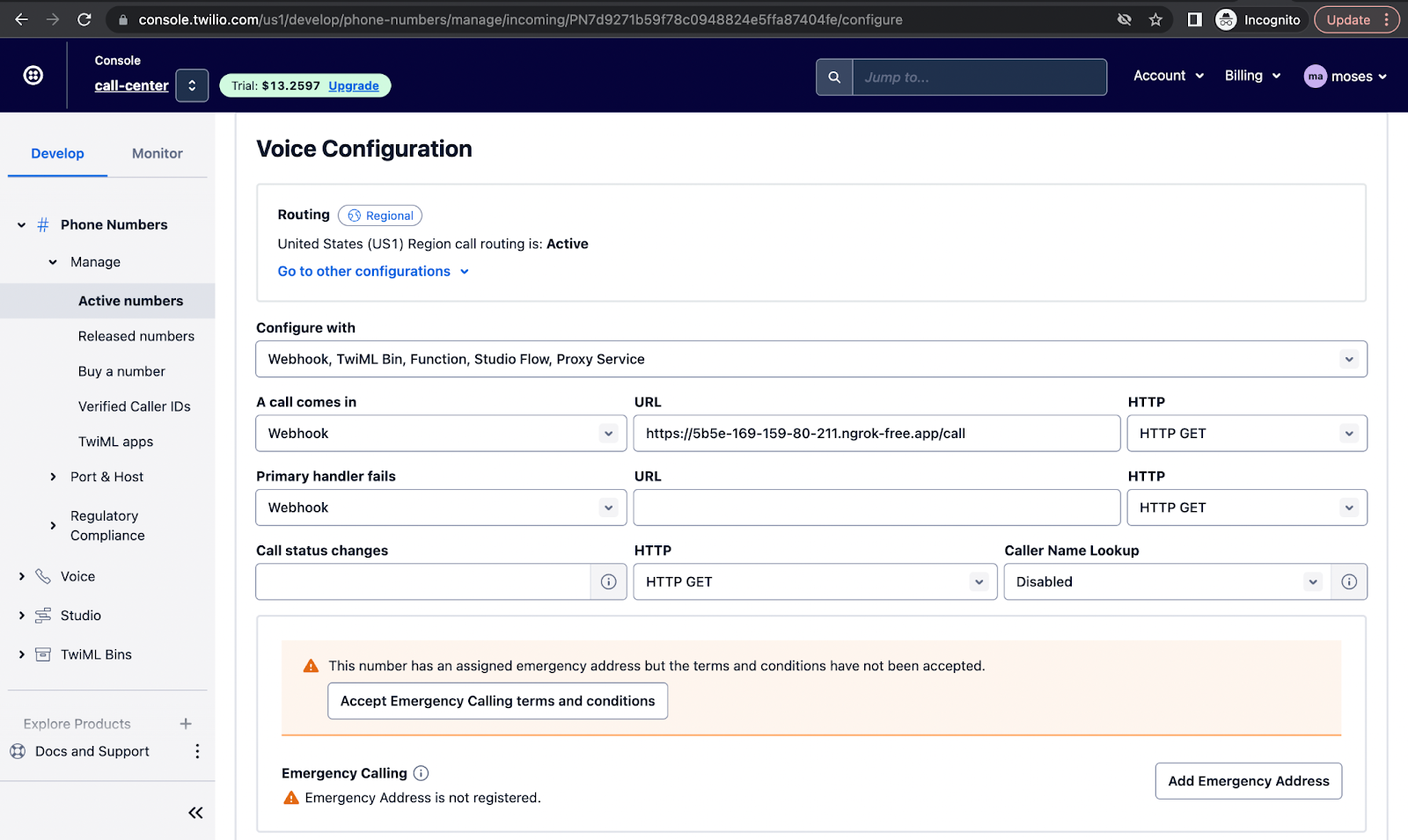

The Twilio Phone number Voice Configuration section of the Twilio Console

Test the application

With this setup in place, your Laravel application can now receive and process calls using Twilio TwiML commands written in PHP.

To test your call center application, you need to create an account in the application to access the dashboard and make a phone call to your Twilio phone number.

Ensure that the call is made with a different number from the number you configured in your application (callcenter_agent_phone_number) where calls will be forwarded to. This is important because if you use the same phone number, the call will be forwarded to the same number you are calling with and you won't be able to test the call forwarding and queueing functionality of your application.

Once you've made the call to your Twilio number, the call should be forwarded to the phone number you configured in your application and you should be able to accept or decline incoming calls.

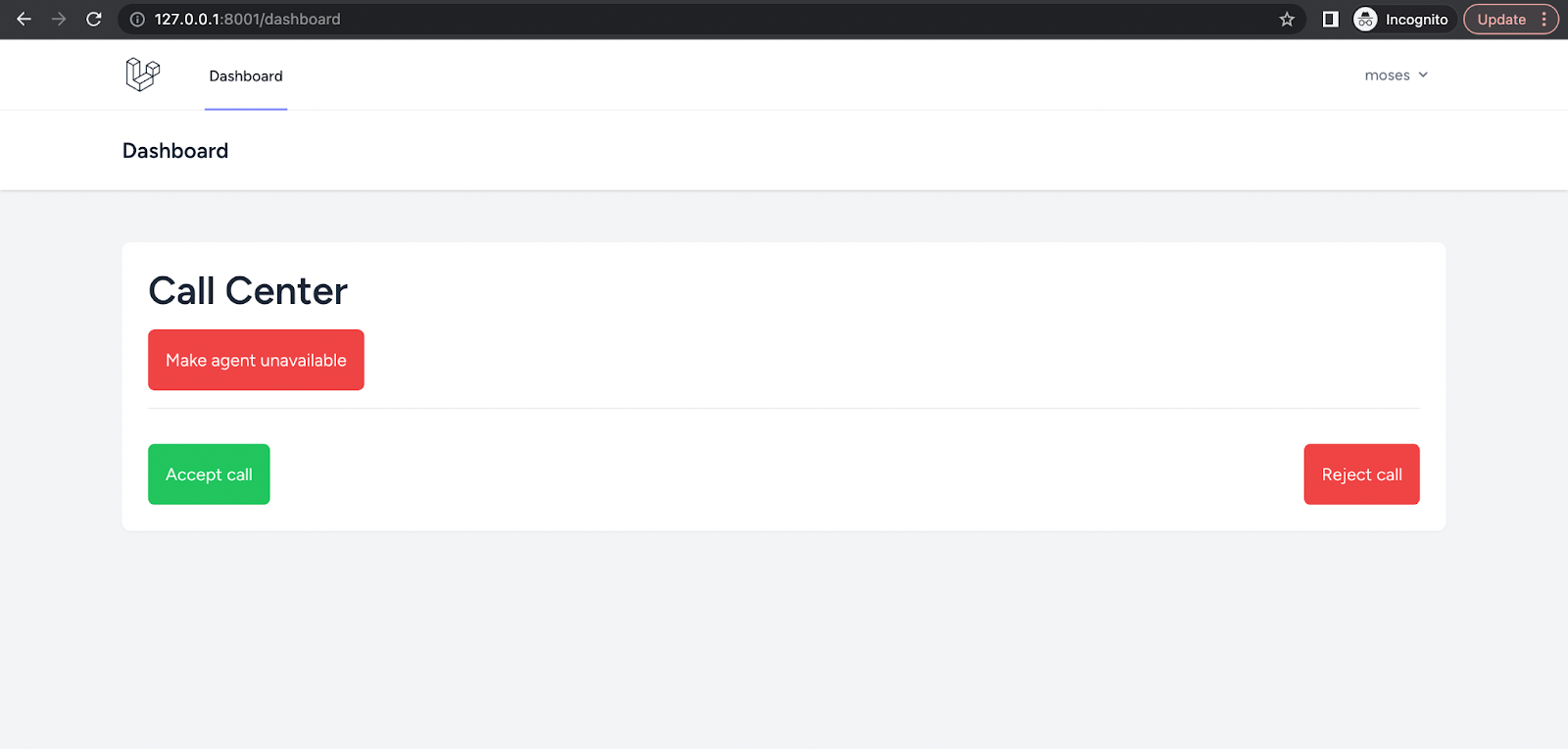

The application"s Call Center Dashboard

Conclusion

Great job! In this tutorial, we walked through the process of building a small call center application using the Laravel framework and Twilio's TwiML. We utilized several TwiML features including Say, Queue, Dial, and Hangup to handle the incoming calls and direct them to our agents.

By the end of the tutorial, we were able to successfully route incoming calls to our Twilio phone number to our call center application using Ngrok, and instruct Twilio on what to do with those calls through TwiML commands written in PHP.

We also added functionality to queue calls and redirect them to an available agent, enabling our application to handle multiple calls at once. This project serves as a great starting point for anyone looking to build their own call center application. With a strong foundation in TwiML and Laravel, the possibilities are endless

Moses Anumadu is a software developer and online educator who loves to write clean, maintainable code. I create technical content for technical audiences. You can find me here.

"Telephone Exchange" by Glen Bledsoe is licensed under CC BY 2.0.
