Web Scraping and Parsing HTML in Swift with Kanna and Alamofire

Time to read: 5 minutes

August 18, 2016
Written by
Sam Agnew
Twilion

3pvGWs9

When building iOS applications, we often need to work with data from various APIs. But sometimes the data you want access to isn’t nicely packaged and available via a REST API. In these cases we can scrape data directly from a web page using the Kanna Swift library.

Let’s build an iOS app that will display all of the upcoming metal shows in New York City by scraping the NYC Metal Scene website.

Getting started and setting up our project

Start off by cloning this repository which contains a starter project for us to build on. This project already has a storyboard set up with a UITableView that we will use to display the data we scrape. I am using XCode version 7.3 and Swift version 2.2, so make sure this code is compatible with your version of XCode and Swift.

Open your terminal and navigate to where you want this project to live. Enter the following command to clone it, you can also download a zip file of the project:

git clone git@github.com:sagnew/upcoming-metal-shows-ios.git && cd upcoming-metal-shows-ios && git checkout tutorial

We are going to use CocoaPods to install the dependencies we’ll need for this project. Install CocoaPods if you don’t have it:

sudo gem install cocoapods

In the repository that you cloned, there is a Podfile that lists which dependencies we need to install. These are Kanna for parsing HTML and Alamofire for making HTTP requests. Install them with the following command:

pod install

CocoaPods takes care of linking all of the frameworks for you by creating a new Xcode Workspace. From now on when opening the project in Xcode, you’ll have to use UpcomingMetalShows.xcworkspace instead of your normal Xcode project:

open UpcomingMetalShows.xcworkspace

You can check that Kanna and Alamofire were installed correctly by adding these two lines to ViewController.swift:

import Kanna
import Alamofire

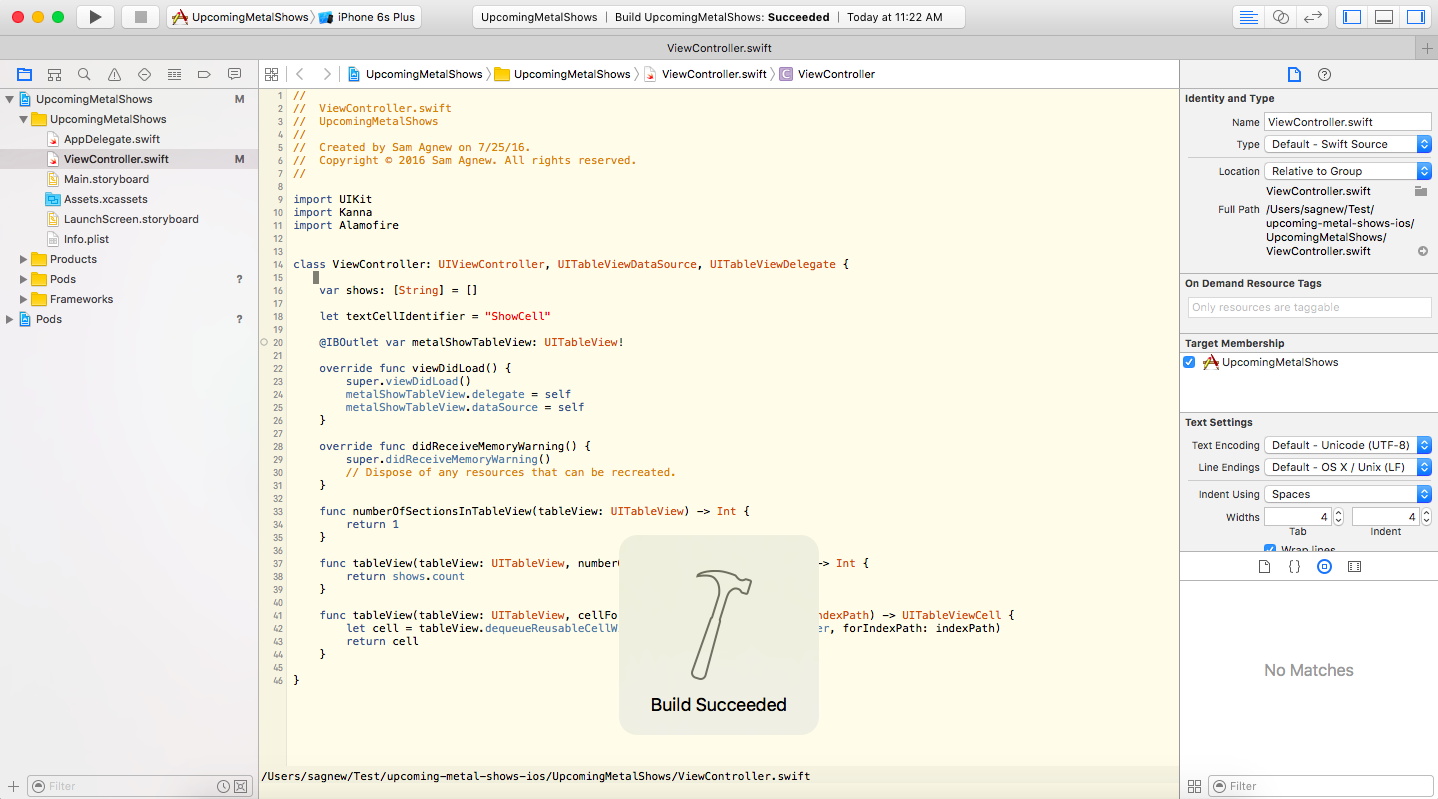

Press “Command-B.” to verify the project builds with those dependencies referenced.

Scraping data from a web page using Alamofire

With the starter project in place we can move on to the next step in building the app, making the HTTP request to acquire the concert data. In our case we want to make a request to http://nycmetalscene.com/ and scrape the HTML content that is returned.

Before making the request we have to configure our app to allow making an HTTP request to a non-secure website, or a website that is not accessible via HTTPS. Starting in iOS 9, Apple enabled App Transport Security which by default disallows requests to non-secure websites. To make our app work we will need to add an exception to this policy by editing the Info.plist file.

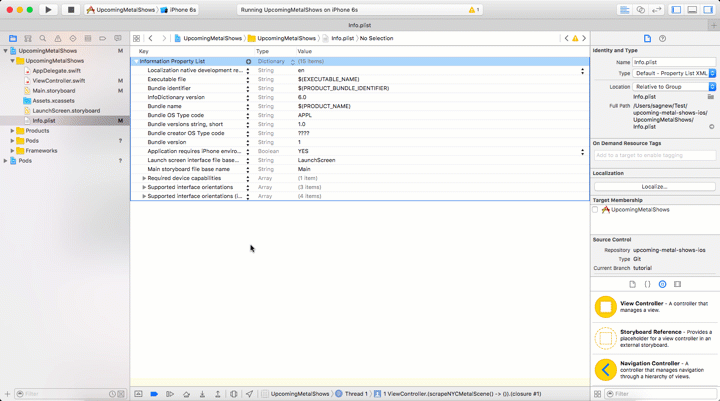

Open Info.plist, add a new Key to the Information Property List called App Transport Security Settings and set the Allow Arbitrary Loads value to YES as seen in this GIF:


With the exception in place we can grab HTML from the page we are trying to scrape. To do this, we need to send a GET request with Alamofire.

Open your ViewController.swift and add the following code to the ViewController class:

// Grabs the HTML from nycmetalscene.com for parsing.
func scrapeNYCMetalScene() -> Void {
    Alamofire.request("http://nycmetalscene.com").responseString { response in
        print("\(response.result.isSuccess)")
        if let html = response.result.value {
            self.parseHTML(html: html)
        }
    }
}

func parseHTML(html: String) -> Void {
    // Finish this next
}

The parseHTML(html: String) -> Void method will take the HTML from our GET request and use Kanna to make sense of it.

Trigger the loading of the data by adding a call to this new function at the end of viewDidLoad:

override func viewDidLoad() {
    super.viewDidLoad()
    metalShowTableView.delegate = self
    metalShowTableView.dataSource = self
    self.scrapeNYCMetalScene()
}

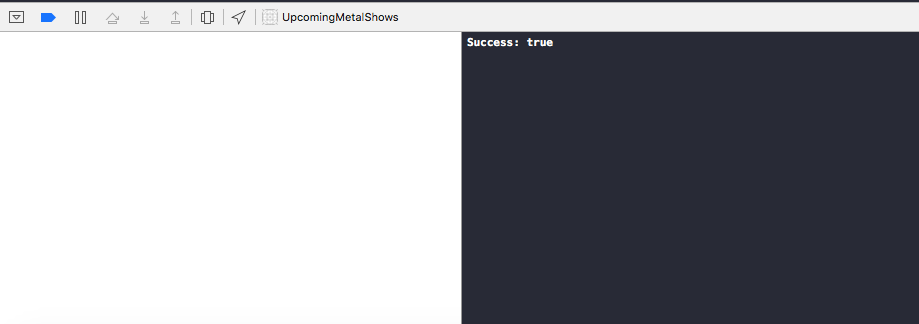

Now run the app again to see if the request is sent successfully

Screen Shot 2016-08-17 at 2.07.40 PM.png

Parsing scraped data with Kanna

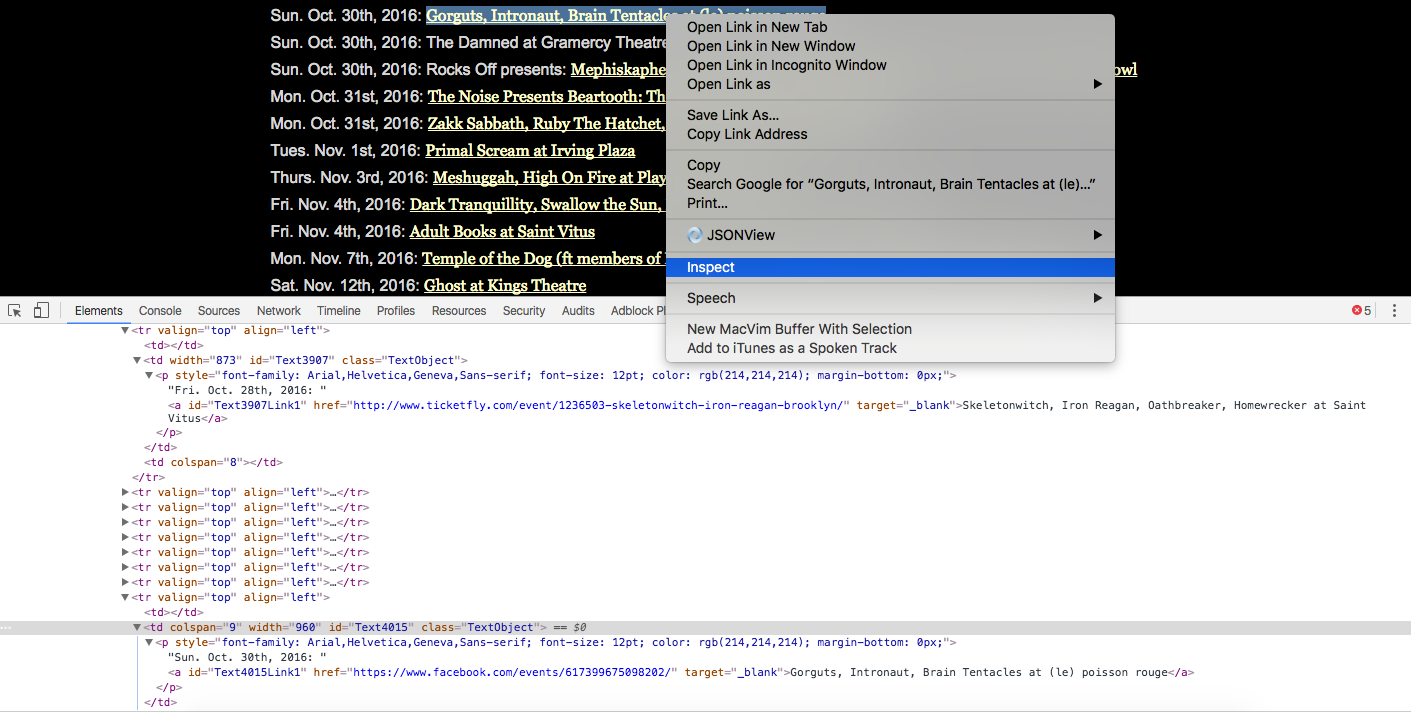

Before writing code to parse the content returned from the GET request, let’s first take a look at the HTML that’s rendered by the browser. Every web page is different, and sometimes getting data out of them requires a bit of pattern recognition and ingenuity.

In our case we want to grab all of the metal shows included in the markup.

Screen Shot 2016-08-16 at 1.51.01 PM.png

Each show exists in a td tag and has an ID of Text followed by some number. This is the first pattern we’ll use to grab the HTML elements that contain the show info.

Next, you may notice that every piece of text on the page follows that ID pattern, not just the shows. To extract just the text nodes for concerts, we will use a second regular expression to find text that begins with the first three letters of a weekday. This pattern indicates that the text is referring to a concert.

With the two patterns for extracting concert data we’re ready to parse the content. Using Kanna, developers can use CSS selectors or Xpath queries to navigate through the HTML in a document. Let’s use CSS selectors with a regular expression to find all td nodes that have an ID beginning with “Text.”  Next we’ll loop over those results and apply the day-of-week regular expression.

Edit the parseHTML method to contain the following example code that will print out the text for all of the shows on the page:

func parseHTML(html: String) -> Void {
    if let doc = Kanna.HTML(html: html, encoding: String.Encoding.utf8) {

        // Search for nodes by CSS selector
        for show in doc.css("td[id^='Text']") {

            // Strip the string of surrounding whitespace.
            let showString = show.text!.trimmingCharacters(in: CharacterSet.whitespacesAndNewlines)

            // All text involving shows on this page currently start with the weekday.
            // Weekday formatting is inconsistent, but the first three letters are always there.
            let regex = try! NSRegularExpression(pattern: "^(mon|tue|wed|thu|fri|sat|sun)", options: [.caseInsensitive])

            if regex.firstMatch(in: showString, options: [], range: NSMakeRange(0, showString.characters.count)) != nil {
                shows.append(showString)
                print("\(showString)\n")
            }
        }
    }
}

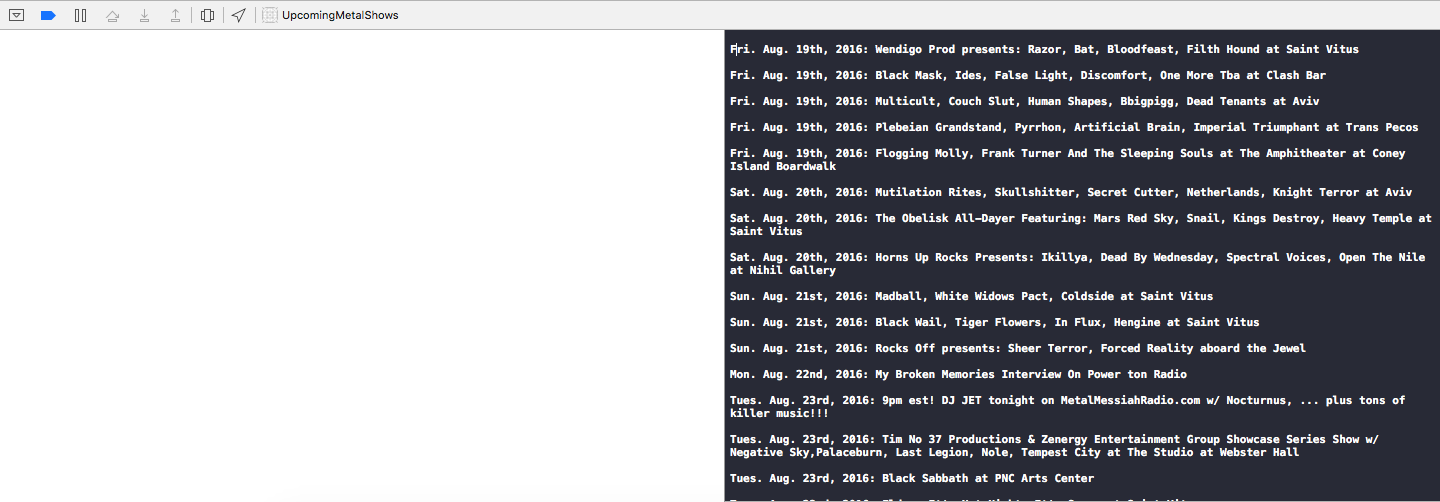

Run the app to see that it is printing out only the shows on the page and not all of the unnecessary text, similar what is shown in the following Xcode screenshot.

Screen Shot 2016-08-17 at 2.16.05 PM.png

Next, we will work on displaying this data in the mobile app.

Displaying the data that we scraped in a UITableView

Let’s display all of the shows in a UITableView so we have an actual app.

The sample project already has one added to the application and configured in Main.storyboard, as well as the required methods in ViewController.swift. All we need to do is link our data to this view.

We are using the shows array as the data source for the UITableView. Add a line to the end of our parseHTML function to make sure that the data in the UITableView is being loaded once we are done parsing the shows:

func parseHTML(html: String) -> Void {
    if let doc = Kanna.HTML(html: html, encoding: String.Encoding.utf8) {

        // Search for nodes by CSS selector
        for show in doc.css("td[id^='Text']") {

            // Strip the string of surrounding whitespace.
            let showString = show.text!.trimmingCharacters(in: CharacterSet.whitespacesAndNewlines)

            // All text involving shows on this page currently start with the weekday.
            // Weekday formatting is inconsistent, but the first three letters are always there.
            let regex = try! NSRegularExpression(pattern: "^(mon|tue|wed|thu|fri|sat|sun)", options: [.caseInsensitive])

            if regex.firstMatch(in: showString, options: [], range: NSMakeRange(0, showString.characters.count)) != nil {
                shows.append(showString)
                print("\(showString)\n")
            }
        }
    }
    self.metalShowTableView.reloadData()
}

We also need to define what data a cell in our table view contains. Replace the tableView(tableView: UITableView, cellForRowAtIndexPath indexPath: NSIndexPath) function with the following:

func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
    let cell = tableView.dequeueReusableCell(withIdentifier: textCellIdentifier, for: indexPath)

    let row = indexPath.row
    cell.textLabel?.text = shows[row]

    return cell
}

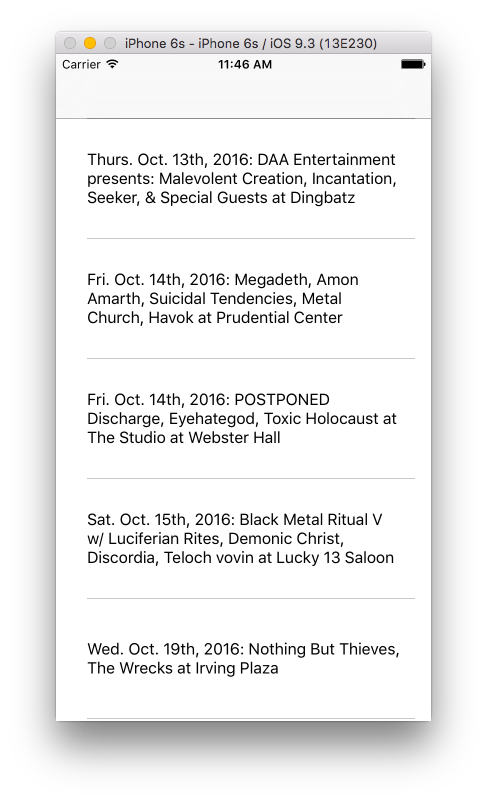

Now run the app and look at the list of upcoming metal shows in NYC

Screen Shot 2016-08-16 at 11.46.04 AM.png

Wow it looks like Megadeth, Amon Amarth, Suicidal Tendencies, Metal Church and Havok are all playing the same show in October! Sounds like a pretty sick lineup.

The vast expanse of the World Wide Web

Now you can build apps using data that isn’t neatly available to you in the format of a publicly accessible API by just grabbing it from the Internet.

Beware that changes to a web page’s HTML might break your app, so make sure to keep your code up to date.

If you want to build with something that doesn’t require scraping data from old web pages, check out Twilio’s Video and IP Messaging iOS SDKs for adding video conferencing and real time chat to your Swift applications.

I’m looking forward to see what you build now that you have access to all of the data on any web page. Feel free to reach out for any questions or to show off what you built:
