Warm Transfer with Java and Servlets

Time to read: 4 minutes

January 10, 2017
Written by
Samuel Mendes
Contributor
Opinions expressed by Twilio contributors are their own
Reviewed by
Paul Kamp
Twilion
Brianna DelValle
Twilion
Kat King
Twilion
David Prothero
Twilion

warm-transfer-java-servlets

Have you ever been disconnected from a support call while being transferred to someone else?

Warm transfer eliminates this problem. Using Twilio powered warm transfers your agents will have the ability to dial in another agent in real-time.

Here is how it works at a high level:

  1. The first agent becomes available when he/she connects through the web client.
  2. The second agent also becomes available when he/she connects through the web client.
  3. A client calls our support line.
  4. The client stays on hold while the first agent joins the call.
  5. While the first agent is on the phone with the client, he/she can dial a second agent into the call.
  6. Once the second agent is on the call, the first one can disconnect from it. The client and the second agent stay on the call.

Let's get started! Clone the sample application from Github.

Set Up the Voice Webhook

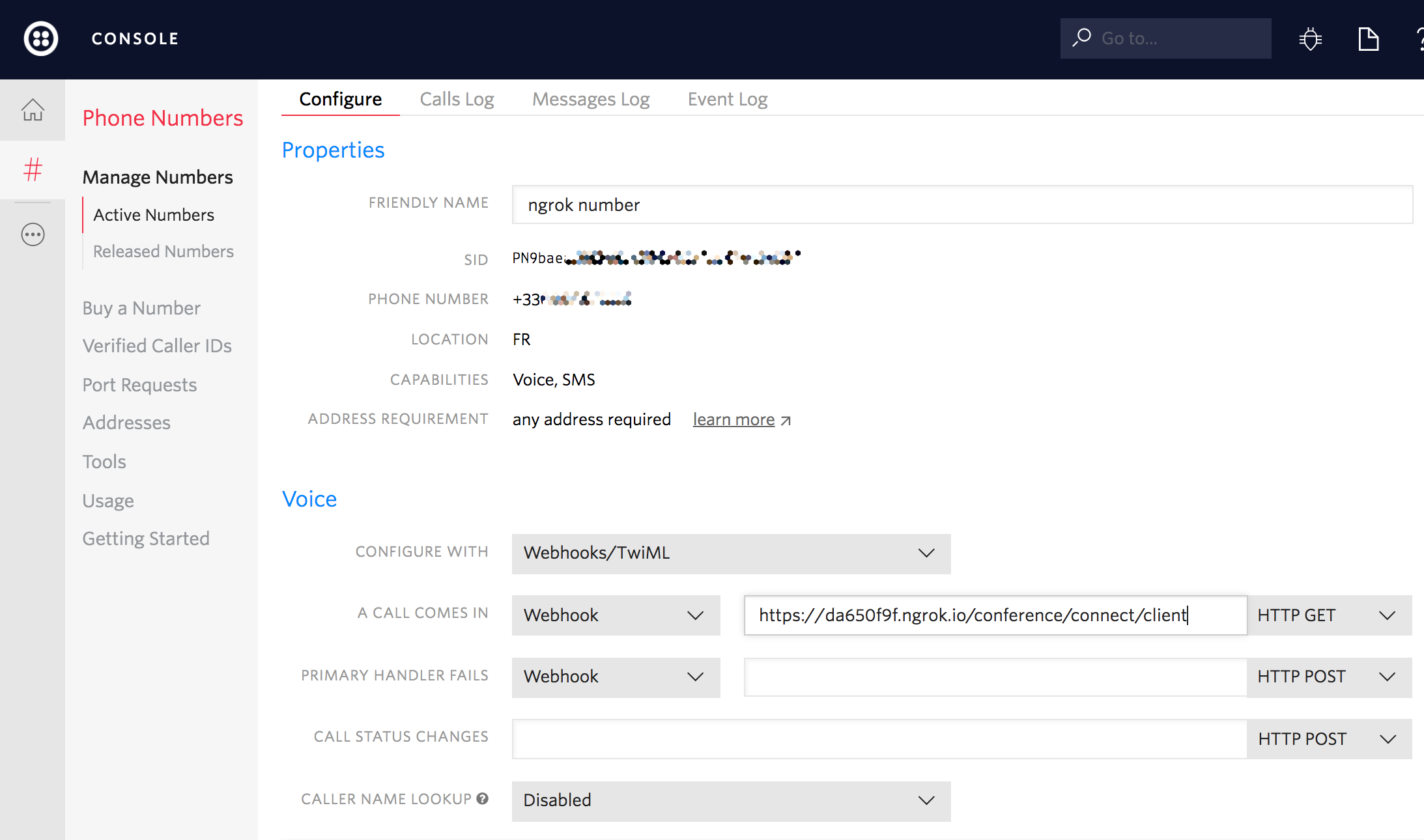

First let's configure the voice webhook for the Twilio number that customers will dial when they want to talk to a support agent.

Twilio Console for Warm Transfer

This should be the public-facing URL or your app in production: http://***.ngrok.io/conference/connect/client

Editor: this is a migrated tutorial. Clone the original code from https://github.com/TwilioDevEd/warm-transfer-servlets/

package com.twilio.warmtransfer.servlets.guice;

import com.google.inject.Provides;
import com.google.inject.name.Named;
import com.google.inject.servlet.ServletModule;
import com.twilio.http.TwilioRestClient;
import com.twilio.warmtransfer.servlets.*;
import com.twilio.warmtransfer.utils.TwilioAuthenticatedActions;
import io.github.cdimascio.dotenv.Dotenv;


public class WarmTransferServletModule extends ServletModule {
    Dotenv dotenv = Dotenv.load();

    @Override
    public void configureServlets() {
        serve("/").with(IndexServlet.class);
        serve("/token").with(TokenServlet.class);
        serve("/conference/wait").with(ConferenceWaitServlet.class);
        serve("/conference/connect/client").with(ConnectClientServlet.class);
        serve("/conference/connect/agent*").with(ConnectAgentServlet.class);
        serve("/conference/call/agent2").with(CallAgentServlet.class);

        bind(TwilioAuthenticatedActions.class);
    }

    @Provides
    public TwilioRestClient twilioRestClient() {
        return new TwilioRestClient.Builder(
                dotenv.get("TWILIO_ACCOUNT_SID"), dotenv.get("TWILIO_AUTH_TOKEN"))
                .build();
    }

    @Named("env")
    @Provides
    public Dotenv env() {
        return dotenv;
    }
}

Awesome, now you've got a webhook in place.  Next up, we'll look at some of the code.

Connecting an Agent

Here you can see all front-end code necessary to connect an agent using Twilio's Voice Web Client.

We essentially need three things to have a live web client:

  • A capability token (provided by our app)
  • A unique identifier (string) for each agent
  • Event listeners to handle different Twilio-triggered events
$(function() {
  var currentAgentId;
  var currentConnection;
  var $callStatus = $('#call-status');
  var $connectAgent1Button = $("#connect-agent1-button");
  var $connectAgent2Button = $("#connect-agent2-button");

  var $answerCallButton = $("#answer-call-button");
  var $hangupCallButton = $("#hangup-call-button");
  var $dialAgent2Button = $("#dial-agent2-button");

  $connectAgent1Button.on('click', { agentId: 'agent1' }, agentClickHandler);
  $connectAgent2Button.on('click', { agentId: 'agent2' }, agentClickHandler);
  $hangupCallButton.on('click', hangUp);
  $dialAgent2Button.on('click', dialAgent2);

  function fetchToken(agentId) {
    $.post('token', {"agentId":agentId}, function(data) {
      currentAgentId = data.agentId;
      connectClient(data.token)
    }, 'json');
  }

  function connectClient(token) {
    Twilio.Device.setup(token);
  }

  Twilio.Device.ready(function (device) {
    updateCallStatus("Ready");
    agentConnectedHandler(device._clientName);
  });

  // Callback for when Twilio Client receives a new incoming call
  Twilio.Device.incoming(function(connection) {
    currentConnection = connection;
    updateCallStatus("Incoming support call");

    // Set a callback to be executed when the connection is accepted
    connection.accept(function() {
      updateCallStatus("In call with customer");
      $answerCallButton.prop('disabled', true);
      $hangupCallButton.prop('disabled', false);
      $dialAgent2Button.prop('disabled', false);
    });

    // Set a callback on the answer button and enable it
    $answerCallButton.click(function() {
      connection.accept();
    });
    $answerCallButton.prop('disabled', false);
  });

  /* Report any errors to the call status display */
  Twilio.Device.error(function (error) {
    updateCallStatus("ERROR: " + error.message);
    disableConnectButtons(false);
  });

  // Callback for when the call finalizes
  Twilio.Device.disconnect(function(connection) {
    callEndedHandler(connection.device._clientName);
  });

  function dialAgent2() {
    $.post('/conference/call/agent2')
  }

  /* End a call */
  function hangUp() {
    Twilio.Device.disconnectAll();
  }

  function agentClickHandler(e) {
    var agentId = e.data.agentId;
    disableConnectButtons(true);
    fetchToken(agentId);
  }

  function agentConnectedHandler(agentId) {
    $('#connect-agent-row').addClass('hidden');
    $('#connected-agent-row').removeClass('hidden');
    updateCallStatus("Connected as: " + agentId);

    if (agentId === 'agent1') {
      $dialAgent2Button.removeClass('hidden').prop('disabled', true);
    }
    else {
      $dialAgent2Button.addClass('hidden')
    }
  }

  function callEndedHandler(agentId) {
    $dialAgent2Button.prop('disabled', true);
    $hangupCallButton.prop('disabled', true);
    $answerCallButton.prop('disabled', true)
    updateCallStatus("Connected as: " + agentId);
  }

  function disableConnectButtons(disable) {
    $connectAgent1Button.prop('disabled', disable);
    $connectAgent2Button.prop('disabled', disable);
  }

  function updateCallStatus(status) {
    $callStatus.text(status);
  }
});

In the next step we'll take a closer look at capability token generation.

Generate a Capability Token

In order to connect the Twilio Voice Web Client we need a capability token.

To allow incoming connections through the web client an identifier must be provided when generating the token.

package com.twilio.warmtransfer.utils;


import com.google.inject.Inject;
import com.google.inject.name.Named;
import com.twilio.http.TwilioRestClient;
import com.twilio.jwt.client.ClientCapability;
import com.twilio.jwt.client.IncomingClientScope;
import com.twilio.rest.api.v2010.account.Call;
import com.twilio.type.PhoneNumber;
import io.github.cdimascio.dotenv.Dotenv;

import java.net.URI;

import static java.util.Arrays.asList;


public class TwilioAuthenticatedActions {
    private Dotenv dotenv;
    private String accountSid;
    private String authToken;
    private String twilioNumber;
    private TwilioRestClient twilioRestClient;

    @Inject
    public TwilioAuthenticatedActions(TwilioRestClient twilioRestClient,
            @Named("env") Dotenv env) {
        this(env);
        this.twilioRestClient = twilioRestClient;
    }

    TwilioAuthenticatedActions(Dotenv env) throws RuntimeException {
        this.dotenv = env;
        if (env.get("TWILIO_ACCOUNT_SID") != null && env.get("TWILIO_AUTH_TOKEN") != null
                && env.get("TWILIO_NUMBER") != null) {
            this.accountSid = env.get("TWILIO_ACCOUNT_SID");
            this.authToken = env.get("TWILIO_AUTH_TOKEN");
            this.twilioNumber = env.get("TWILIO_NUMBER");
        } else {
            throw new RuntimeException("TWILIO_ACCOUNT_SID, TWILIO_AUTH_TOKEN and TWILIO_NUMBER must be set on system environment.");
        }
    }

    public String getTokenForAgent(String agentName) {
        ClientCapability clientCapability = new ClientCapability.Builder(accountSid, authToken)
                .scopes(asList(new IncomingClientScope(agentName)))
                .build();

        return clientCapability.toJwt();
    }

    public String callAgent(final String agentId, final String callbackUrl) {
        Call call = Call.creator(new PhoneNumber("client:" + agentId),
                new PhoneNumber(twilioNumber),
                URI.create(callbackUrl)).create(twilioRestClient);
        return call.getSid();
    }
}

Next up let's see how to handle incoming calls.

Handle Incoming Calls

For this tutorial we used fixed identifier strings like agent1 and agent2, but you can use any generated string for your call center clients. These identifiers will be used to create outbound calls to the specified agent using the Twilio REST API.

When a client makes a call to our Twilio number the application receives a POST request asking for instructions. We'll use TwiML to instruct the client to join a conference room and the Twilio REST API client to start a call with the first agent, so he can join the same conference.

When providing instructions to the client, we also provide a callback waitUrl, which in our case is another end point of our application. This returns more TwiML to say welcome to the user, and also play some music while on hold. Take a look at the code here

We use the client's CallSid as the conference identifier. Since all participants need this identifier to join the conference, we'll need to store it in a database so that we can grab it when we dial the second agent in later.

package com.twilio.warmtransfer.servlets;

import com.google.inject.Inject;
import com.google.inject.Singleton;
import com.twilio.warmtransfer.services.ActiveCallsService;
import com.twilio.warmtransfer.utils.TwilioAuthenticatedActions;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

@Singleton
public class ConnectClientServlet extends BaseServlet {

    @Inject
    public ConnectClientServlet(TwilioAuthenticatedActions twilioAuthenticatedActions) {
        super(twilioAuthenticatedActions);
    }

    @Override
    public void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        String conferenceId = request.getParameter("CallSid");

        String callback = makeCallbackURI(request, "/conference/connect/agent1");
        twilioAuthenticatedActions.callAgent("agent1", callback);
        ActiveCallsService.saveNewConference("agent1", conferenceId);

        response.setContentType("text/xml");
        response.getWriter().write(generateConnectConference(conferenceId, false, true));
    }
}

Now let's see how to provide TwiML instructions to the client.

Providing TwiML Instruction For The Client

Here we create a VoiceResponse using its Builder, and it will contain a Dial verb with a Conference noun that will instruct the client to join a specific conference room.

package com.twilio.warmtransfer.utils;

import com.twilio.http.HttpMethod;
import com.twilio.twiml.TwiMLException;
import com.twilio.twiml.VoiceResponse;
import com.twilio.twiml.voice.Conference;
import com.twilio.twiml.voice.Dial;
import com.twilio.twiml.voice.Play;
import com.twilio.twiml.voice.Say;

public class TwimlBuilder {
    private VoiceResponse.Builder builder;

    public TwimlBuilder() {
        this.builder = new VoiceResponse.Builder();
    }

    public TwimlBuilder generateWait() throws TwiMLException {
        Say say = new Say.Builder("Thank you for calling. Please wait in line for a few seconds. An agent will be with you shortly.")
                .build();
        Play play = new Play.Builder("http://com.twilio.music.classical.s3.amazonaws.com/BusyStrings.mp3")
                .loop(0)
                .build();
        builder.say(say);
        builder.play(play);
        return this;
    }

    public TwimlBuilder generateConnectConference(String conferenceId, boolean startOnEnter, boolean endOnExit) throws TwiMLException {
        Dial dial = new Dial.Builder()
                .conference(new Conference.Builder(conferenceId)
                        .startConferenceOnEnter(startOnEnter)
                        .endConferenceOnExit(endOnExit)
                        .waitUrl("/conference/wait")
                        .waitMethod(HttpMethod.POST)
                        .build())
                .build();
        builder.dial(dial);
        return this;
    }

    public String toEscapedXML() {
        try {
            return this.builder.build().toXml();
        } catch (TwiMLException e) {
            throw new RuntimeException(e);
        }
    }
}

Next up, we will look at how to dial our first agent into the call.

Dialing the First Agent Into the Call

For our app we created a callAgent method to handle dialing our agents. This method uses Twilio's Sdk Call class to create a new call. The create static method receives the following parameters:

  1. To : The agent web client's identifier (agent1 or agent2)
  2. From: Your Twilio number
  3. Url : A URL to ask for TwiML instructions when the call connects

The create method returns an object which contains the execute method and the call to Twilio's API only happens when this execute method is called.

Once the agent answers the call in the web client, a request is made to the callback URL instructing this call to join the conference room where the client is already waiting.

package com.twilio.warmtransfer.utils;


import com.google.inject.Inject;
import com.google.inject.name.Named;
import com.twilio.http.TwilioRestClient;
import com.twilio.jwt.client.ClientCapability;
import com.twilio.jwt.client.IncomingClientScope;
import com.twilio.rest.api.v2010.account.Call;
import com.twilio.type.PhoneNumber;
import io.github.cdimascio.dotenv.Dotenv;

import java.net.URI;

import static java.util.Arrays.asList;


public class TwilioAuthenticatedActions {
    private Dotenv dotenv;
    private String accountSid;
    private String authToken;
    private String twilioNumber;
    private TwilioRestClient twilioRestClient;

    @Inject
    public TwilioAuthenticatedActions(TwilioRestClient twilioRestClient,
            @Named("env") Dotenv env) {
        this(env);
        this.twilioRestClient = twilioRestClient;
    }

    TwilioAuthenticatedActions(Dotenv env) throws RuntimeException {
        this.dotenv = env;
        if (env.get("TWILIO_ACCOUNT_SID") != null && env.get("TWILIO_AUTH_TOKEN") != null
                && env.get("TWILIO_NUMBER") != null) {
            this.accountSid = env.get("TWILIO_ACCOUNT_SID");
            this.authToken = env.get("TWILIO_AUTH_TOKEN");
            this.twilioNumber = env.get("TWILIO_NUMBER");
        } else {
            throw new RuntimeException("TWILIO_ACCOUNT_SID, TWILIO_AUTH_TOKEN and TWILIO_NUMBER must be set on system environment.");
        }
    }

    public String getTokenForAgent(String agentName) {
        ClientCapability clientCapability = new ClientCapability.Builder(accountSid, authToken)
                .scopes(asList(new IncomingClientScope(agentName)))
                .build();

        return clientCapability.toJwt();
    }

    public String callAgent(final String agentId, final String callbackUrl) {
        Call call = Call.creator(new PhoneNumber("client:" + agentId),
                new PhoneNumber(twilioNumber),
                URI.create(callbackUrl)).create(twilioRestClient);
        return call.getSid();
    }
}

With that in mind, let's see how to add the second agent to the call.

Dialing the Second Agent Into the Call

When the client and the first agent are both in the call we are ready to perform a warm transfer to a second agent. The first agent makes a request and we look for his conferenceId needed to dial the second agent in. Since we already have a callAgent method we can simply call it to connect the second agent in.

package com.twilio.warmtransfer.servlets;

import com.google.inject.Inject;
import com.google.inject.Singleton;
import com.twilio.warmtransfer.services.ActiveCallsService;
import com.twilio.warmtransfer.utils.TwilioAuthenticatedActions;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;


@Singleton
public class CallAgentServlet extends BaseServlet {

    @Inject
    public CallAgentServlet(TwilioAuthenticatedActions twilioAuthenticatedActions) {
        super(twilioAuthenticatedActions);
    }

    @Override
    public void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        String agentId = "agent2";
        String conferenceId = ActiveCallsService.getConferenceFromAgentID("agent1");
        String callbackUrl = makeCallbackURI(request, "/conference/connect/" + agentId);
        twilioAuthenticatedActions.callAgent(agentId, callbackUrl);
        ActiveCallsService.saveNewConference(agentId, conferenceId);
    }
}

Next up, we'll look at how to handle the first agent leaving the call.

The First Agent Leaves the Call

When the three participants have joined the same call, the first agent has served his purpose. Now he can drop the call, leaving agent two and the client to have a pleasant conversation.

It is important to notice the differences between the TwiML each one of the participants received when joining the call. Both, agent one and two, have startConferenceOnEnter set to true. This means the conference will start when any of them joins the call. For the client calling and for agent two endConferenceOnExit is set to true. This causes the call to end when either of these two participants drops the call.

package com.twilio.warmtransfer.utils;

import com.twilio.http.HttpMethod;
import com.twilio.twiml.TwiMLException;
import com.twilio.twiml.VoiceResponse;
import com.twilio.twiml.voice.Conference;
import com.twilio.twiml.voice.Dial;
import com.twilio.twiml.voice.Play;
import com.twilio.twiml.voice.Say;

public class TwimlBuilder {
    private VoiceResponse.Builder builder;

    public TwimlBuilder() {
        this.builder = new VoiceResponse.Builder();
    }

    public TwimlBuilder generateWait() throws TwiMLException {
        Say say = new Say.Builder("Thank you for calling. Please wait in line for a few seconds. An agent will be with you shortly.")
                .build();
        Play play = new Play.Builder("http://com.twilio.music.classical.s3.amazonaws.com/BusyStrings.mp3")
                .loop(0)
                .build();
        builder.say(say);
        builder.play(play);
        return this;
    }

    public TwimlBuilder generateConnectConference(String conferenceId, boolean startOnEnter, boolean endOnExit) throws TwiMLException {
        Dial dial = new Dial.Builder()
                .conference(new Conference.Builder(conferenceId)
                        .startConferenceOnEnter(startOnEnter)
                        .endConferenceOnExit(endOnExit)
                        .waitUrl("/conference/wait")
                        .waitMethod(HttpMethod.POST)
                        .build())
                .build();
        builder.dial(dial);
        return this;
    }

    public String toEscapedXML() {
        try {
            return this.builder.build().toXml();
        } catch (TwiMLException e) {
            throw new RuntimeException(e);
        }
    }
}

That's it! We have just implemented warm transfers using Java Servlets. Now your clients won't get disconnect from support calls while they are being transferred to some else.

Where to next?

If you're a Java developer working with Twilio, you might also enjoy these tutorials:

Click-To-Call

Click-to-call enables your company to convert web traffic into phone calls with the click of a button. Learn how to implement it in minutes.

Automated-Surveys

Learn to implement automated surveys in your Spring web app with Twilio.

Did this help?

Thanks for checking this tutorial out! Let us know on Twitter what you've built... or what you're building.

Related Posts

Related Resources

A newspaper article

Twilio Docs

From APIs to SDKs to sample apps

API reference documentation, SDKs, helper libraries, quickstarts, and tutorials for your language and platform.
An Open book

Resource Center

The latest ebooks, industry reports, and webinars

Learn from customer engagement experts to improve your own communication.
User group reactions

Ahoy

Twilio's developer community hub

Best practices, code samples, and inspiration to build communications and digital engagement experiences.
