Propagate OpenTelemetry Context via Azure Service Bus for Asynchronous .NET Services

Time to read: 5 minutes

May 02, 2023
Written by
Rahul Rai
Contributor
Opinions expressed by Twilio contributors are their own
Reviewed by
Niels Swimberghe
Twilion

Propagate OpenTelemetry Context via Azure Service Bus for Asynchronous .NET Services

As the size of distributed systems in organizations grows, it becomes essential to monitor and trace the interactions between various services within the system. OpenTelemetry, an open-source observability framework, has become increasingly popular for this purpose. It is a set of APIs, libraries, and agents designed to collect distributed traces and metrics from applications, allowing developers to gain insights into their applications' performance and behavior. OpenTelemetry is a collaborative effort between the OpenTracing and OpenCensus projects and is now a part of the Cloud Native Computing Foundation (CNCF).

In this article, you will learn how to pass OpenTelemetry context between asynchronous .NET services. To understand the concept in detail, you will use a REST API and a console application that communicates using Azure Service Bus and export traces to a Jaeger service. As you implement the application, you will learn how to serialize and deserialize context across service boundaries using the OpenTelemetry propagator.

What is Context Propagation?

In OpenTelemetry, context refers to the mechanism used to carry metadata across process boundaries and different layers of an application. It is an essential part of distributed tracing and logging, as it allows for the correlation of telemetry data across various services in a distributed system.

The context in OpenTelemetry is typically represented by a key-value pair, where the key is used to identify the specific metadata, and the value carries the actual data. The most common use case for context is to store and propagate trace identifiers (e.g., trace ID and span ID) that are used to correlate traces across services and processes.

OpenTelemetry Propagators aid in the transportation of context across process boundaries by serializing and deserializing the context object across the sender and the receiver of the context. Let’s try to understand context propagation with an example.

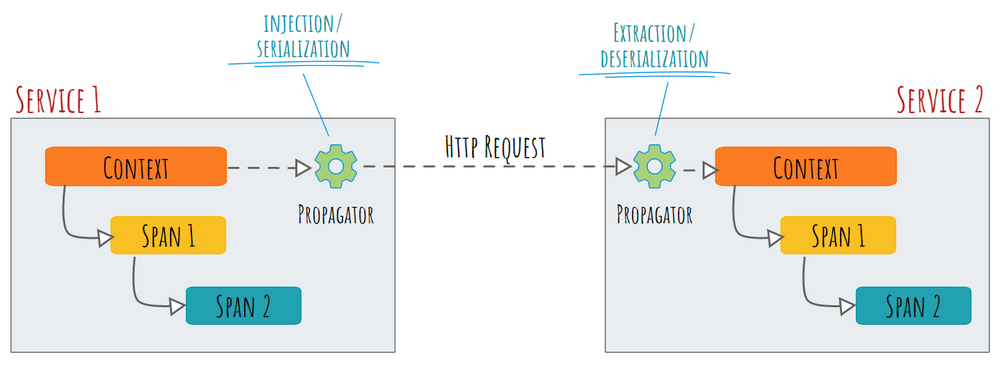

The diagram below shows two services communicating over HTTP. To generate distributed traces, Service 1 must send the context to Service 2 via the HTTP request headers. As part of the propagation process, Service 1 serializes the context object and adds it to the request HTTP headers, a process called injection. On the other end, Service 2's propagator deserializes the context from the HTTP request headers and sets it as the current context, a process called extraction.

Context propagated from service 1 to service 2 over HTTP. Service 1 uses a propagator to serialize the context, and service 2 uses a propagator to deserialize the context.

Typically, tracing HTTP request headers comply with W3C standards. The W3C standard for tracing HTTP request headers is referred to as Trace-Context. Zipkin B3 headers are another popular format used by some tracing systems.

The .NET OpenTelemetry instrumentation library for HttpClient and HttpWebRequest automatically manages context propagation. Therefore, you won't have to manually set up propagation for synchronous services if you use the library. In contrast, asynchronous services don't communicate over HTTP, so context propagation must be configured manually for such applications.

Sample: Sender and Receiver Asynchronous Services

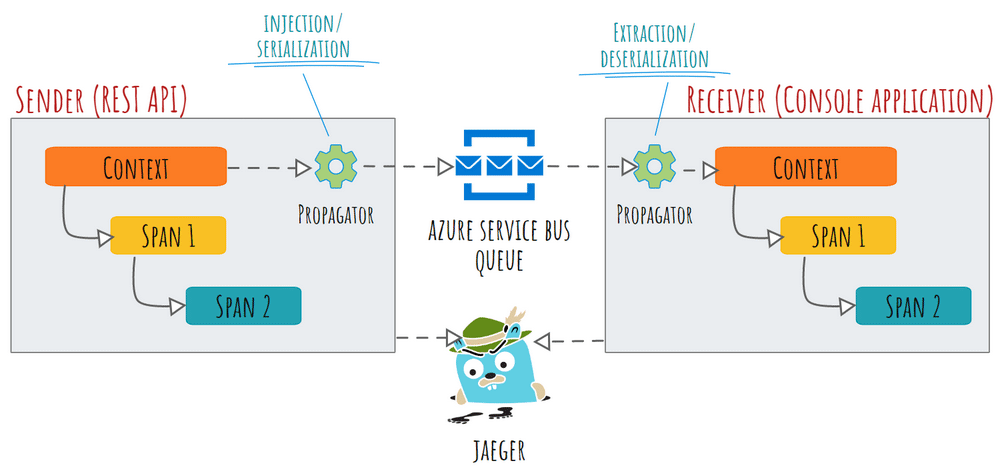

Here is a high-level design diagram for the sample application you will develop.

High-level design diagram of the sample application. It consists of a REST API Sender service sending messages using Azure Service Bus to the Receiver application that is modeled as a console application. Both applications send traces to a Jaeger instance. The sender application uses a propagator to serialize the context, and the receiver uses a propagator to deserialize the context.

The application consists of a REST API named "Sender" that exposes a single HTTP POST endpoint /send to receive a message from the user. Upon receiving the request, the Sender application queues the received message to an Azure Service Bus queue.

The "Receiver" is a simple console application that attaches a listener to the queue and continuously listens to the messages. Upon receiving a message from the queue, the application prints it to the console and marks the message as Completed so that it is deleted from the queue.

Each application exports traces to a Jaeger instance running inside a Docker container. At any time, you can view the distributed traces from the applications in the Jaeger UI console.

You will learn how to build this application in this tutorial. This application's reference implementation is also available on GitHub for your convenience.

Prerequisites

You will use the following tools to build the sample application:

You can learn about how to set up an Azure Service Bus namespace and queue and how to use the Azure Service Bus SDK by referencing the quickstart guide on using Azure Service Bus queues.

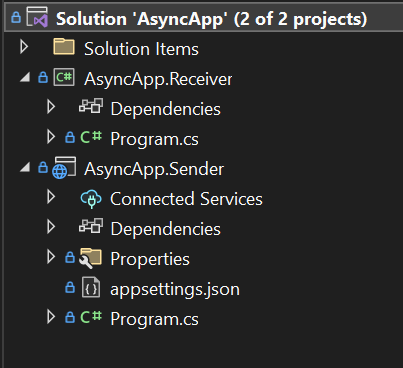

Please ensure that you maintain the following solution structure while building the application.

Solution explorer view of the projects and artifacts in the solution. At the root is the solution file named "AzyncApp". The solution contains 2 projects named "AsyncApp.Receiver" which is a Console Application and a project named "AsyncApp.Sender" which is a Web API project.

Develop the Sender Service

Create a new solution file named AsyncApp and within it a Minimal API project named AsyncApp.Sender with ASP.NET Core.

dotnet new sln -o AsyncApp
cd AsyncApp
dotnet new web -o AsyncApp.Sender

Add the following NuGet packages to the project:

dotnet add AsyncApp.Sender package Azure.Identity
dotnet add AsyncApp.Sender package Azure.Messaging.ServiceBus
dotnet add AsyncApp.Sender package OpenTelemetry.Exporter.Jaeger
dotnet add AsyncApp.Sender package OpenTelemetry.Extensions.Hosting

Now replace the contents of the AsyncApp.Sender/Program.cs file with the following code segment:

using Azure.Identity;
using Azure.Messaging.ServiceBus;
using OpenTelemetry;
using OpenTelemetry.Context.Propagation;
using OpenTelemetry.Exporter;
using OpenTelemetry.Resources;
using OpenTelemetry.Trace;

var builder = WebApplication.CreateBuilder(args);

// Define attributes for your application
var resourceBuilder = ResourceBuilder.CreateDefault()
    // Add attributes for the name and version of the service
    .AddService("MyCompany.AsyncApp.Sender", serviceVersion: "1.0.0")
    // Add attributes for the OpenTelemetry SDK version
    .AddTelemetrySdk();

// Configure tracing
builder.Services.AddOpenTelemetry()
    .WithTracing(tracerProviderBuilder =>
    {
        tracerProviderBuilder
            // Define the resource
            .SetResourceBuilder(resourceBuilder)
            // Receive traces from our own custom sources
            .AddSource("Sender")
            // Ensures that all spans are recorded and sent to exporter
            .SetSampler(new AlwaysOnSampler())
            // Stream traces to the SpanExporter
            .AddProcessor(
                new BatchActivityExportProcessor(new JaegerExporter(new()
                {
                    Protocol = JaegerExportProtocol.HttpBinaryThrift,
                })));
    });

builder.Services.AddSingleton(TracerProvider.Default.GetTracer("Sender"));

var app = builder.Build();

await using var client = new ServiceBusClient("<service-bus-namespace>.servicebus.windows.net", new DefaultAzureCredential());
await using var sender = client.CreateSender("<queue-name>");


app.MapPost("/send", async (string message, Tracer tracer) =>
{
    // Creates the root span
    using var span = tracer.StartActiveSpan("Send message", SpanKind.Producer);

    // Set contextual information which can be read by the receiver
    Baggage.SetBaggage("Sent by", "AsyncApp.Sender");

    var qMessage = new ServiceBusMessage();

    // Use the Propagator to add trace context to message properties
    Propagators.DefaultTextMapPropagator.Inject(new(span.Context, Baggage.Current), qMessage.ApplicationProperties,
        (qProps, key, value) =>
        {
            qProps ??= new Dictionary<string, object>();
            qProps[key] = value;
        });

    qMessage.Body = BinaryData.FromString(message);
    await sender.SendMessageAsync(qMessage);

    // Add an event to the span
    span.AddEvent($"Message \"{message}\" sent to queue");
    return Results.Accepted();
});

await app.RunAsync();

Replace <service-bus-namespace> with the namespace of your Azure Service Bus and <queue-name> with the name of the queue within your Azure Service Bus namespace.

This code configures the components of the tracing pipeline you will use in the service: the resource, the tracer provider, the span processor, and the span exporter. As you intend to export the service traces to a local Jaeger instance, you used the JaegerExporter as the span exporter. If any of the instructions used to configure and implement OpenTelemetry are unfamiliar to you, refer to the .NET OpenTelemetry Tracing Shim documentation that describes the OpenTelemetry API shim available in .NET, which makes it possible to build applications with terminology consistent with OpenTelemetry specifications.

The next code segment configures the Service Bus client to send messages to the queue.

Finally, you defined a POST endpoint that accepts text input. First, the endpoint method creates the root span and then sets a property of the Baggage. The Baggage contains the metadata that is transmitted to the destination during context propagation. Therefore, the destination service - "Receiver", will have access to the Baggage data as well when it receives the context.

You will now learn how context propagation works. You may remember from the previous section that the process of serializing the context is called Injection. It is the Sender service's responsibility to inject context into service bus messages. The Receiver application will then extract this context from the message.

In the previous code snippet, the Propagator serializes the context and the Baggage into key-value pairs, which the custom action in the Inject method sets as the Service Bus message properties.

Develop The Receiver Application

Create a console application project to the AsyncApp solution and name the project AsyncApp.Receiver:

dotnet new console -o AsyncApp.Receiver

Add the following NuGet packages to the project:

dotnet add AsyncApp.Receiver package Azure.Identity
dotnet add AsyncApp.Receiver package Azure.Messaging.ServiceBus
dotnet add AsyncApp.Receiver package OpenTelemetry.Exporter.Jaeger

Now replace the contents of the AsyncApp.Receiver/Program.cs file with the following code segment:

using Azure.Identity;
using Azure.Messaging.ServiceBus;
using OpenTelemetry;
using OpenTelemetry.Context.Propagation;
using OpenTelemetry.Exporter;
using OpenTelemetry.Resources;
using OpenTelemetry.Trace;

// Define attributes for your application
var resourceBuilder = ResourceBuilder.CreateDefault()
    // Add attributes for the name and version of the service
    .AddService("MyCompany.AsyncApp.Receiver", serviceVersion: "1.0.0")
    // Add attributes for the OpenTelemetry SDK version
    .AddTelemetrySdk();

// Configure tracing
using var tracerProvider = Sdk.CreateTracerProviderBuilder()
    .SetResourceBuilder(resourceBuilder)
    // Receive traces from our own custom sources
    .AddSource("Receiver")
    // Ensures that all spans are recorded and sent to exporter
    .SetSampler(new AlwaysOnSampler())
    // Stream traces to the SpanExporter
    .AddProcessor(
        new BatchActivityExportProcessor(
            new JaegerExporter(new() { Protocol = JaegerExportProtocol.HttpBinaryThrift })))
    .Build();

var tracer = TracerProvider.Default.GetTracer("Receiver");

await using var client = new ServiceBusClient("<service-bus-namespace>.servicebus.windows.net", new DefaultAzureCredential());
await using var processor = client.CreateProcessor("<queue-name>");

processor.ProcessMessageAsync += ProcessMessageAsync;
processor.ProcessErrorAsync += ProcessErrorAsync;

await processor.StartProcessingAsync();

Console.WriteLine("Press any key to end the processing");
Console.ReadKey();

Console.WriteLine("\nStopping the receiver...");
await processor.StopProcessingAsync();
Console.WriteLine("Stopped receiving messages");

async Task ProcessMessageAsync(ProcessMessageEventArgs args)
{
    // Use the Propagator to extract the context from message properties
    var parentContext = Propagators.DefaultTextMapPropagator.Extract(default, args.Message.ApplicationProperties,
        (qProps, key) =>
        {
            if (!qProps.TryGetValue(key, out var value) || value?.ToString() is null)
            {
                return Enumerable.Empty<string>();
            }

            return new[] { value.ToString() };
        });

    // Create a new span as a child of the propagated parent span
    using var span = tracer.StartActiveSpan("Receive message", SpanKind.Consumer,
        new SpanContext(parentContext.ActivityContext));

    // Copy the parent span baggage to the current span baggage
    Baggage.Current = parentContext.Baggage;

    // Write the baggage properties as span attributes so that they can be recorded by Jaeger
    foreach (var (key, value) in Baggage.Current)
    {
        span.SetAttribute(key, value);
    }

    var body = args.Message.Body.ToString();
    Console.WriteLine($"Received: {body}");
    await args.CompleteMessageAsync(args.Message);

    // Record an event on the span
    span.AddEvent($"Message \"{body}\" received from queue");
}

static Task ProcessErrorAsync(ProcessErrorEventArgs args)
{
    Console.WriteLine(args.Exception.ToString());
    return Task.CompletedTask;
}

Replace <service-bus-namespace> with the namespace of your Azure Service Bus and <queue-name> with the name of the queue within your Azure Service Bus namespace.

The first step in this code is to configure the OpenTelemetry pipeline and a basic Service Bus queue message consumer. For more information on setting up OpenTelemetry and Azure Service Bus, please refer to the OpenTelemetry guide and Azure Service Bus quickstart guide.

The getter delegate ProcessMessageAsync of the Azure Service Bus message processor reads the message properties and enables the Propagator to deserialize it to a context object. Additionally, you set the parent context for the subsequent spans so they are associated with the same trace as the spans of the Sender application.

Exporting Traces to Jaeger

Since both the applications are configured to export traces to Jaeger, launch a container running Jaeger with the following command:

docker run --rm -p 16686:16686 -p 14268:14268 --name jaeger jaegertracing/all-in-one:1.43

Then, in a separate shell, run the Sender application on port 8080:

dotnet run --project AsyncApp.Sender --urls http://localhost:8080

And, in another separate shell, run the Receiver application:

dotnet run --project AsyncApp.Receiver

While the Sender and Receiver applications are running together, send a few messages to the Sender application using the following cURL command or PowerShell Cmdlet:

curl --request POST 'http://localhost:8080/send?message=<message>'
Invoke-WebRequest http://localhost:8080/send?message=<message> -Method Post

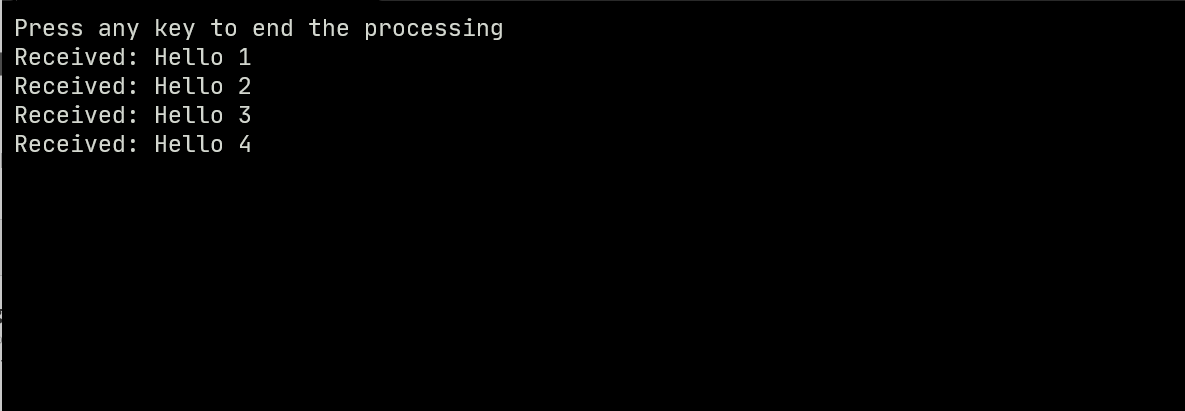

An example of the output generated by the Receiver application is shown in the following screenshot:

Console output generated by the Receiver application. The first line of the output text reads "Press any key to end the processing". The next lines read "Received: Hello N" where N is an incrementing counter.

If the applications throw authentication or authorization exceptions, make sure you are logged into the Azure CLI with the correct Azure account. Depending on how you run your .NET application, DefaultAzureCredential will use a different account to authenticate. For example, when running the app using the .NET CLI, the Azure CLI account will be used, but when running the app using Visual Studio, the Visual Studio account will be used. Whichever account is being used, make sure it has the Azure Service Bus Data Receiver and Azure Service Bus Data Sender role.

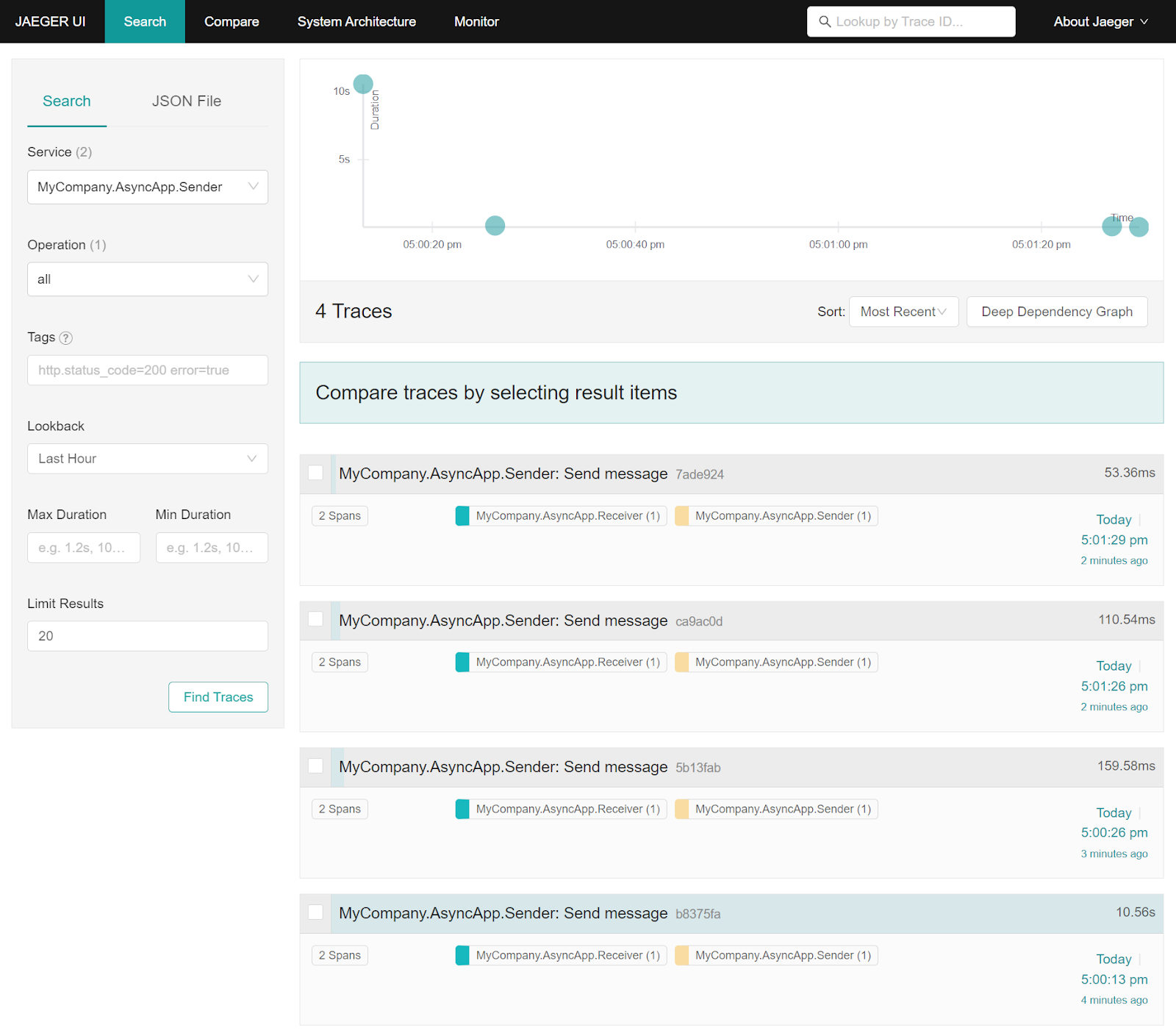

You can view the traces by opening the Jaeger UI in your browser at http://localhost:16686.

Jaeger console user interface showing the traces collected from the applications

As you can see in the screenshot, both spans are linked to the same trace, proving that context was successfully propagated across service boundaries through the Azure Service Bus queue.

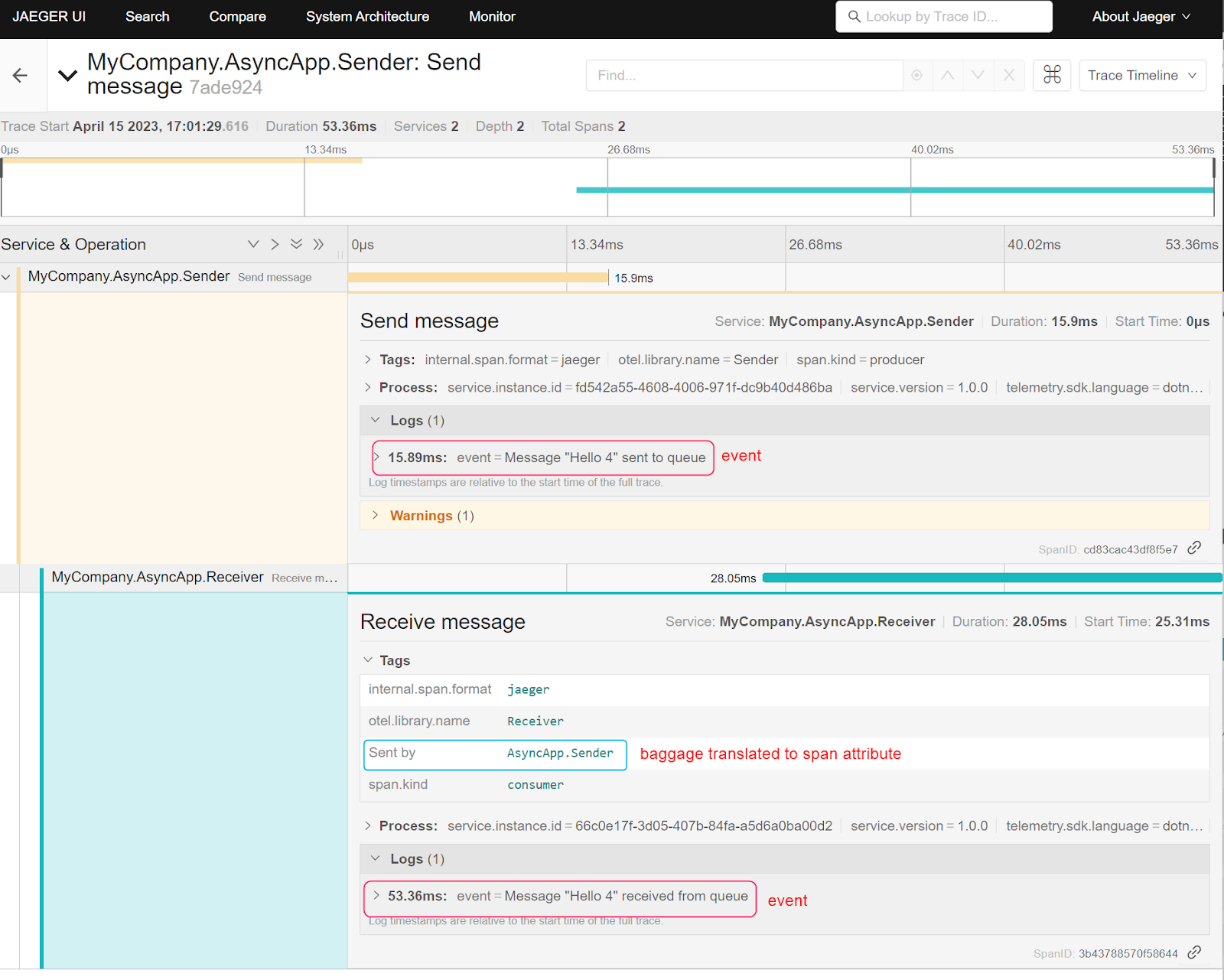

Below is an example of the spans present in a trace, which can be viewed by clicking on one of the traces.

Expanded view of a trace showing the events and the baggage recorded in the spans

Among other information, you will find that the spans include the events generated by the applications when they produced and consumed the message. In addition, you will find the Baggage data propagated with the context from the Sender application recorded as attributes of the span.

Conclusion

In this article, you learned how to propagate OpenTelemetry context within asynchronous services using Azure Service Bus queues. You learned about context propagation and demonstrated how to instrument applications with OpenTelemetry, configure propagators, inject and extract context information, and export traces to Jaeger.

By following these steps, you can effectively pass the OpenTelemetry context between your services. This will enable you to gain a deeper understanding of your distributed systems' performance and behavior. You can use this knowledge to diagnose problems, optimize performance, and improve the application's reliability.
