Pomodoro timers are not only used in the kitchen, but they are also used to assist in daily productivity. The purpose of this particular timer is to promote the concept of working on a task for 25 minutes then taking a short break afterwards.

With the assistance of Twilio, you can be notified with a text message about your next break by clicking on a button on a webpage.

In this tutorial, you’ll learn how to build your own pomodoro timer using Java Spring Boot and Twilio Programmable Messaging services.

Tutorial requirements

Buy a Twilio phone number

If you haven't done so already, your first task is to purchase a Twilio phone number to send SMS.

Log in to the Twilio Console, select Phone Numbers, and then click on the “Buy a number” button to buy a Twilio number. Note that if you have a free account, you will be using your trial credit for this purchase.

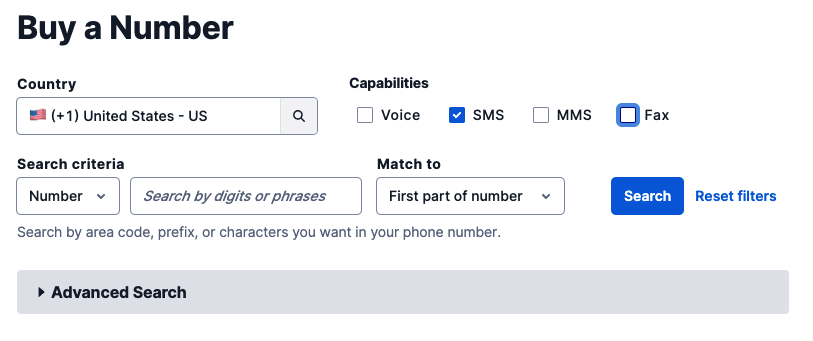

On the “Buy a Number” page, select your country and check SMS in the “Capabilities” field. If you’d like to request a number that is local to your region, you can enter your area code in the “Number” field.

Buy a Twilio phone number

Click the “Search” button to see what numbers are available, and then click “Buy” for the number you like from the results. After you confirm your purchase, click the “Close” button.

Configure a Messaging Service

Scheduled messages can only be sent from a Messaging Service at this time, so the next step is to configure one and add your Twilio phone number to it.

Still in the Console, find the “Messaging” product and click on its Services option. Then click the “Create Messaging Service” button.

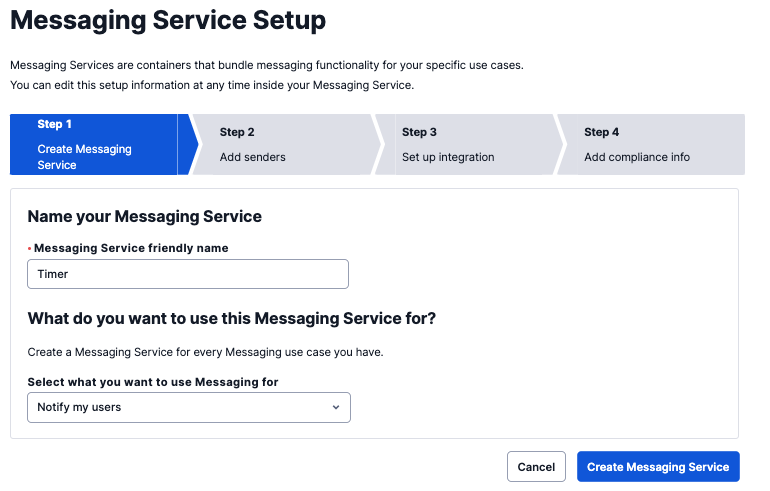

On the first page of the creation process, enter a friendly name for the service, such as “Timer”, and select “Notify my users” in the “Select what you want to use Messaging for” dropdown.

Create messaging service page 1

Click the “Create Messaging Service” button to move to the second step.

In this part of the configuration, you have to add the sender phone number(s) to the sender pool used by the service. Click the “Add Senders” button to add the Twilio phone number you acquired in the previous section.

Create messaging service part 2

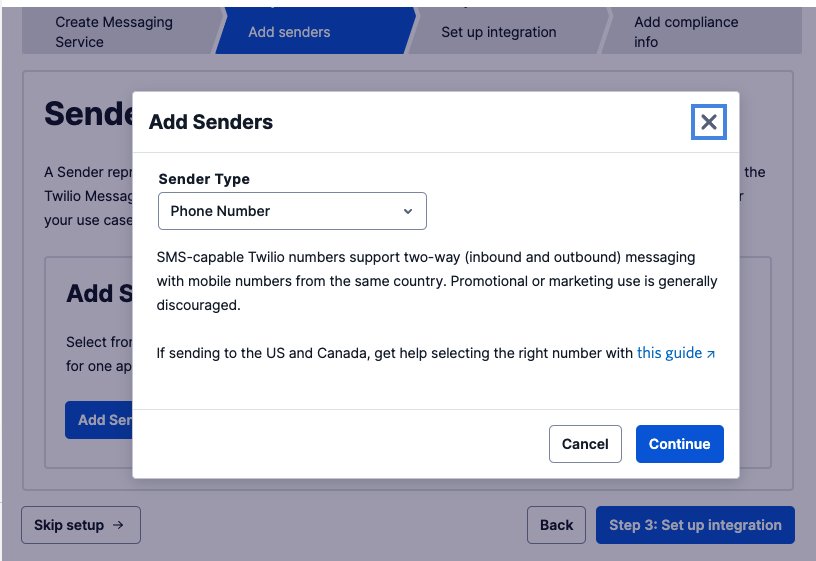

Select Phone Number in the “Sender Type” dropdown, and click “Continue”.

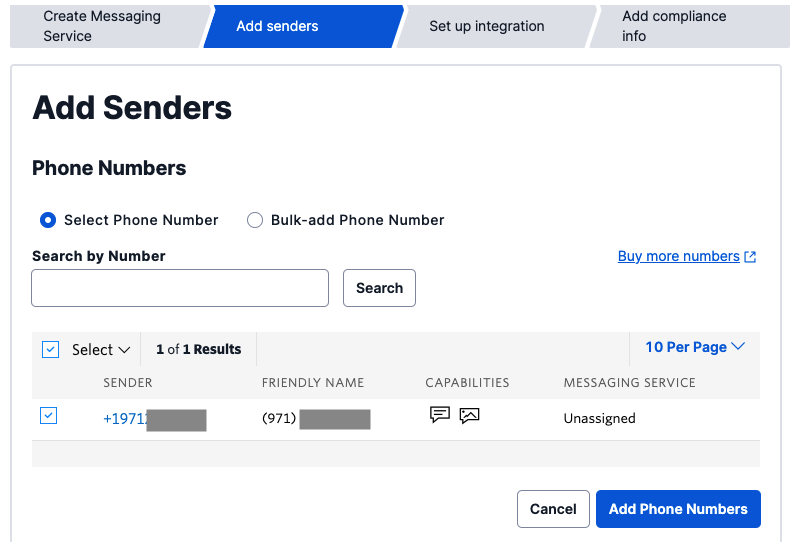

Add a checkmark next to the phone number you want to use as a sender, and click “Add phone numbers”.

Add senders to messaging service

Click the “Step 3: Set up integration” button to move on to the next step. You don’t have to change any of the settings on this page, just click on “Step 4: Add compliance info”.

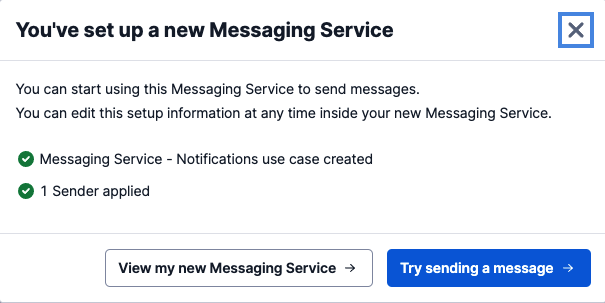

To complete the configuration of your Messaging Service, click on “Complete Messaging Service Setup”. You will now be offered the option to send a test message.

Messaging service setup complete

It is a good idea to test that your messaging service is able to send messages, so go ahead and click on “Try sending a message”.

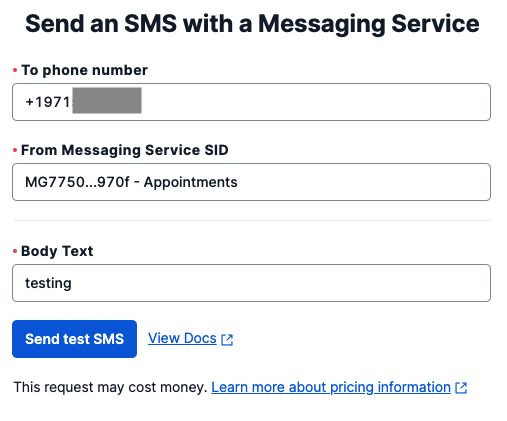

In the “To phone number” pulldown, select your personal number, which should be registered and verified with your Twilio account if you have a trial account. In the “From Messaging Service SID”, select the Messaging Service you just created. In the “Body Text” enter some text to send yourself.

Send test SMS

This image is reused and the Messaging Service SID name does not reflect the one used in this project.

Click the “Send test SMS” button, and make sure you receive the SMS on your phone.

Add the Twilio dependencies

Navigate to the pom.xml file to add the following dependencies between the <dependencies></dependencies> tags:

                <dependency>
                        <groupId>com.twilio.sdk</groupId>
                        <artifactId>twilio</artifactId>
                        <version>8.36.0</version>
                </dependency>

This dependency allows the Twilio Java Helper Library to be used and executed in this Maven project. This is essential for the controller class that will be created later on to handle the TwiML messages of this SMS project.

We always recommend using the latest version of the Twilio Helper Library. At the time of writing the latest version is 8.36.0 but new versions are released frequently. You can always check the latest version at mvnreporistory.com.

Save the file.

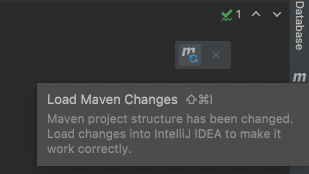

Look at the top-right corner of the IntelliJ IDEA and find the little icon with an "M" shape. Click it to load Maven changes.

An icon with an "M" shape with a tooltip "Load Maven Changes"

Configure the environment variables

Locate the Run tab at the top of the IntelliJ IDEA console and select Edit Configurations… in the dropdown as seen below:

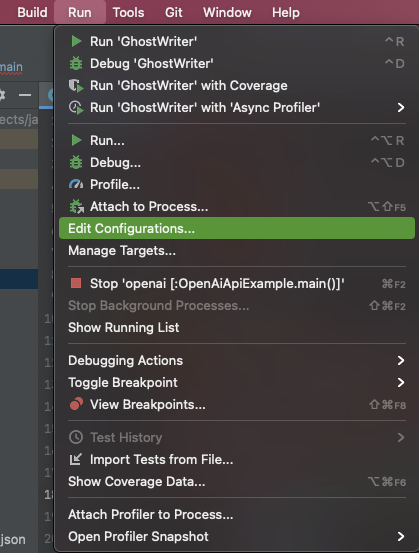

edit configurations option in intellij idea

This image is reused and the project directory name does not reflect the one used in this project.

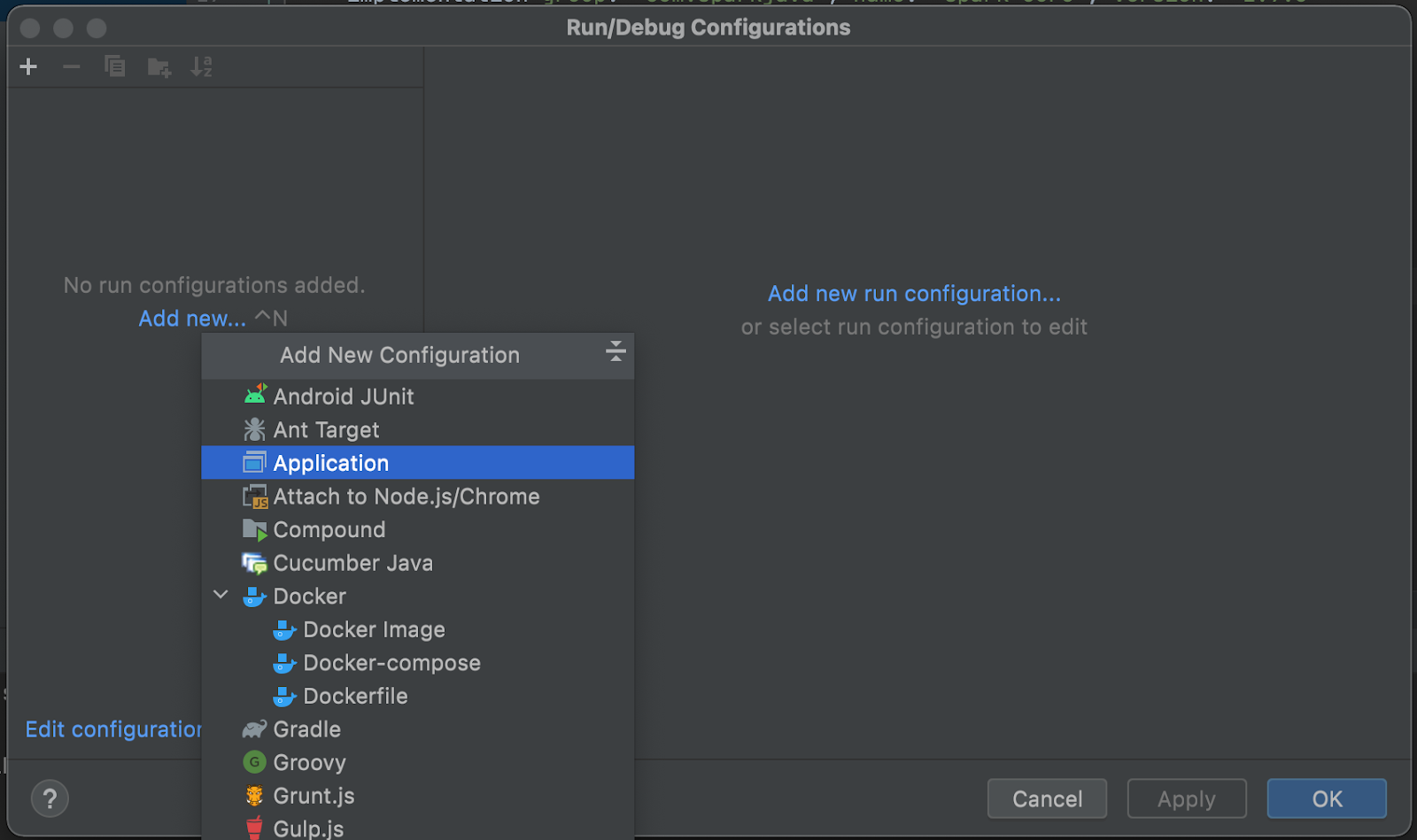

Another window displaying the "Run/Debug Configurations" will pop up with the details regarding the project. If there are no existing configurations for you to edit, click on Add New… on the left-hand side and create a new application named "ScheduledText".

option to add a new application to edit configurations in intellij idea

It is best practice to protect your Twilio account credentials by setting environment variables.

You can find your account credentials on the Twilio Console.

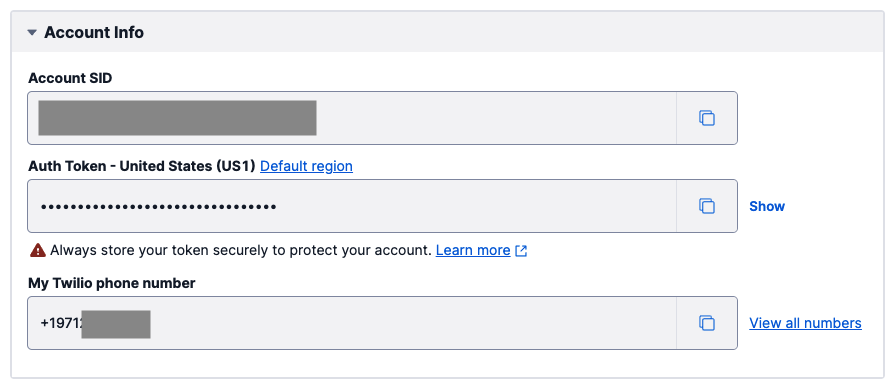

Twilio credentials in the Console

Refer to this article to set up and hide variables in the IntelliJ IDEA environment.

Not only is it mandatory to set the Twilio credentials as environment variables, it is also suggested that you store both your Twilio phone number and personal phone number as environmental variables. This would be helpful in the case that the code is shared on a public repository so that the phone numbers are not exposed.

Go ahead and follow the same instructions to store your phone number as the PHONE_NUMBER key in the IntelliJ IDEA environment. This must be stored in E.164 format such as "+19140201400".

Since a Messaging Service is used to schedule the SMS, another variable named TWILIO_MESSAGING_SERVICE_SID must also be created. You can find it in the Messaging Services page of the Twilio Console. This identifier starts with the letters MG.

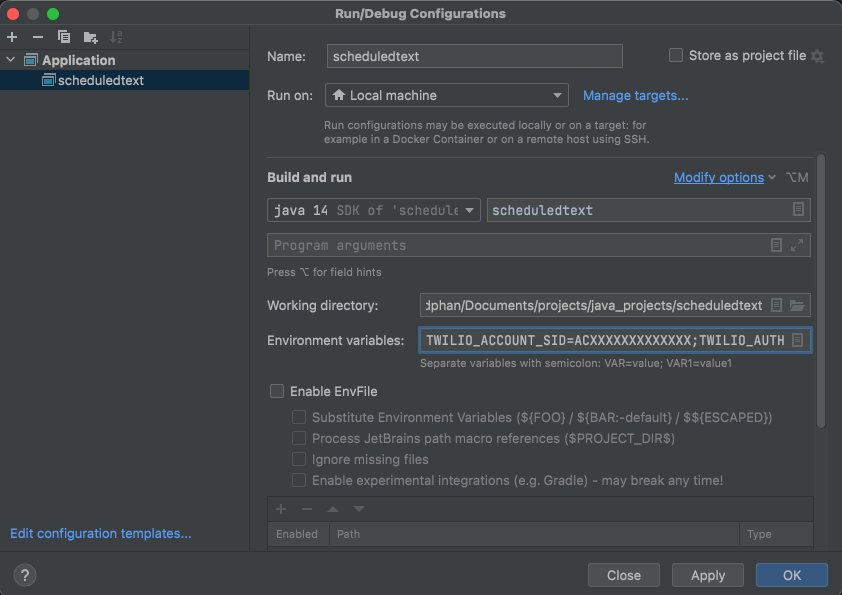

edit the configurations to build and run the java application

Click on the Apply button, and then OK once finished.

Create the HTML page

The objective of this application is to make a POST request whenever the user clicks on the timer. Once the timer is clicked, an HTTP request is fired. At the same time, an alert is made on the webpage to inform the user that an SMS is expected in 25 minutes.

Go ahead and place a picture that you would like to use as the pomodoro timer in the src/main/resources/static subfolder. The /static subfolder is a location for all static assets to be used and referenced throughout this project. You may also use the tomato picture on my GitHub for this project.

Find the src/main/resources/templates subfolder and create a new file named index.html. This file will be rendered when you visit the application's homepage.

Copy and paste the following code to the game.html file:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Hey Mr. Tomato</title>
</head>
<body>
<img id = "tomato" src="<FILE_NAME_FOR_IMAGE>" height="738" width="816" alt = "tomato graphic"/></body>
<script>
    var tomato = document.getElementById("tomato");
    tomato.onclick = function(e) {
        alert("See you again in 25 minutes!");
        fetch("/timer", {method:"POST"})
            .then(response => response.text())
            .then(data => console.log(data));
    }
</script>
</html>
Be sure to replace `<FILE_NAME_FOR_IMAGE>` with the name for the image you uploaded in the src/main/resources/static subfolder. You can also replace the variable, `img id`, and `alt` tag names to match your project.

The image is given an id so that it can be retrieved from the Document Object Model (DOM). In the example for this article, a tomato is used, so the variable and id names will be related to the tomato. This tomato image is retrieved from the document in the JavaScript portion so that an onclick event function can be attached to the image.

The following logic is defined inside the function:

  • Once the image is clicked on, an alert shows up to the user to let them know the SMS will be sent in 25 minutes.
  • A fetch request is made to the /timer route.

Schedule an SMS with Java Spring Boot

After you’ve set up your application, navigate back to the WebController.java file that was created during the setup prerequisites, and replace the contents with the following code:

package com.example.schedulesmstwilio;

import com.twilio.Twilio;
import com.twilio.rest.api.v2010.account.Message;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;

import java.time.ZonedDateTime;
import java.time.temporal.ChronoUnit;

@RestController
public class MessageRestController {
    private static final Logger LOG = LoggerFactory.getLogger(MessageRestController.class);
    private final String ACCOUNT_SID = System.getenv("TWILIO_ACCOUNT_SID");
    private final String AUTH_TOKEN = System.getenv("TWILIO_AUTH_TOKEN");
    private final String TWILIO_MESSAGING_SERVICE_SID = System.getenv("TWILIO_MESSAGING_SERVICE_SID");
    private final String PHONE_NUMBER = System.getenv("PHONE_NUMBER");

    public MessageRestController() {
        Twilio.init(ACCOUNT_SID, AUTH_TOKEN);
    }

    @PostMapping(value = "/timer")
    @ResponseBody
    public String scheduleSMS() {
// …

Remember that the package in the first line will vary depending on the name of your Java project. The project is named "schedulesmstwilio" in this tutorial.

The @RestController annotation marks the request handler required to build and provide the RESTful web service during runtime.

A MessageRestController constructor is created so that the Twilio client can be initalized once at the execution of the application, using the environment variables that were set.

The /timer route is where the scheduleSMS method will run.

A Logger is also initiated to print out the message SID.

Finish off the WebController.java file by adding the following lines to the WebController class:

// …
        final ZonedDateTime sendTime = ZonedDateTime.now().plus(26, ChronoUnit.MINUTES);
        Message message = Message.creator(
                        new com.twilio.type.PhoneNumber(PHONE_NUMBER),
                        TWILIO_MESSAGING_SERVICE_SID,
                        "Hey, it's Mr. Tomato telling you that 25 minutes have passed!")
                .setSendAt(sendTime)
                .setScheduleType(Message.ScheduleType.FIXED)
                .create();
        LOG.info("Message SID is {}", message.getSid());
        return message.getSid() + " scheduled successfully.";
    }
}

Let's break down the code real quick.

The Message.creator() function is used to create and schedule the SMS as seen in the "Configure a Messaging Service" section earlier. The function takes in three arguments to define the recipient, sender, and body of the SMS, respectively. These arguments are the same for both immediate and scheduled sends.

The first line represents the "to" argument, so replace it with the PHONE_NUMBER variable defined earlier. For the "from" argument, the TWILIO_MESSAGING_SERVICE_SID of the Messaging Service is used. The last line represents the "body" argument and can be anything you’d like to send yourself.

The setSendAt() method is set to a ZonedDateTime object that represents the time at which the SMS should be sent. The Message Scheduling feature currently requires that this time is more than 15 minutes and fewer than 7 days ahead. A classic pomodoro timer is set for 25 minutes but you can change it as you please.

The remaining two arguments are used to tell Twilio that this SMS should be sent at a later time. The setScheduleType argument configures the type of scheduling that you want to use. As I’m writing this, the only allowed value for this argument is the string "FIXED".

The application prints the sid value assigned to the scheduled message. This is an identifier that you can use to cancel the message if you need to.

Ready to try this out?

Here's the completed code for the GitHub repository for your reference.

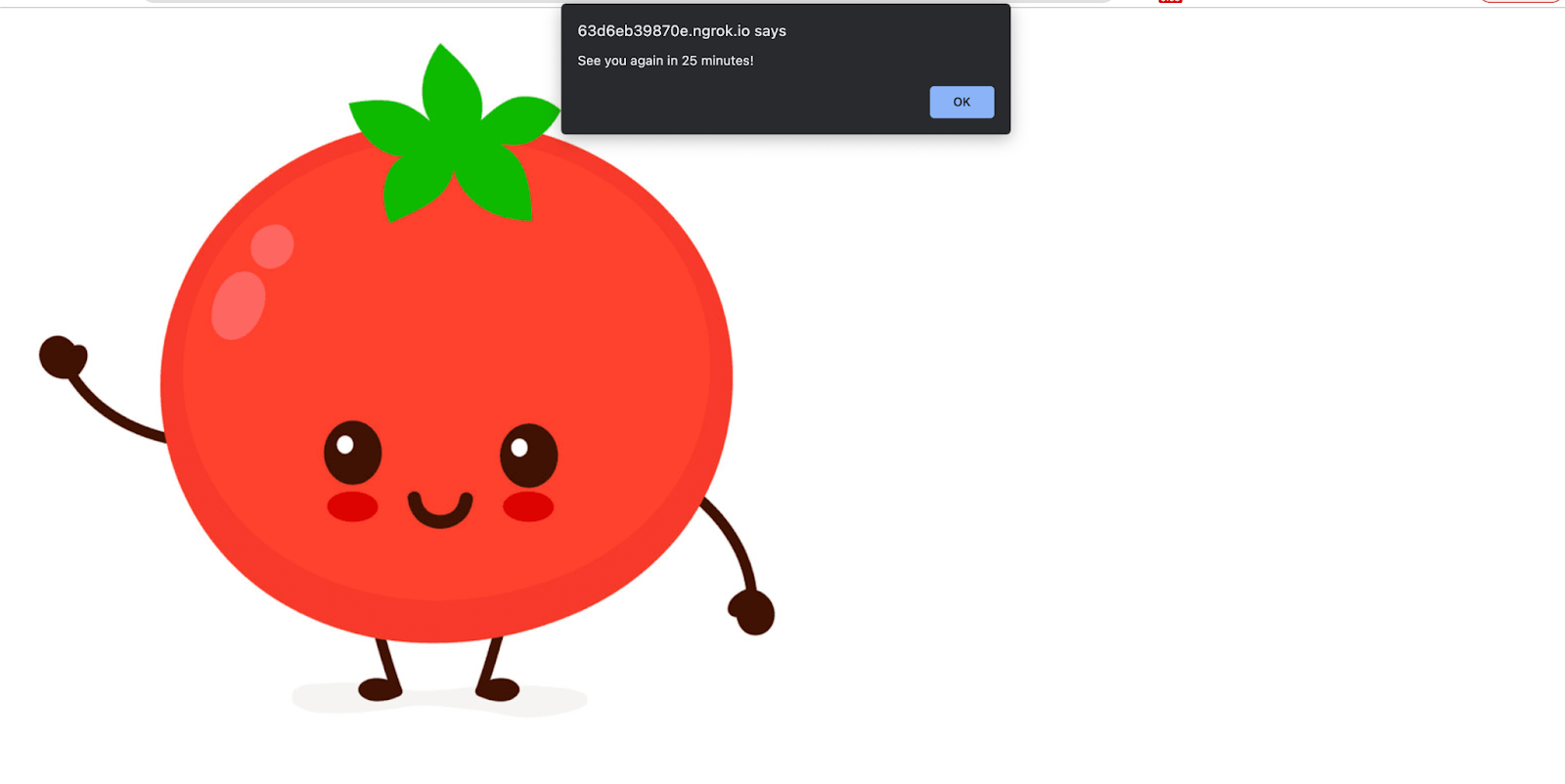

Save, build, and run the Spring Boot application. Go to the unique ngrok URL provided on your terminal and click on the tomato. A pop up alert will also appear on the web browser with the message "See you again in 25 minutes!".

screenshot of webpage with giant tomato and alert message

You should see a code printed to the terminal that starts with the letters SM. This is the identifier of your successfully scheduled message.

Now you have to wait 25 minutes to receive this SMS on your phone. In the meantime, you can view the message in the Programmable Messaging Logs section of the Twilio Console, under which the message will show with its status set to “Scheduled” until the time of delivery.

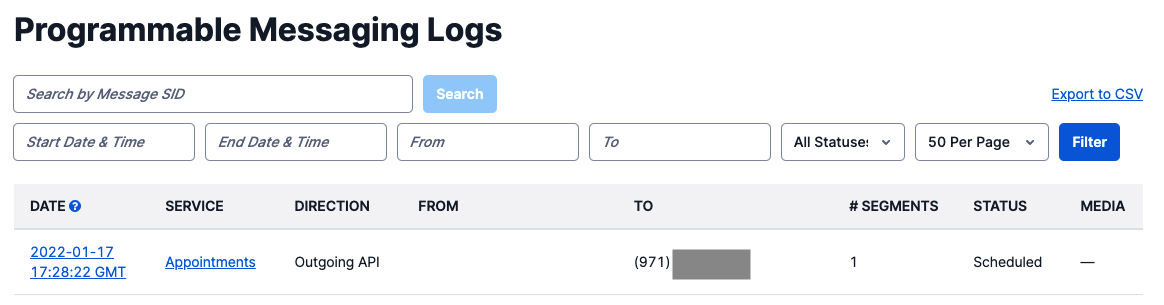

Programmable Messaging Logs before delivery

When the hour passes and your SMS is delivered, the status of the message will change to “Delivered”. You will also be able to see your Twilio phone number as the sender.

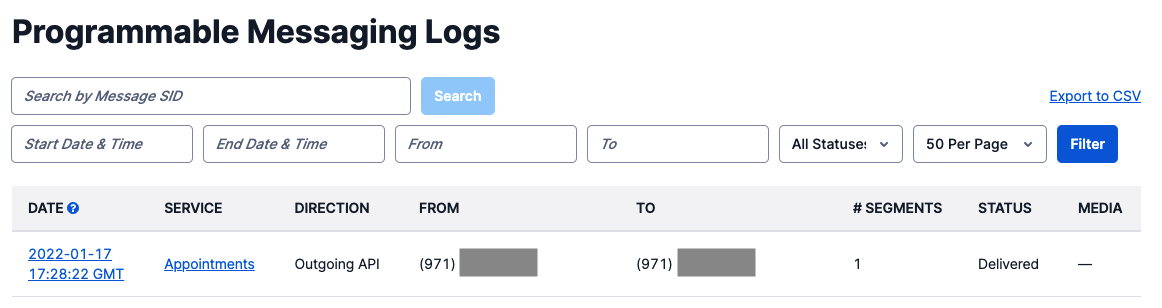

Programmable Messaging Logs after delivery

Once 25 minutes have passed, check your mobile device to hear from Mr. Tomato, as seen in the image below:

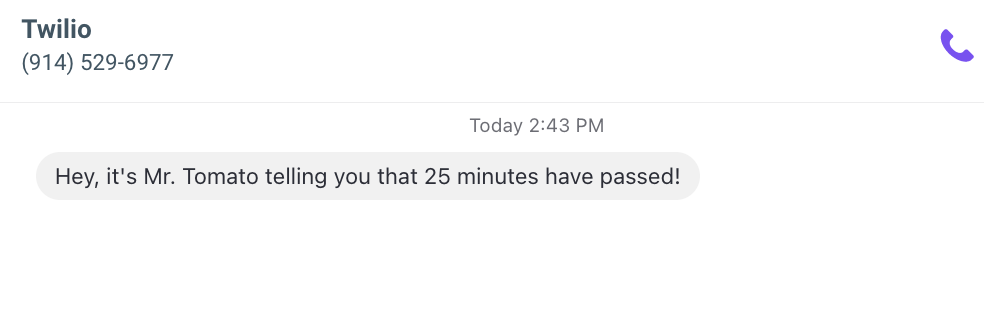

text message saying "Hey, it&#x27;s Mr. Tomato telling you that 25 minutes have passed!"

What's next for scheduling SMS applications?

Congratulations on learning how to build your own pomodoro timer! There are a number of resources on scheduling SMS that you may want to review to learn more:

Let me know what you're building with Twilio and Java by reaching out to me over email.
