Link IVR Time/Path with Inbound Calls Using Flex Insights

Time to read: 5 minutes

June 12, 2020
Written by
Miroslav Botur
Twilion


Want to see Twilio Flex in action? Check out our interactive demo.

Ready to start building your contact center? We're offering $5,000 worth of free Flex Hours to help you get started. Sign up and start building with Twilio Flex!

This post is part of a series on IVRs and Flex Insights. Learn how to track calls abandoned in your IVR here, and stayed tuned for an upcoming guide on keeping track of IVR workflow executions in Studio.

Contact centers push for the use of self-service options to reduce the time their agents spend on handling common requests. In many cases an IVR is used to serve basic customer needs. However, to provide a good customer experience and increase the percentage of self-service inbound calls, visibility on how customers interact with an IVR is critical.

In this guide, I’ll show you how to use Flex Insights to consume IVR interactions for inbound calls and provide you with some tips on building custom reports.

Ready to get started? In this example, we'll create an IVR Task, link the Task to an inbound call, and apply custom attributes and metrics.

TaskRouter Setup - ‘Nobody’ TaskQueue

We need to create dummy IVR tasks to carry information from your IVR to Flex Insights. To do this, we first need to create a ‘Nobody’ TaskQueue and Workflow. Tasks assigned to this queue are not offered to any agent. The tasks only carry information to enhance Flex Insights.

TaskQueue

Docs: TaskQueue Resources

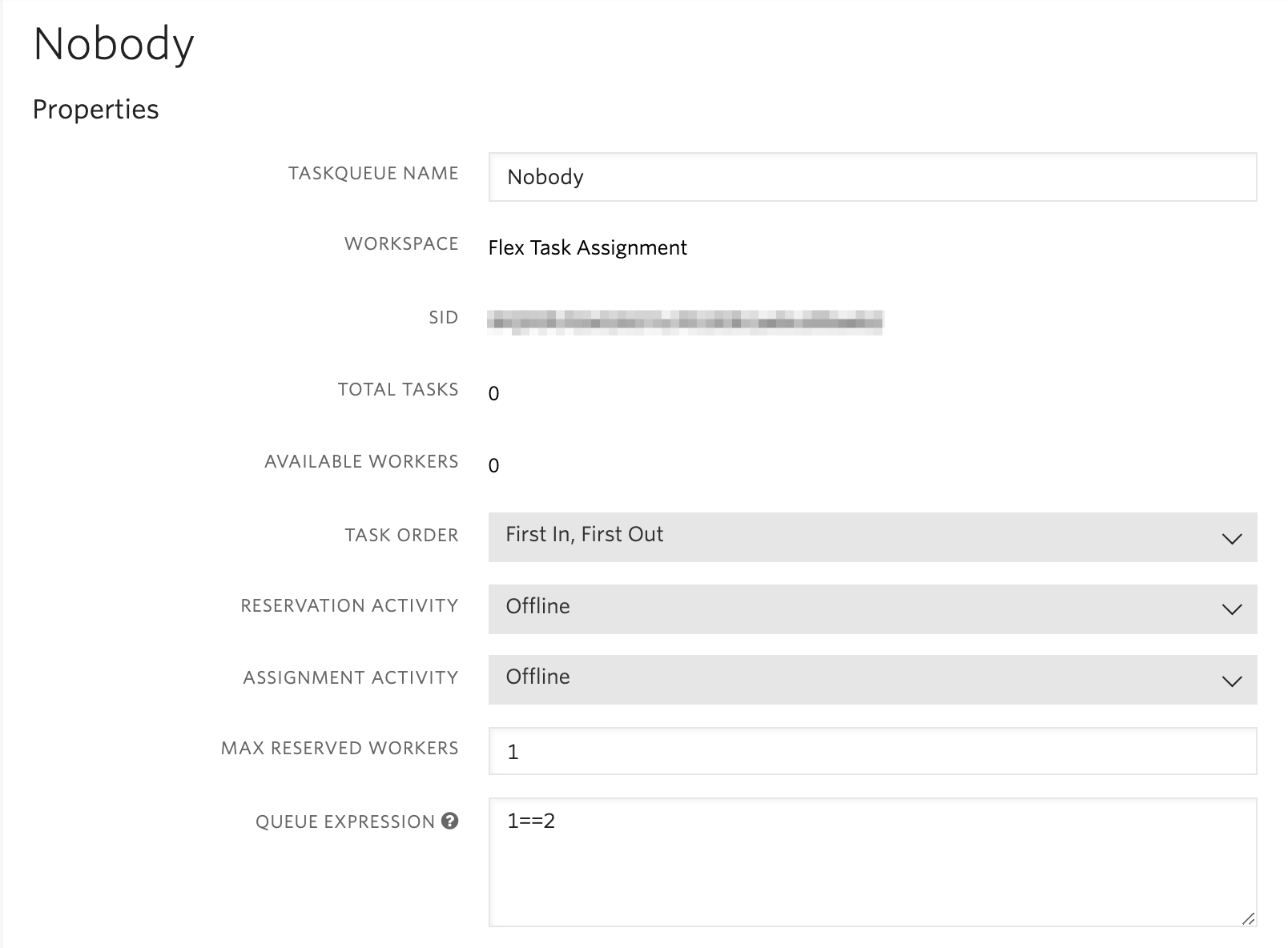

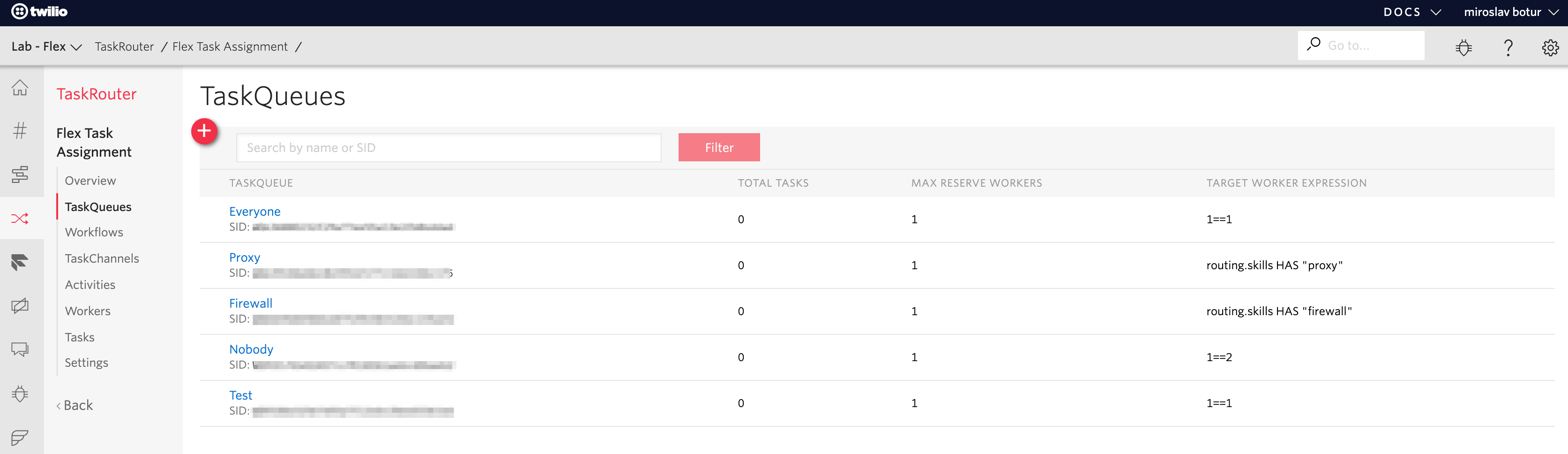

In the Twilio Console, navigate to TaskRouter, open the Flex Workspace and select TaskQueues. Create a new TaskQueue named 'Nobody' and set the expression to 1 == 2. This will create a queue with no agents. Your normal (non-IVR) tasks will not enter this queue. It will only be used to insert the IVR results into Flex Insights.





Workflow

Docs: Workflow Resources

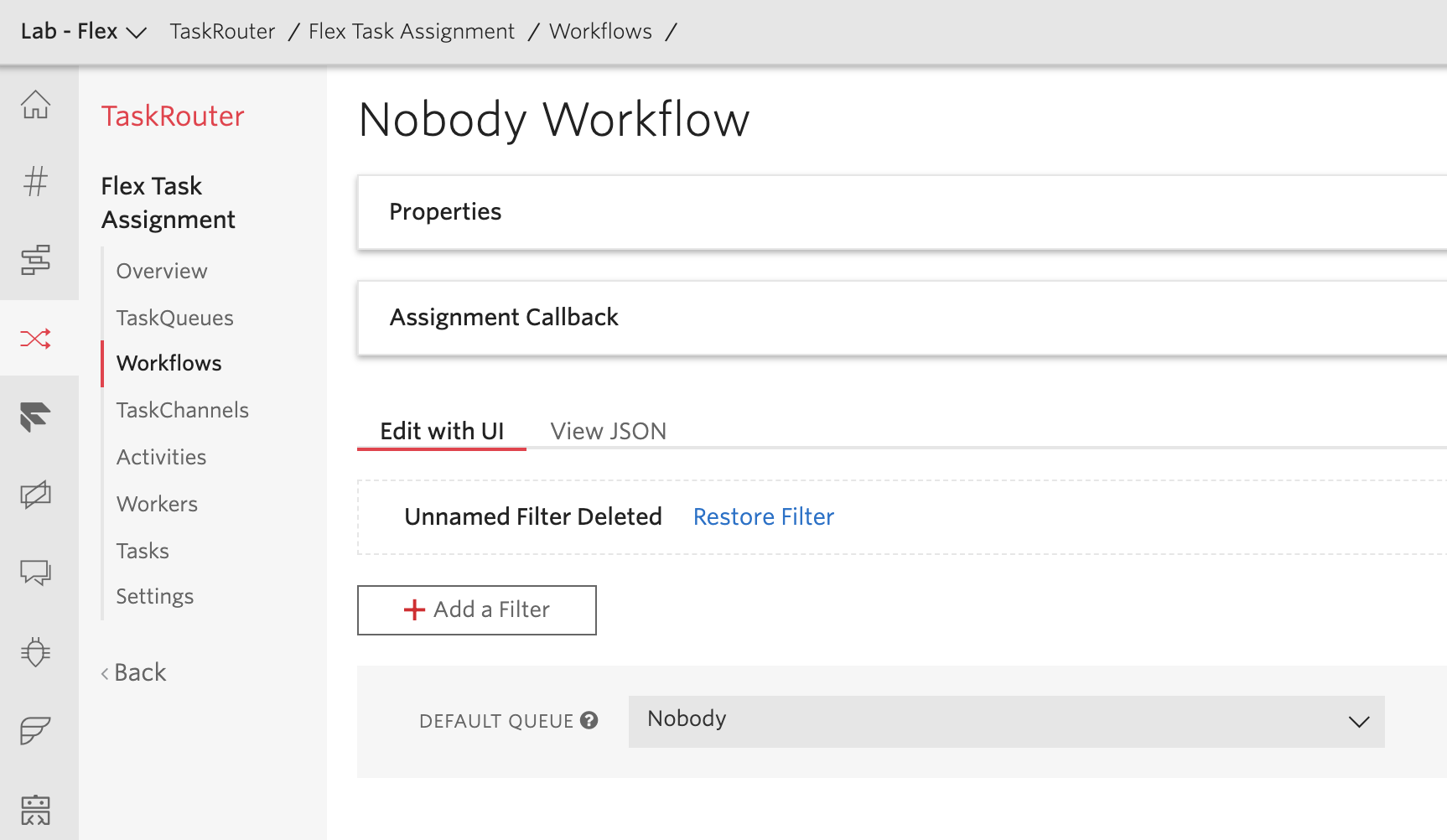

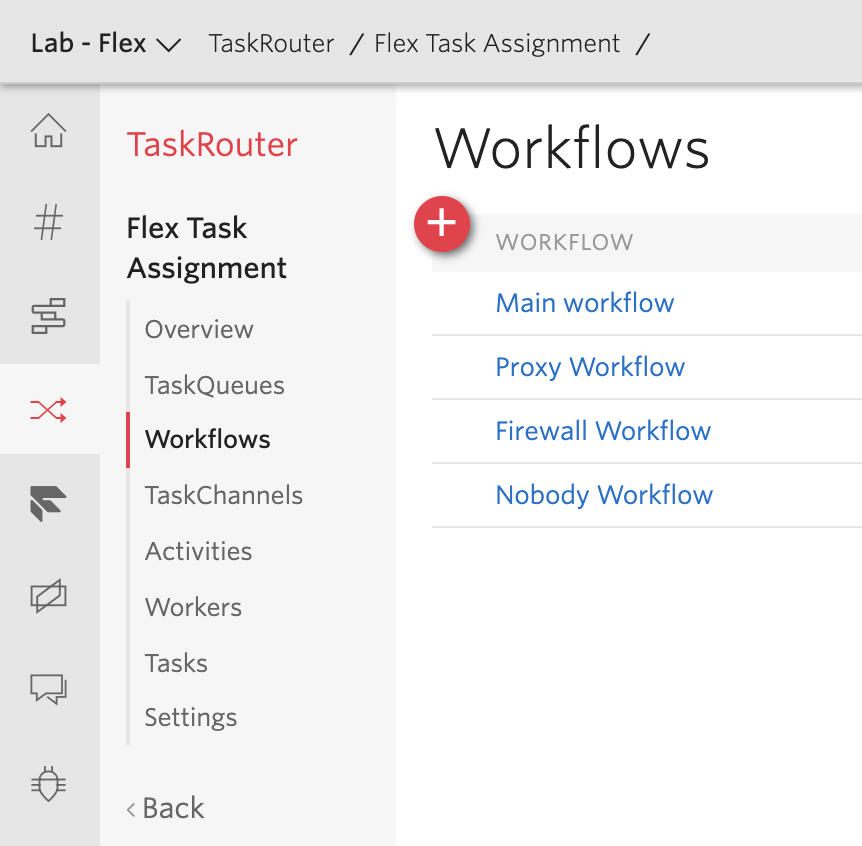

Once the TaskQueue has been created, select Workflows to create a new workflow. Name the new workflow 'Nobody', and create an expression that routes to the new 'Nobody' queue.




IVR Task

Docs: Enhance Flex Insights

Now we need to link the IVR interaction to another Flex Task (inbound call). To do this, we need a common conversation_id for both the IVR and the inbound call. We'll set the initial Call SID as the unique identifier.

To set this unique identifier, we'll use the Flex Insights conversations.conversation_id attribute for all the Tasks involved. By default, Flex Insights will generate a unique conversation_id for every task. To link the Tasks into a single conversation, we'll override this behavior by using the Call SID as the conversation_id explicitly. This tells Flex Insights to link the IVR and the Flex inbound call together.

In this example, Twilio Studio and Twilio Functions are used to set the conversation_id on the IVR task.

Studio

Docs: Studio

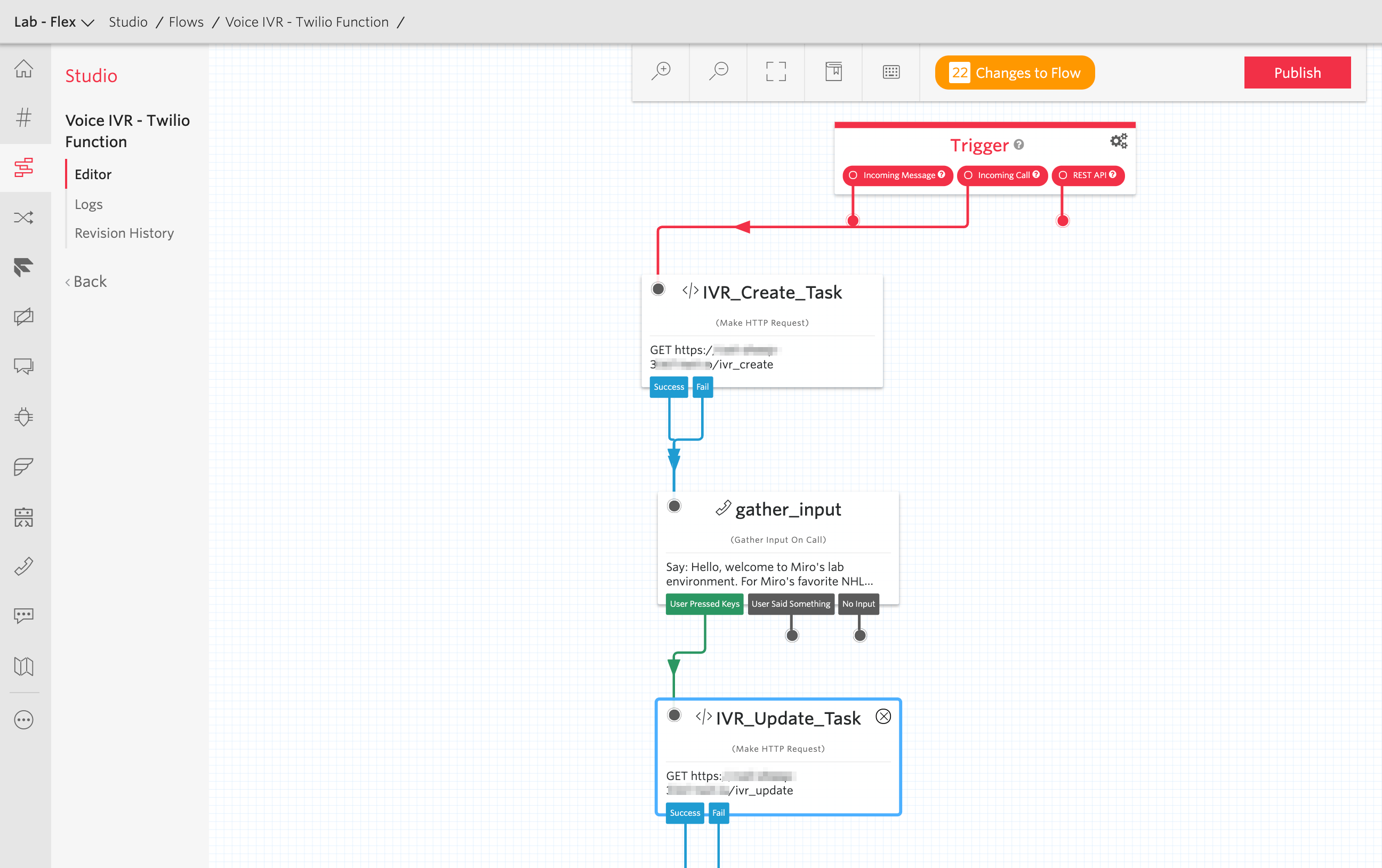

We need to create two widgets that call two functions: ‘IVR_Create_Task’ and ‘IVR_Update_Task’. We’ll place them around the IVR gadget as shown in the image below.


IVR_Create_Task

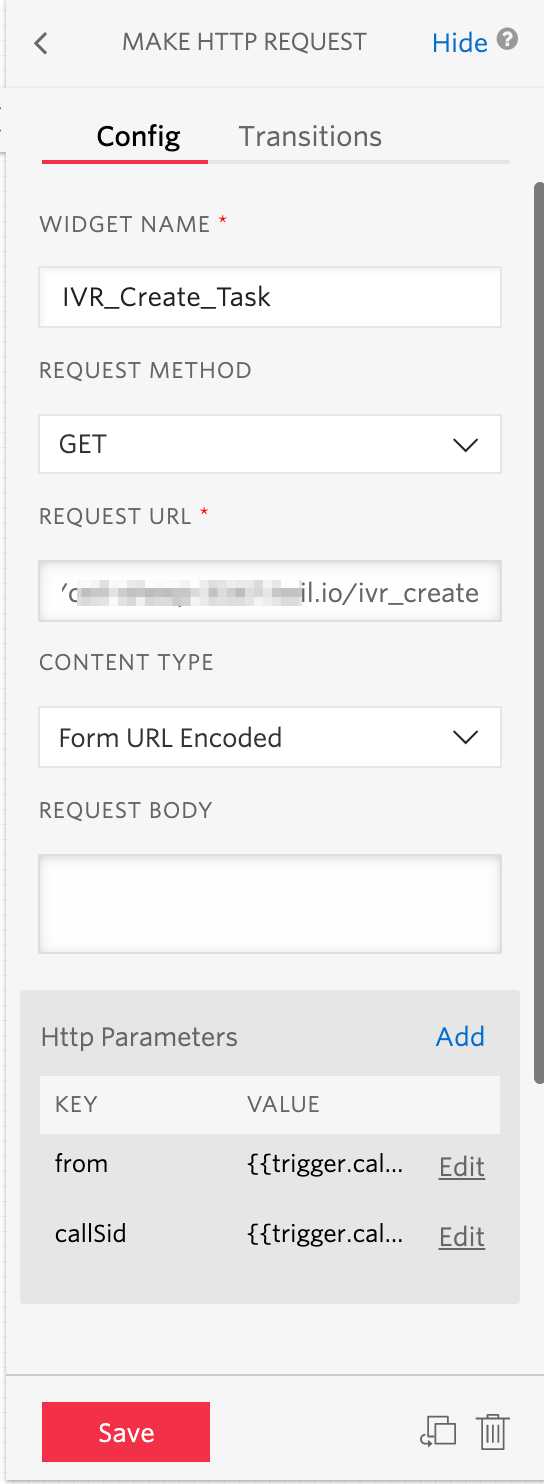

We can use either the ‘Run Function’ or the ‘Make HTTP request’ widget. In this example, I use the ‘Make HTTP request’ widget with the following settings:

Request_URL
  • The URL to your function ‘IVR_Create_Task’ which is described below.
HTTP parameters
  • from = {{trigger.call.Caller}}
    It is useful to see the caller number in Flex Insights.
  • callSid = {{trigger.call.CallSid}}
    The Call SID is used as the Conversation ID.

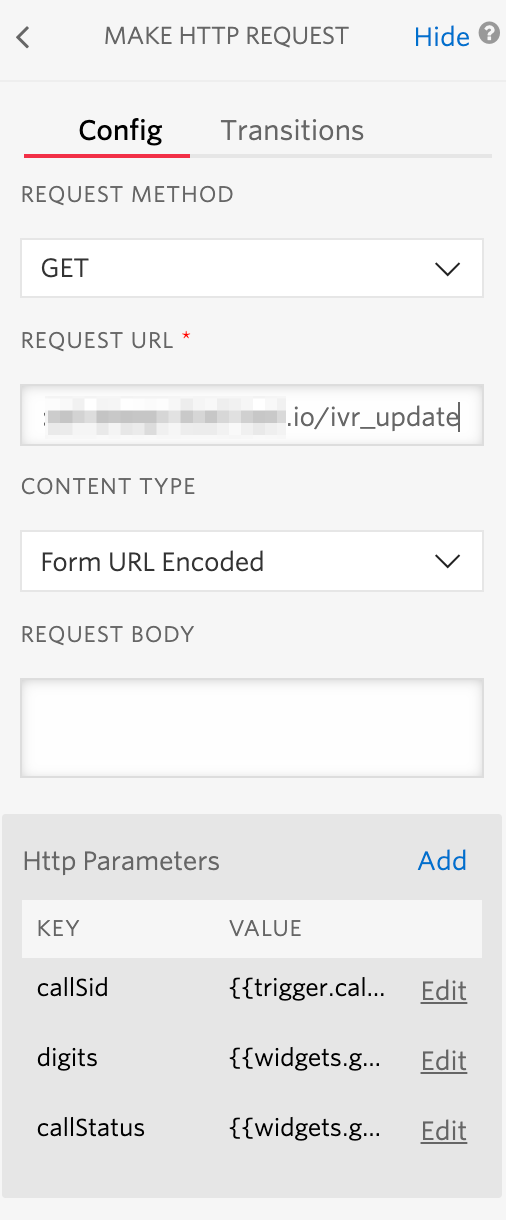

IVR_Update_task

We can also use either the ‘Run Function’ or the ‘Make HTTP request’ widget here. In this example, I use the ‘Make HTTP request’ widget with the following settings:

Request_URL
  • The URL to your function 'IVR_Update_Task' which is described below.
HTTP parameters
  • callSid = {{trigger.call.CallSid}}
    We use the Call SID to search for the task that we created before the IVR.
  • digits = {{widgets.gather_input.Digits}}
    Information about digit(s) which is pressed in the IVR (called ‘gather_input’ in this example).
  • callStatus = {{widgets.gather_input.CallStatus}}
    Call status lets us determine if the call was abandoned during the IVR or not. We will use this information in our update IVR function below.


Function

Docs: Functions

Create IVR Task

This function is called from the Studio ‘IVR_Create_Task’ widget and will:

  • Add the Call SID to the ‘conversation_id’ attribute
    This is required in order to link the IVR and Flex in Flex Insights.
  • Set the attribute ‘virtual’ to ‘Yes’
    The attribute indicates whether the segment should be included in general reports. If ‘virtual’ is ‘Yes’ then these Segments have a special purpose and should not appear in reporting on top of conversations.
  • Set the attribute ‘abandoned’ to ‘Yes’ and ‘abandoned_phase’ to ‘IVR’
    If the call gets abandoned during the IVR stage, you can create a report on this information to see the % of calls that do not get through the IVR. If the call gets through the IVR, then we will modify these two attributes in the function ‘IVR - Update Task’.
  • Set the attribute ‘communication_channel’ to ‘IVR’
    This channel can be used for separate reporting in Flex Insights. By default, there are voice and chat channels. It’s up to you if you want to keep it as ‘voice’ or ‘IVR’.
    If you do not want to change the 'voice' channel, you can modify one of the custom attributes (conversation_attribute_X) and use the attribute to filter IVR calls.
  • Set the help attribute ‘IVR_time_start’ to the current timestamp
    We will use this attribute to measure the number of seconds spent in the IVR.

Function:

  • Name: IVR - Create Task
  • Path: /ivr_create
  • Access Control: enable Check for valid Twilio signature
  • Code:
exports.handler = function(context, event, callback) {

 var timestamp = new Date();
 let from_number = event.from;

 let client = context.getTwilioClient();

 let conversations = {};
 conversations.conversation_id = event.callSid;
 conversations.virtual = "Yes";
 conversations.abandoned = "Yes";
 conversations.abandoned_phase = "IVR";
 conversations.communication_channel = "IVR";
 conversations.IVR_time_start = timestamp.getTime();

 client.taskrouter
   .workspaces(context.TWILIO_WORKSPACE_SID)
   .tasks.create({
     attributes: JSON.stringify({ "from":from_number, conversations}),
     workflowSid: context.TWILIO_NOBODY_WORKFLOW_SID,
     timeout: 300
   }).then(() => {
 callback();
});
}

TWILIO_WORKSPACE_SID and TWILIO_NOBODY_WORKFLOW_SID are environmental variables configured in Twilio Console > Functions > Configure.

Update IVR Task

This function is called from the Studio ‘IVR_Update_Task’ widget and will:

  • Find the task created by the ‘IVR_Create_Task’ function
    It searches for a task with conversation_id = call_SID.
  • Set the attribute ‘IVR_time’
    It uses the help attribute ‘IVR_time_start’ created by the ‘IVR_Create_Task’ function and the timestamp of the variable ‘IVR_end’. It’s rounded to seconds.
  • Set the metric ‘queue_time’ to 0
    There is no queue, therefore we do not want it to have any value in Flex Insights.
  • Set the attribute ‘IVR_path’
    The digit is brought in the HTTP parameter from Studio.
  • Set the ‘abandoned’ and ‘abandoned_phase’ attributes
    We bring the call status in the HTTP parameter from Studio. If the call is completed, it means that it was abandoned in the IVR. If the call is not completed, it means it moved on in Studio to the next widget.
  • Set the task ‘assignmentStatus’ to ‘canceled’
    This is important because we want to see the real time of the IVR segment in Flex Insights. If you let the task cancel by time out (5 minutes by default), the IVR segment time in Flex Insights will be the time of cancelation.

Function:

  • Name: IVR - Update Task
  • Path: /ivr_update
  • Access Control: enable Check for valid Twilio signature
  • Code:
exports.handler = function(context, event, callback) {

 var IVR_end = new Date();
 let callStatus = event.callStatus;
 let digits = event.digits;

 let client = context.getTwilioClient();

 let taskFilter = `conversations.conversation_id == '${event.callSid}'`;

 //search for the task based on the CallSid attribute
   client.taskrouter.workspaces(context.TWILIO_WORKSPACE_SID)
       .tasks
       .list({evaluateTaskAttributes: taskFilter})
       .then(tasks => {

           let taskSid = tasks[0].sid;
           let attributes = {...JSON.parse(tasks[0].attributes)};
           let IVR_time = Math.round((IVR_end - attributes.conversations.IVR_time_start) / 1000);

           attributes.conversations.queue_time = 0;

           attributes.conversations.ivr_path = digits;
           attributes.conversations.ivr_time = IVR_time;

           //was the call abandoned?
           if (callStatus == "completed") {
               attributes.conversations.abandoned = "Yes";
               attributes.conversations.abandoned_phase = "IVR";
           } else {
               attributes.conversations.abandoned = "No";
               attributes.conversations.abandoned_phase = null;
           }

           //update the task
           client.taskrouter.workspaces(context.TWILIO_WORKSPACE_SID)
               .tasks(taskSid)
               .update({assignmentStatus: 'canceled',
                   reason: 'IVR task',
                   attributes: JSON.stringify(attributes)
               })
               .then(task => {
                   callback();
               })
               .catch(error => {
                   console.log(error);
                   callback(error);
               });

       })
       .catch(error => {
           console.log(error);
           callback(error);
       });
}

This example of IVR Studio and Functions is for a single layer IVR. If you have a more extended IVR tree and/or “repeat the choices” logic, then you need to adjust your function to not replace the last chosen digit value but to append it to ‘IVR_path” (i.e. 3 > 6 > 2).

Flex Task

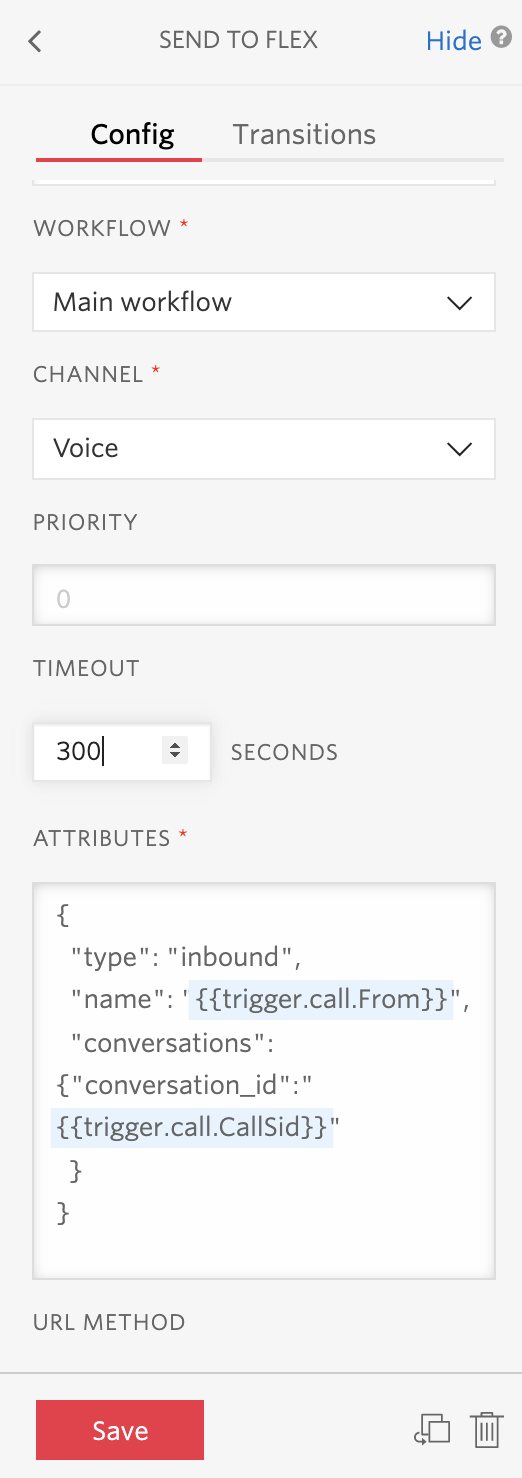

The Flex Task is created automatically by the widget ‘Send To Flex’. All you need to do is set the ‘conversation_id’ attribute to the same call SID as for the IVR task. Both tasks will then be linked into one conversation in Flex Insights.

JSON attributes - "conversation_id":"{{trigger.call.CallSid}}"


Flex Insights

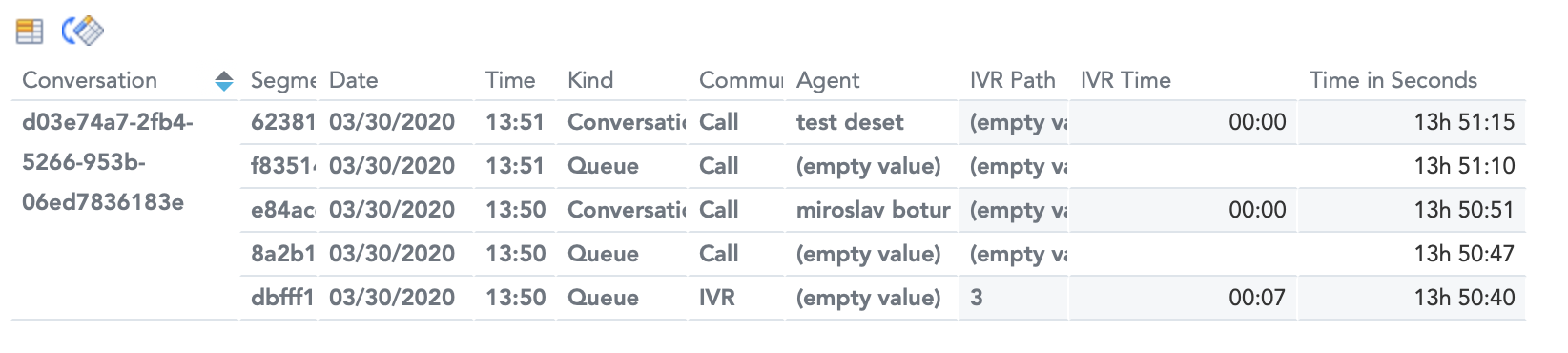

If everything worked as expected, you should see the IVR information in Flex Insights. When you look at a single conversation, you’ll be able to see IVR as one of the interactions, together with waiting in the queue and talking to agents.


You can now create custom metrics and reports that take IVR segments into consideration. A few inspirational examples for building your reports:

  • Number of conversations that are finished in the IVR and never reach agents.
  • Distribution of inbound conversations based on IVR choices.
  • Time your customers spend in the IVR.

Miro Botur is a Flex Insights product specialist at Twilio. You can reach him at mbotur@twilio.com.
