Add Querying and Pagination to a CRUD RESTful API in PHP with API Platform and Symfony 4

Time to read: 4 minutes

August 23, 2019

Written by

Contributor

Add Querying and Pagination to a CRUD RESTful API in PHP with API Platform and Symfony 4.png

Now that we have created a simple CRUD API, let's learn how to retrieve the data we want using query parameters, customize the pagination of the results, then create custom controllers and endpoints.

NOTE: This tutorial is Part 2 of a 2-part series. If you haven't completed Part 1, it is available here.

Adding Custom Operations to Your Endpoints

API platform automatically creates CRUD operations when the resource is created. Custom operations can be assigned to specific routes if an operation is specified. There are two types of operations for collections and items. Collection operations are operations that act on a group of resources such as retrieving all bucket lists. Item operations are operations that act on a single resource such as retrieving one bucket list. For collection operations, the GET and POST routes are implemented with the GET operation being enabled by default. In item operations, the GET, PUT, and DELETE routes are defined with the GET route enabled by default. In order to specify the default collection and items operations, add the following annotation before the class definition and refresh your browser. This change will take place in api/src/Entity/BucketList.php.

Note: This can also be done using XML or YAML.

<?php

namespace App\Entity;

use ApiPlatform\Core\Annotation\ApiResource;
use Doctrine\ORM\Mapping as ORM;

/**
 *
 * @ApiResource(
 *     collectionOperations={"get"},
 *     itemOperations={"get"}
 * )
 */
class BucketList
{
  //...
}

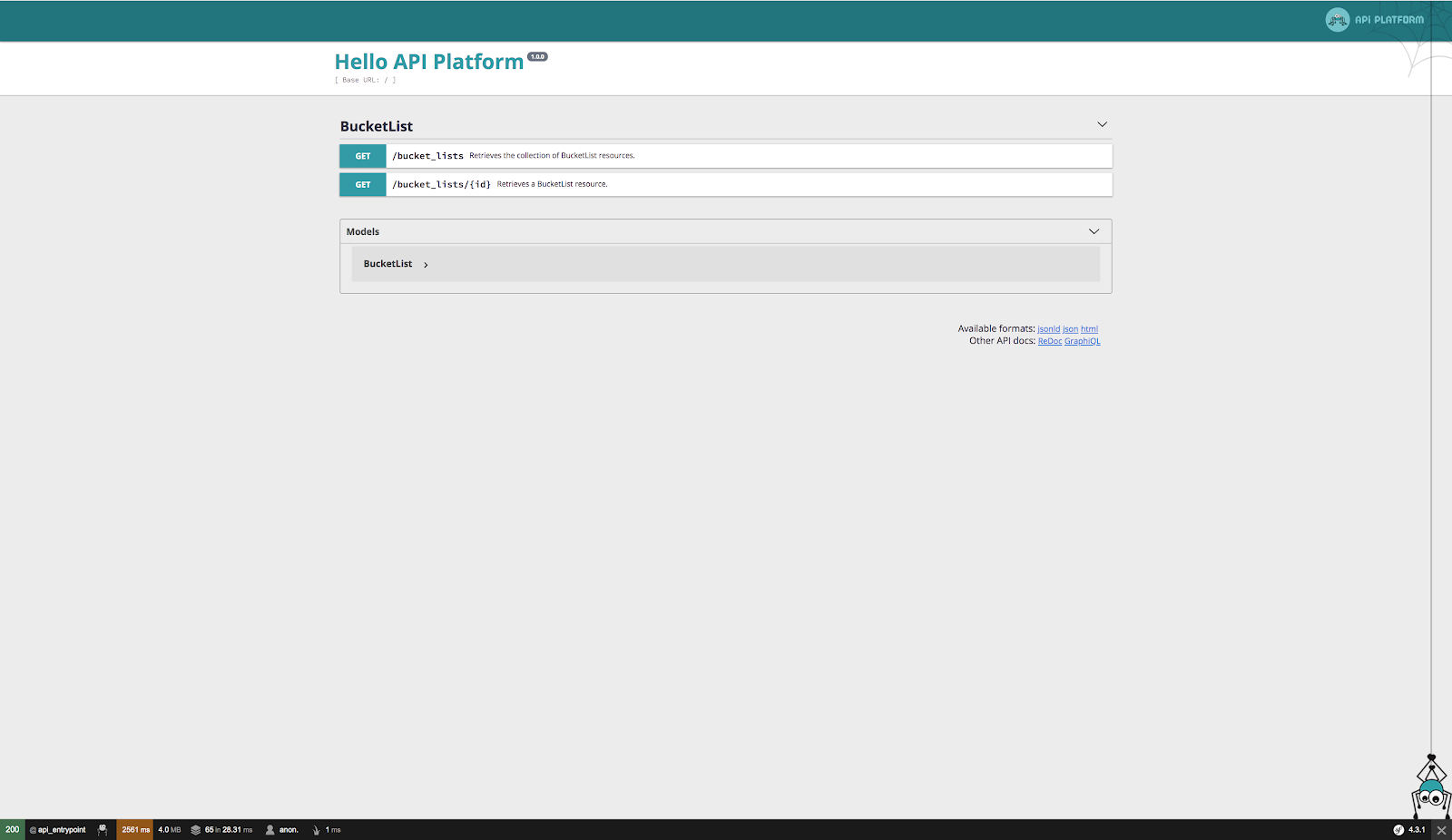

Your routes should now appear as shown below:

This will make the resource ReadOnly. If you want to add the POST endpoint on the collectionOperations, change the collectionOperations to collectionOperations={"get", "post"}. The same can also be applied to the itemOperations to enable the PUT and DELETE endpoints.

Both item and collection operations work independently. This means that if the collection operations are configured and the item operations are not, the GET, PUT, and DELETE operations will be automatically configured and vice versa. For instance, add the following piece of code:

<?php

namespace App\Entity;

use ApiPlatform\Core\Annotation\ApiResource;
use Doctrine\ORM\Mapping as ORM;

/**
 *
 * @ApiResource(
 *     collectionOperations={"get"}
 * )
 */
class BucketList
{
  //...
}

You should expect to see all the item operations enabled by default as shown in the image below:

Adding Custom URLs

API Platform also enables adding custom URLs to your routes and overriding the default ones. In order to do that, add the following piece of code.

<?php

namespace App\Entity;

use ApiPlatform\Core\Annotation\ApiResource;
use Doctrine\ORM\Mapping as ORM;

/**
 *
 * @ApiResource(
 *     collectionOperations={"get" ={"path"="/customCollectionBucketListEndPoint"}},
 *     itemOperations={"get" ={"path"="/customItemBucketListEndPoint"}}
 * )
 */
class BucketList
{
  //...
}

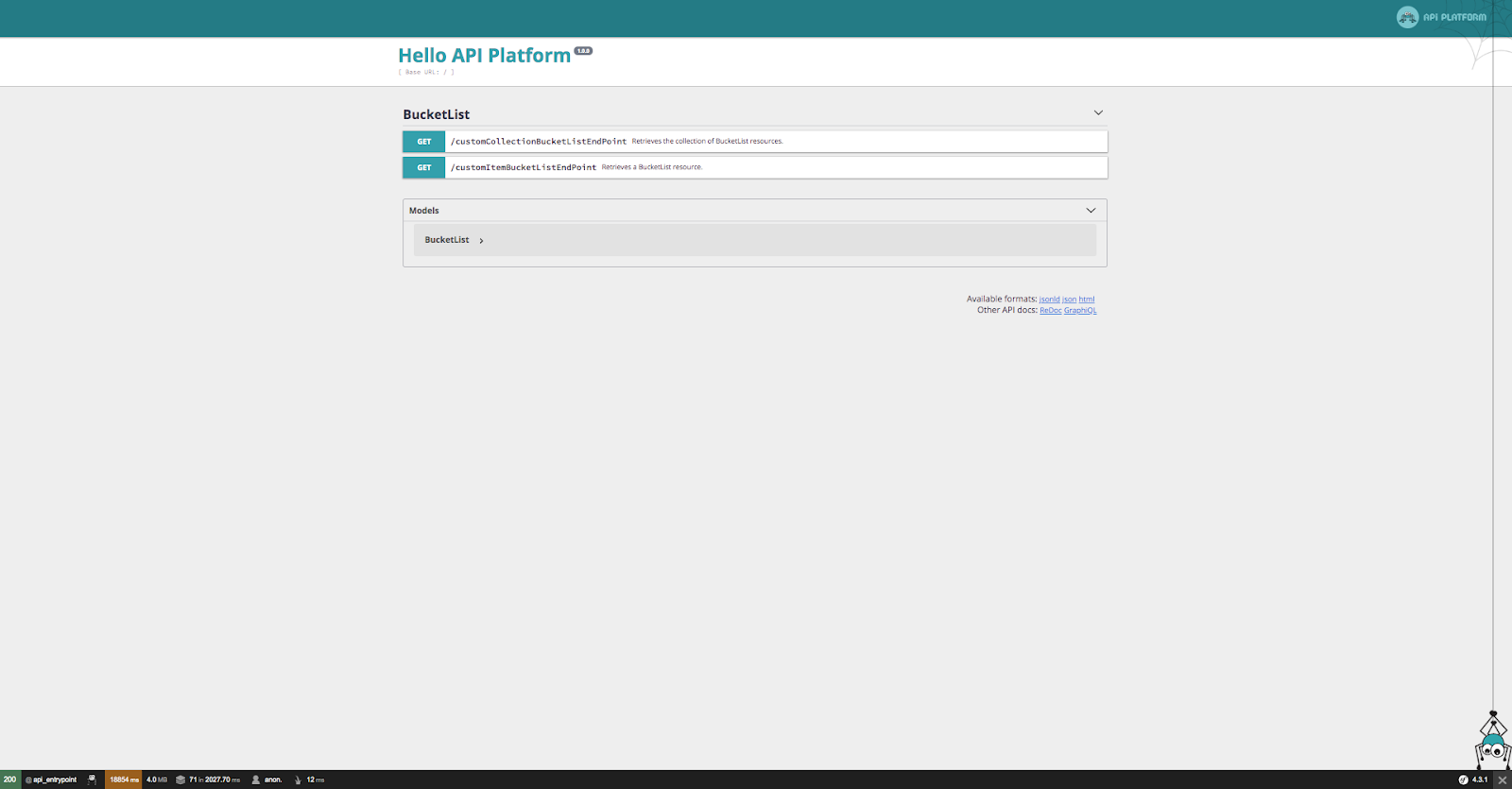

After refreshing your browser, the resulting screen should be similar to:

Adding a Custom Controller to Modify Endpoint Behavior

API Platform uses Symfony's routing system to register custom operations and controllers. We'll need to first create the controller at api/src/Controller/CustomController.php.

Add the following code snippet in this file.

<?php

namespace App\Controller;

use Symfony\Component\HttpFoundation\JsonResponse;
use Symfony\Component\Routing\Annotation\Route;

class CustomController
{
    /**
     * @Route(
     *     name="custom_controller",
     *     path="/customController",
     *     methods={"GET"},
     *     defaults={"_api_item_operation_name"="custom_controller_example"}
     * )
     */
    public function __invoke()
    {
        return new JsonResponse('Hi there!');
    }
}

Next, we need to create an Entity that will use the custom controller. Create the file api/src/Entity/BucketListItems.php and add the following code.

<?php

namespace App\Entity;

use ApiPlatform\Core\Annotation\ApiResource;
use Doctrine\ORM\Mapping as ORM;
use App\Controller\CustomController;


/**
 * @ApiResource(
 *     itemOperations={
 *         "custom_controller_example"={
 *             "route_name"="custom_controller",
 *             "swagger_context"={
 *                  "parameters"={}
 *              }
 *         }
 *     },
 *    collectionOperations ={}
 * )
 * @ORM\Entity
 */
class BucketListItems
{
    /**
     * @var int The id of a bucketlist.
     *
     * @ORM\Id
     * @ORM\GeneratedValue
     * @ORM\Column(type="integer")
     */
    private $id;
}

To generate the new models in the database, run the following command run docker-compose exec php bin/console doctrine:schema:update --force.

Once you refresh your browser, you should see the resulting screen below.

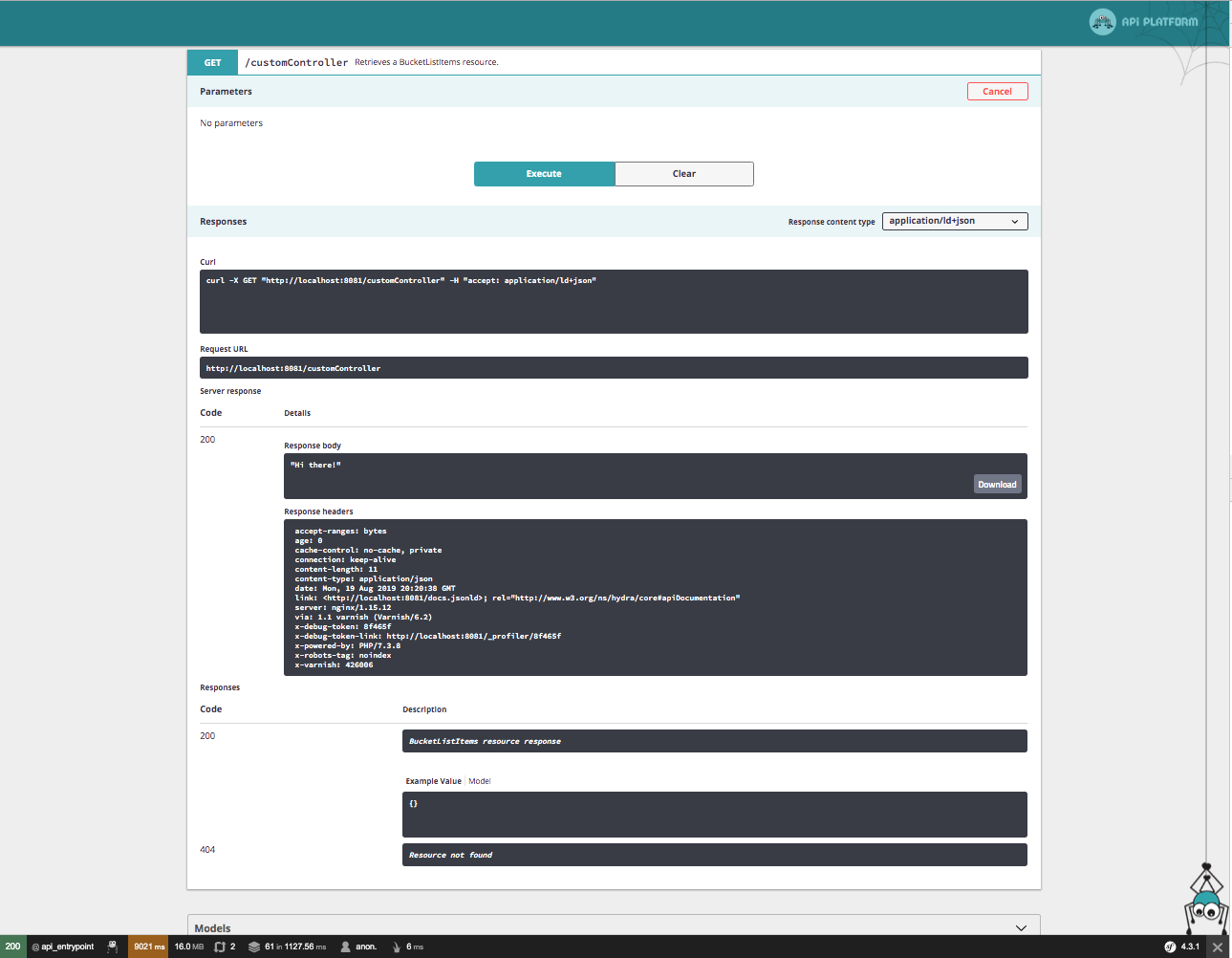

Hit the Try out button and click Execute. You should expect to see the screen below.

You can add more logic to the custom controller to suit your business needs.

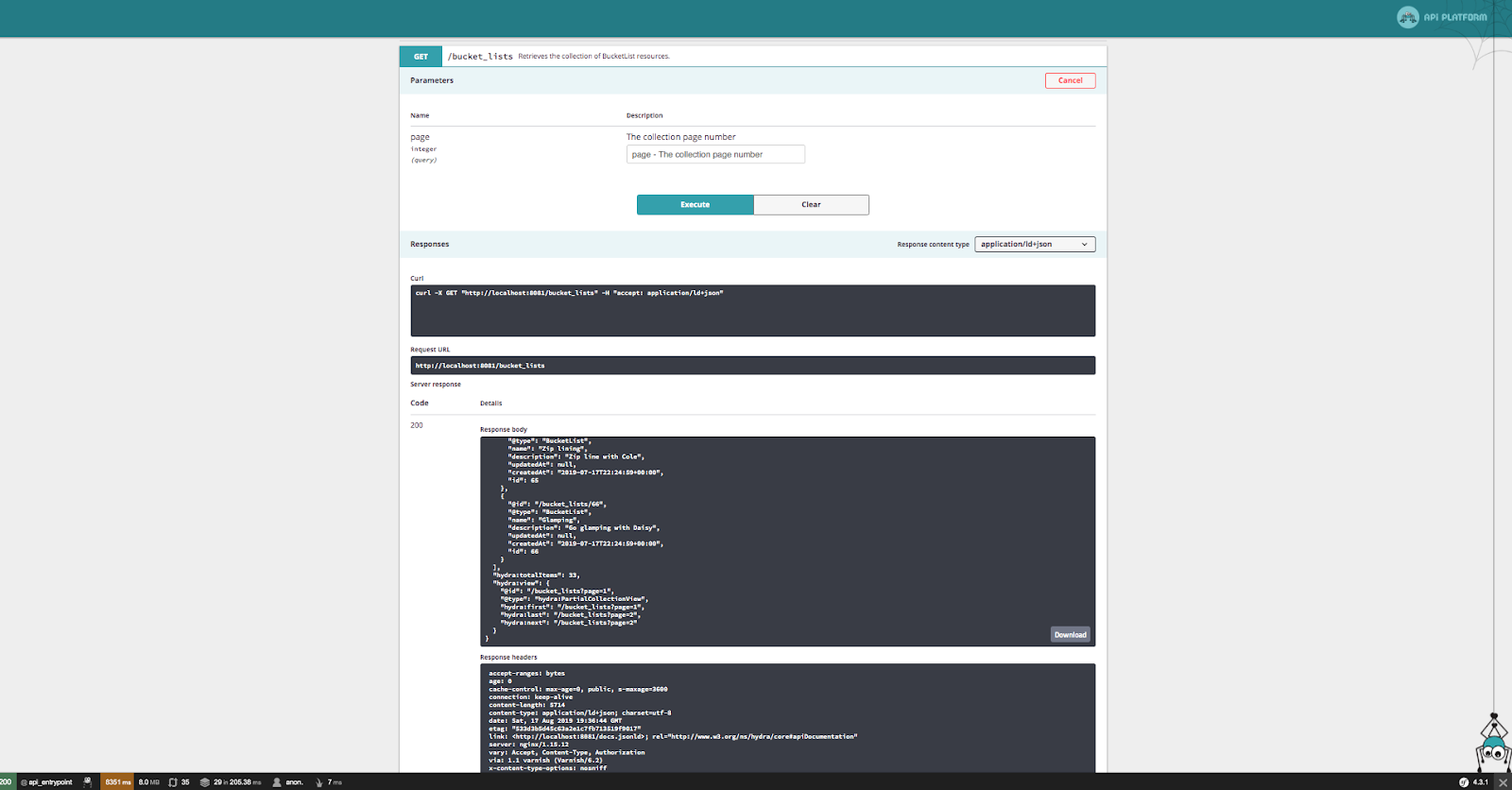

API Platform enables pagination by default with each collection containing 30 items per page. The example below shows a bucket list with thirty (30) items inside. Navigating to the GET /bucket_lists endpoint reveals only thirty items on the first page. The extra items are to be displayed on the next page.

API platform displays the total items available in your database and other page routes that have been created automatically. Enter the page number under The collection page number, then click Execute to navigate to the next page.

There are some instances where pagination should be disabled, such as having too few items to display. In these instances add the following lines of code to api/config/packages/api_platform.yaml.

api_platform:
    collection:
        pagination:
            enabled: false

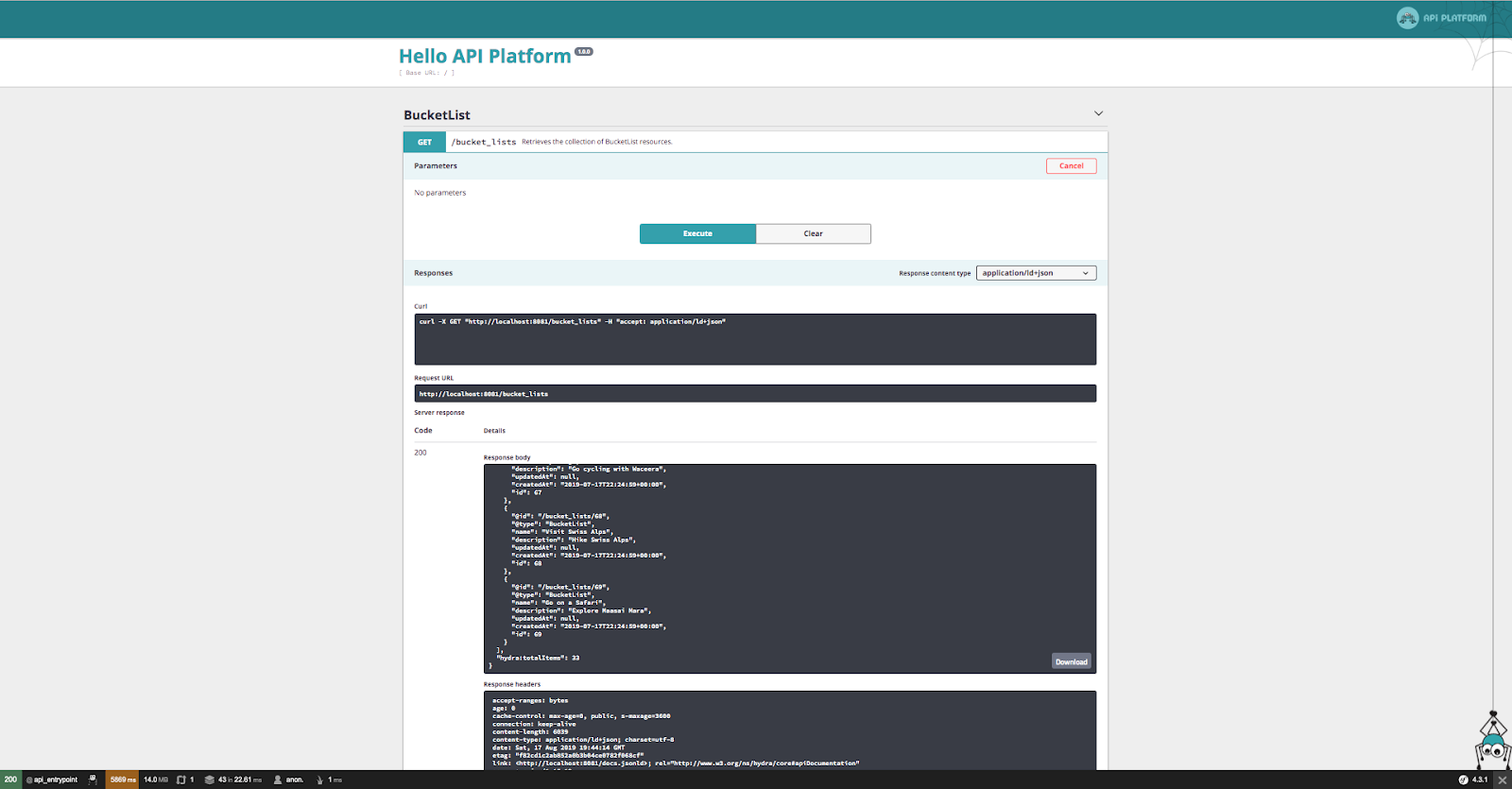

The input box for specifying the collection page number will be disabled and the resulting screen will appear as below when the Execute button is clicked.

Pagination can also be disabled for a resource by adding the following annotation in the related entity class.

<?php

namespace App\Entity;

use ApiPlatform\Core\Annotation\ApiResource;
use Doctrine\ORM\Mapping as ORM;

/**
 * @ApiResource(attributes={"pagination_enabled"=false})
 */
class BucketList
{
  //
}

Changing the number of items per page can be made globally or for a specific resource. Add the following annotation in your resource and refresh your browser to change the number of items per page.

<?php

namespace App\Entity;

use ApiPlatform\Core\Annotation\ApiResource;
use Doctrine\ORM\Mapping as ORM;

/**
*
* @ApiResource(attributes={"pagination_items_per_page"=10})
* @ORM\Entity
*/
class BucketList
{
  //
}

Add the following piece of code in api/config/packages/api_platform.yaml to globally modify pagination for all resources.

api_platform:
    collection:
        pagination:
            items_per_page: 10

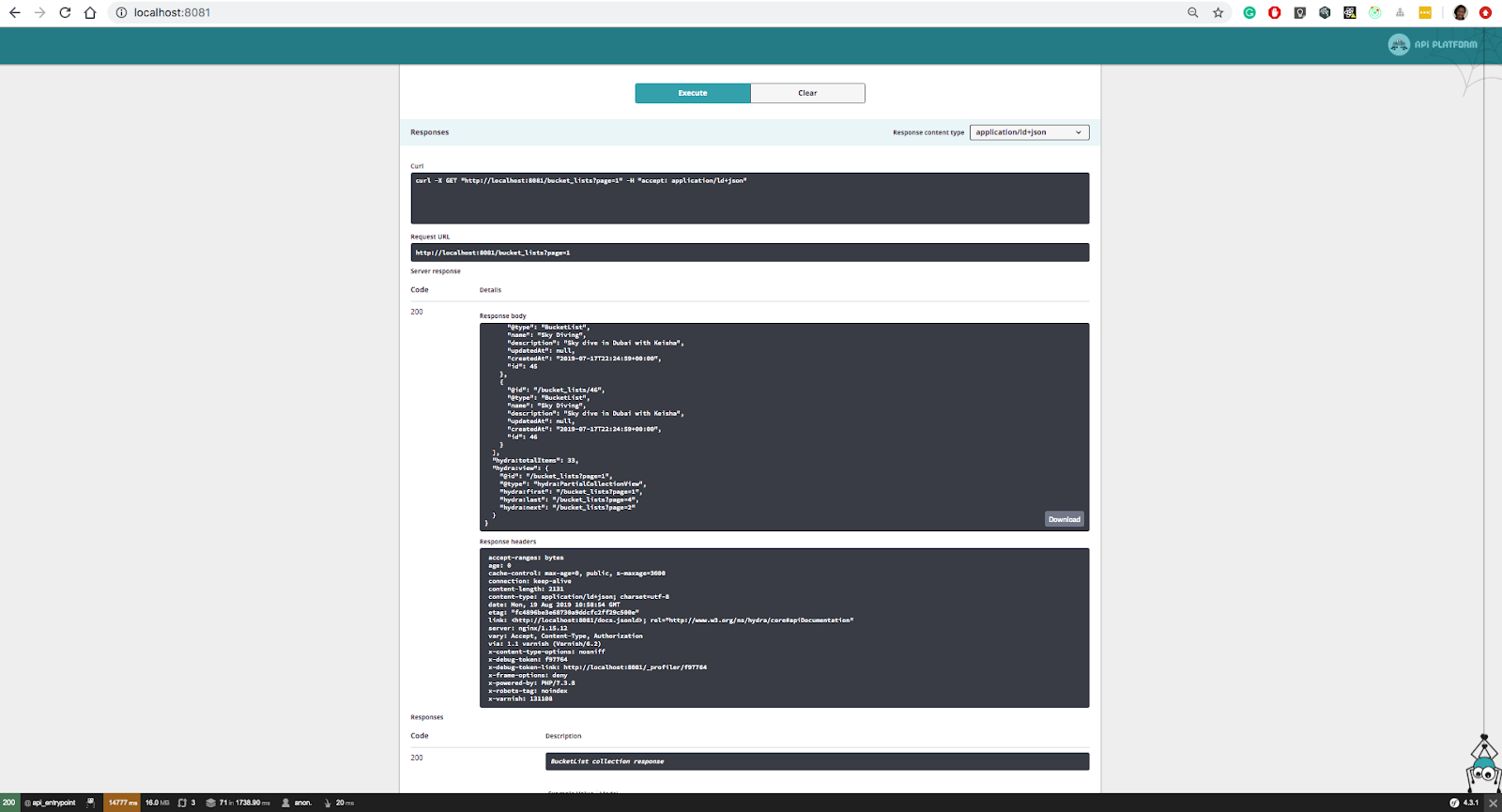

The resulting pagination results will be as shown below:

Implement Search Queries in the GET endpoints

It's not necessary to write custom endpoints for filtering as API Platform provides support out of the box. If we want to filter by name in our API for example, add the following annotation and refresh your browser.

<?php

namespace App\Entity;

use ApiPlatform\Core\Annotation\ApiResource;
use Doctrine\ORM\Mapping as ORM;
use Symfony\Component\Validator\Constraints as Assert;
use ApiPlatform\Core\Annotation\ApiFilter;
use ApiPlatform\Core\Bridge\Doctrine\Orm\Filter\SearchFilter;

/**
*
* @ApiResource()
* @ApiFilter(SearchFilter::class, properties={"name": "exact"})
* @ORM\Entity
*/
class BucketList
{
  //
}

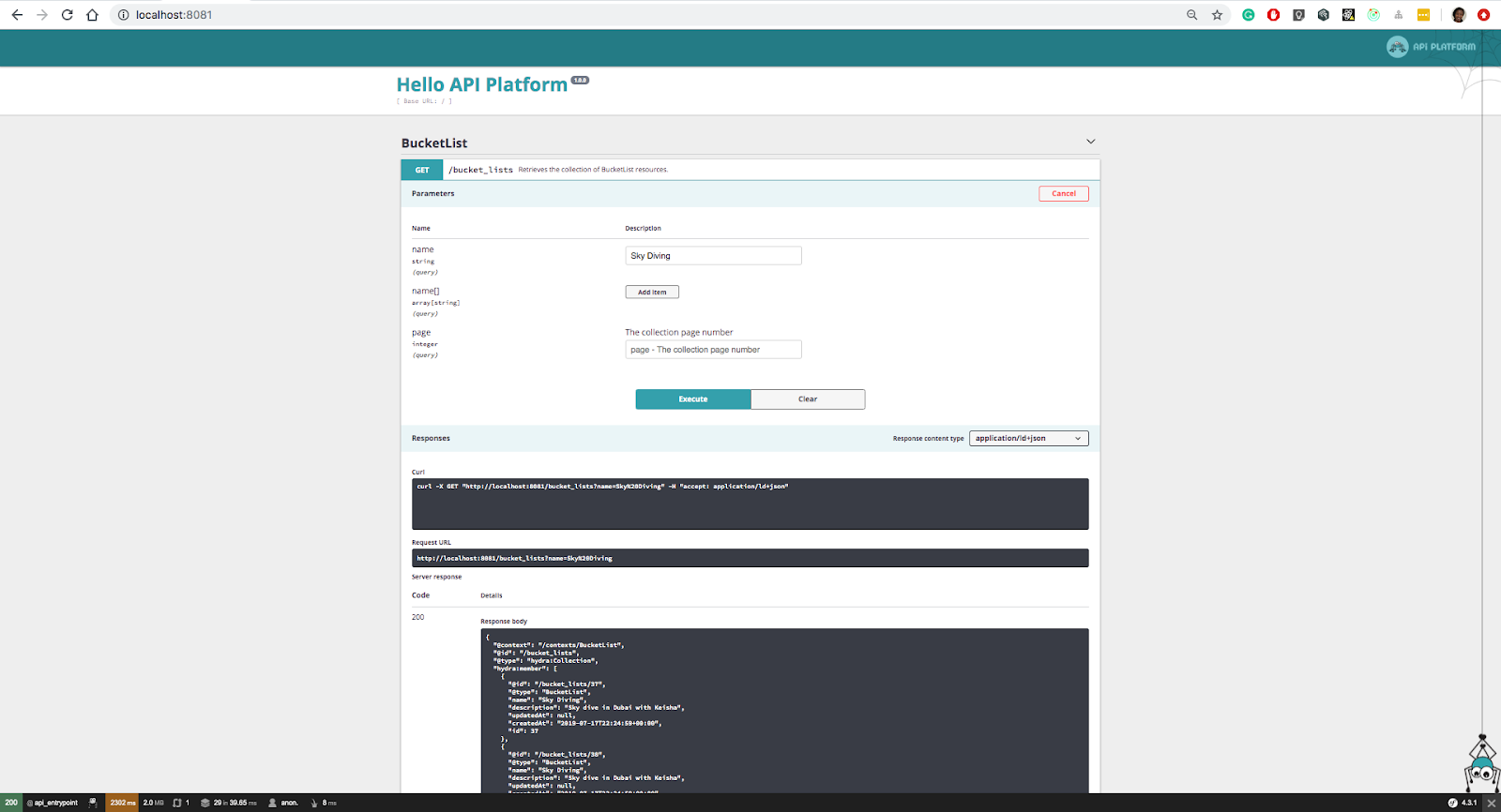

As you can see above, all bucket lists with the name Sky Diving are returned in the response. Responses can be further customized by combining filters. Simply add the property name of the second filter. i.e @ApiFilter(SearchFilter::class, properties={"name": "exact", "description": "exact"}).

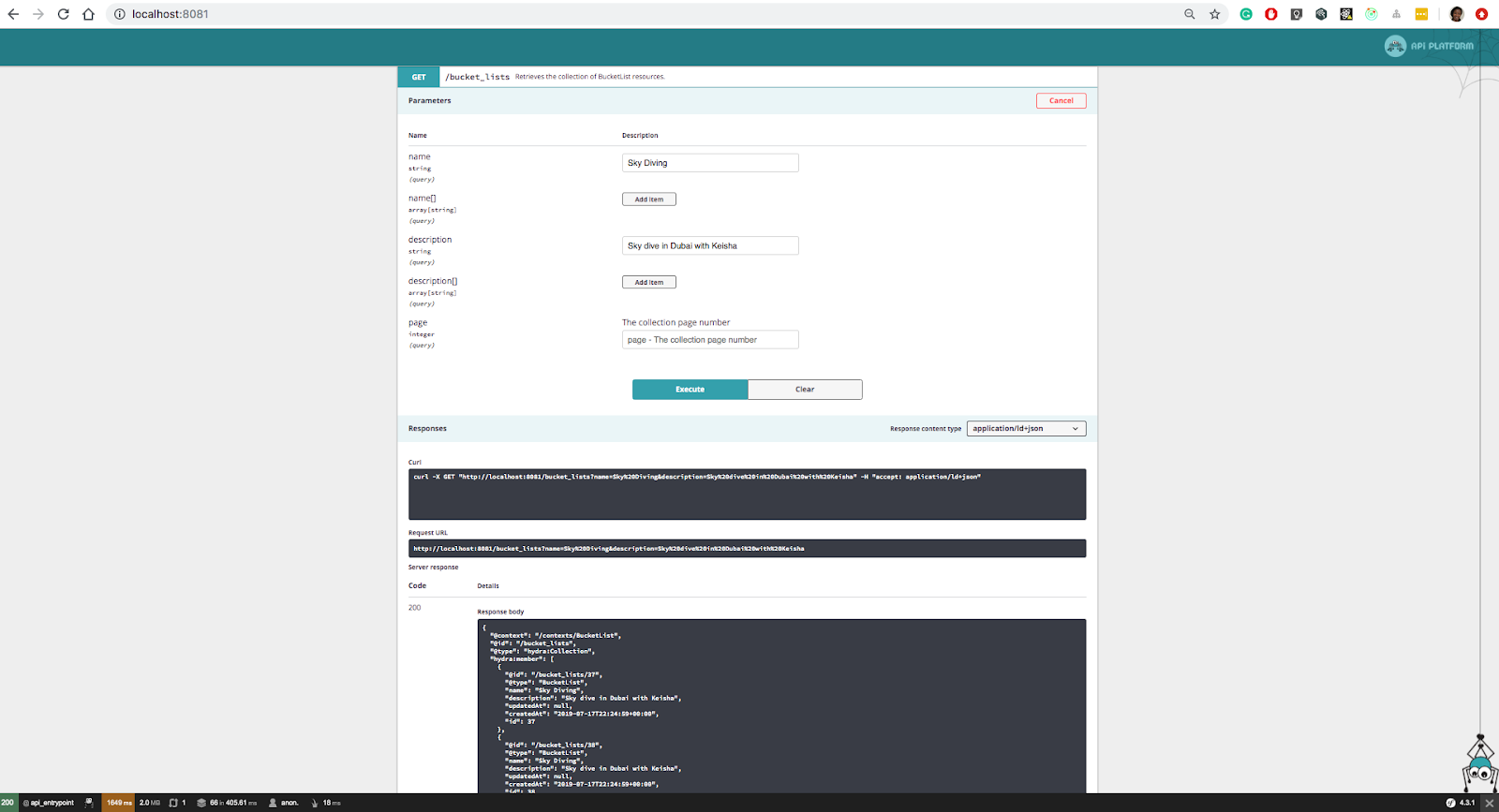

The resulting, filtered set will be as follows:

Note the URL: http://localhost:8081/bucket_lists?name=Sky%20Diving&description=Sky%20dive%20in%20Dubai%20with%20Keisha

The query parameters are automatically appended. The SearchFilter class supports a number of filter strategies such as:

partial searches for fields containing the text you will provide on the API client. It uses the MYSQL LIKE %searchText% operator.
start searches for fields that start with the text you will provide on the API client. It uses the MYSQL LIKE searchText% operator.
end searches for fields that end with the text you will provide on the API client. It uses the MYSQL LIKE %searchText operator.
word_start searched for fields containing words that start with the text provided. It uses the MYSQL LIKE text% OR LIKE % text% operator.

Summary

In this tutorial, we have learned how to add custom operations and URLs on the resource we created, pagination, and filters to our search queries. If you would like to dive deep into more API platform features you can have a look at their documentation page. As always, I would love to hear from you! You can reach me on Twitter or LinkedIn. Happy hacking!
