twilio/call-to-action

WhatsApp, Facebook Messenger

• VOICE_CALL and VOICE_CALL_REQUEST are currently a private beta feature in select regions.
• If the content template is being sent in session over WhatsApp without approval, only 3 buttons are allowed.
• On WhatsApp, a card must be approved as a template before it can be sent. Additional approval steps are required if you use variables with twilio/card. A valid media sample is required if a twilio/card template is created with media and/or variables and you plan to submit this template to WhatsApp for approval. Static media URLs should resolve to publicly hosted media files. Variable media URLs should include a valid media URL suffix in the variable declaration.
• Each approved variable WhatsApp card template can include only one type of media. WhatsApp classifies approved templates into 1 of 3 types of media headers (Image, Video, Document) based on the sample that was submitted. Once the template has been approved another type of media header can't be sent using the template.
  • For example, if a template is approved with an image, you can't send a video using that same template.
• If the template's body starts or ends with a variable or has two variables next to each other, the template won't be approved by WhatsApp without a sample variable. For additional information about variables, see Using Variables with Content Templates.
• When creating your template, ensure that the phone number in the actions array below is valid. Otherwise, the template will fail to send.
• WhatsApp footers translate to subtitles in twilio/cards.
• Template approval is required if multiple buttons are present

body:

• Type: string
• Required: yes
• Variable Support: yes
• Description: The text of the message you want to send. This is included as a regular text message.
  • Maximum 640 characters

actions:

• Type: array
• Required: Yes
• Variable Support: Yes
• Description: Call to action templates support URL, PHONE, COPY_CODE, and VOICE_CALL buttons.

actions:

URL:

• Supported channels
  • RCS, WA, FBM
• Parameters
  • type: URL
  • title: Button text of URL redirect button. Variables are not supported. Max 25 chars.
  • url: URL opened when the user clicks the button. Variables are supported at the end of the URL string.

PHONE:

• Supported channels
  • RCS, WA, FBM
• Parameters
  • type: PHONE
  • title: Button text of URL redirect button. Variables are not supported. Max 25 chars.
  • phone: Phone number to call when the recipient taps the button. In E.164 format. Variables aren't supported.

VOICE_CALL:

• Supported channels
  • WA
• Parameters
  • type: VOICE_CALL
  • title: Button text of VoIP call button. Variables aren't supported. Maximum 25 characters.
  • ttl_minutes (Optional) The lifespan of the button in minutes. After this time expires, the button can't be used to start a call to the business. You can use variables. The default is 10080 minutes (7 days). The expected value is an integer value between 1 and 43200 minutes (30 days).

VOICE_CALL_REQUEST:

• Supported channels
  • WA
• Parameters
  • type: VOICE_CALL_REQUEST

COPY_CODE:

• Supported channels
  • WA
• Parameters
  • type: COPY_CODE
  • title: Button text of copy code button. Variables aren't supported. Maximum 25 characters.
  • code: Coupon code that is copied to end user clipboard after clicking button. Variables are supported.

1
// Install the C# / .NET helper library from twilio.com/docs/csharp/install
2

3
using System;
4
using Twilio;
5
using Twilio.Rest.Content.V1;
6

7
     TwilioClient.Init(accountSid, authToken);
8

9
    // define the twilio/call-to-action type
10
    var twilioCallToAction = new TwilioCallToAction.Builder();
11

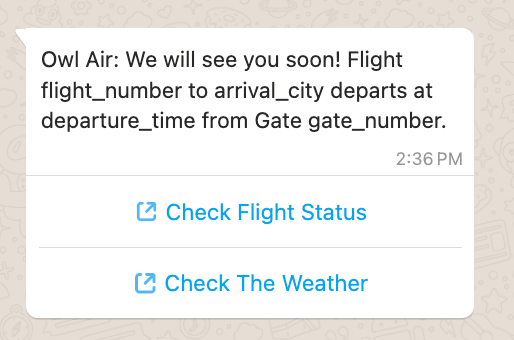

    twilioCallToAction.WithBody("Owl Air: We will see you soon! Flight {{1}} to {{2}} departs at {{3}} from Gate {{4}}.");
12
    var cta1 = new CallToAction.Builder()
13
        .WithType(CallToActionActionType.Url)
14
        .WithUrl("https://owlair.com/{{5}}")
15
        .WithTitle("Check Flight Status")
16
        .Build();
17
    var cta2 = new CallToAction.Builder()
18
        .WithType(CallToActionActionType.PhoneNumber)
19
        .WithPhone("+15555551234")
20
        .WithTitle("Call Support")
21
        .Build();
22
    twilioCallToAction.WithActions(new List<CallToAction>() { cta1, cta2 });
23

24
    // define all the content types to be part of the template
25
    var types = new Types.Builder();
26
    types.WithTwilioCallToAction(twilioCallToAction.Build());
27

28
    // build the create request object
29
    var contentCreateRequest = new ContentCreateRequest.Builder();
30
    contentCreateRequest.WithTypes(types.Build());
31
    contentCreateRequest.WithLanguage("en");
32
    contentCreateRequest.WithFriendlyName("owl_air_cta");
33
    contentCreateRequest.WithVariables(new Dictionary<string, string>() { {"1", "flight_number"}, {"2", "arrival_city"}, {"3", "departure_time"}, {"4", "gate_number"}, {"5", "url_suffix"} });
34

35
    // create the twilio template
36
    var contentTemplate = await CreateAsync(contentCreateRequest.Build());
37

38
    Console.WriteLine($"Created Twilio Content Template SID: {contentTemplate.Sid}");

1
{
2
    "account_sid": "ACXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
3
    "date_created": "2022-01-15T17:09:58Z",
4
    "date_updated": "2022-01-15T17:09:58Z",
5
    "friendly_name": "owl_air_cta",
6
    "language": "en",
7
    "links": {
8
        "approval_fetch": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX/ApprovalRequests",
9
        "approval_create": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX/ApprovalRequests/whatsapp"
10
        },
11
    "sid": "HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
12
    "types": {
13
        "twilio/call-to-action": {
14
            "actions": [
15
                {
16
                    "url": "https://owlair.com/{{5}}",
17
                    "type": "URL",
18
                    "title": "Check Flight Status"
19
                },
20
                {
21
                    "phone_number": "+15555551234",
22
                    "type": "PHONE_NUMBER",
23
                    "title": "Call Support"
24
                }
25
            ],
26
            "body": "Owl Air: We will see you soon! Flight {{1}} to {{2}} departs at {{3}} from Gate {{4}}."
27
        }
28
    },
29
    "url": "https://content.twilio.com/v1/Content/HXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
30
    "variables": {
31
        "1": "flight_number",
32
        "3": "departure_time",
33
        "2": "arrival_city",
34
        "5": "url_suffix",
35
        "4": "gate_number"
36
    }
37
}
