Build your own Pokemon Go SMS Service with Node.js, Express and Twilio

July 29, 2016
Written by

M5c7qbSM8LgFENCh1_u346mKceQr1QNftQsmyZNZWP1tdZqHWc0sbA2hlhnBcmAYOxZR4K7mtsWqhbYMxgcAaE4tkrbFOjQSGuGHf08UEC2HVcyo9uhiGeVQFKVIpansc94aQKLM-2

Pokemon GO is everywhere right now and if you are like Ash Ketchum or me you want to catch ’em all. This journey can be difficult but tools such as PokeVision can help us on our quest. The problem with these tools is that they require you to actively check them. Let’s build a service using Twilio SMS that notifies you via SMS when certain Pokemon are found around your location.

DISCLAIMER: Pokemon Go doesn’t have an official API and the mechanisms the community uses for tools around the game are shifting constantly. This might totally break.

Now let’s learn how to build this ourselves!

Choose your Starter

To get started we need to make a couple of choices. Unlike the choices that Professor Oak gives you, for this project, you can choose from a variety of programming languages and web frameworks, as long as they can make and receive HTTP requests.

For this tutorial we’ll use a basic Express server and Node.js. The things you need for this journey are:

  • Node.js version 6.0 or higher. Check your version with node -v.
  • A Twilio Account to send and receive SMS – Sign up for free!
  • ngrok – You can read more about ngrok here.

To get a basic Express server, start by cloning the following template branch of this project and install the dependencies:

git clone -b template https://github.com/dkundel/pokemon-go-sms.git
cd pokemon-go-sms
npm install

With the code in place, spin up the app by running:

npm start

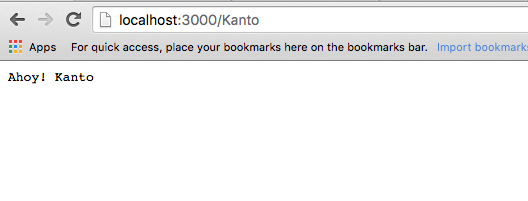

Navigate to http://localhost:3000/Kanto. You should see a message saying Ahoy! Kanto. Feel free to change Kanto in the URL with other things. It should change the message.

Screen Shot 2016-07-29 at 3.49.02 PM.png

You can’t be the very best on this journey without having the necessary data. Or in other words you need your Pokedex. In our case we will use a Node module called pokespotter. It’s a basic wrapper around the Niantic API that will return you the list of Pokemon around a certain location.

Start by installing pokespotter:

npm install pokespotter --save

Require the pokespotter module at the top of the index.js file.

'use strict';

const express = require('express');
const bodyParser = require('body-parser');
const Pokespotter = require('pokespotter');

You need at least one Pokemon GO account for pokespotter to work. This can be either a Google account or a Pokemon Trainer Club account   Save your account credentials along with the account provider you have chosen (‘google’ if you are using a Google account or ‘ptc’ for Pokemon Trainer Club accounts) as the environment variables PGO_USERNAME, PGO_PASSWORD and PGO_PROVIDER. You can also pass these values directly as arguments to the Pokespotter() call.

Add the following two lines to your index.js file:

const PORT = process.env.PORT || 3000;

const POKEDEX = Pokespotter.Pokedex;
const spotter = Pokespotter(process.env.PGO_USERNAME, process.env.PGO_PASSWORD, process.env.PGO_PROVIDER);

Now add a function that will call spotter.getNearby and executes a function that simply returns the list of Pokemon for now:

const spotter = Pokespotter();

function getPokemonByAddress(address) {
  return spotter.getNearby(address, { steps: 2 }).then(pokemon => {
    return pokemon;
  });
}

app.get('/:address', (req, res) => {

The getNearby method gets two properties. An address or set of coordinates as well as an options object where we specify a steps value. For now we chose 2 which gives you roughly a radius of 200m. The current time for a scan for this radius is roughly 30 seconds. You can reduce this time by passing into the Pokespotter() constructor an array of users. At the current radius 7 spots are visited so the optimal number of accounts will be 7. You can also increase the radius but it also increases the response time significantly.

Now that we have this function we need to consume it. Modify the handler for /:address:

app.get('/:address', (req, res) => {
  getPokemonByAddress(req.params.address).then(pokemon => {
    res.type('application/json').send({result: pokemon});
  }).catch(err => {
    res.type('text/plain').status(500).send('An error occurred. Check your console.');
    console.error(err);
  });
});

Open again http://localhost:3000/Central Park, New York and you should get a first glimpse of the Pokemon around Central Park. Feel free to replace everything after the 3000/ with your own address to check the Pokemon near you.

Identify your Pokemon


For our text messages we are interested in 3 pieces of information for every Pokemon:

  • Name of the Pokemon
  • Distance from location
  • Time till disappearance

The first two are already provided by pokespotter. For the third one we have a timestamp when the Pokemon is going to disappear. We can use that and the moment module to provide the information. Additionally we will sort the result by distance.

npm install moment --save

Require the two modules at the top of the file:

const Pokespotter = require('pokespotter');
const moment = require('moment');

Add a new function that uses moment.duration().humanize() to add a readable version of the duration to every Pokemon and a function that compares the distance of two Pokemon. Alter the getPokemonByAddress function to use the two new functions:

function enhancePokeInfo(pokemon) {
    pokemon.duration = moment.duration(pokemon.expirationTime - Date.now()).humanize();
    return pokemon;
}

function sortClosestPokemon(pokemonA, pokemonB) {
  return pokemonA.distance - pokemonB.distance;
}

function getPokemonByAddress(address) {
  return spotter.getNearby(address, { steps: 2 }).then(pokemon => {
    return pokemon.map(enhancePokeInfo).sort(sortClosestPokemon)
  });
}

Restart the server and refresh the browser. You should see more useful information now.

Enhancing your Pokedex with Twilio


Alright we got the basic information going. But we didn’t want to create a web service for our Pokedex but an SMS service. This is where Twilio SMS comes into play.

In order to receive SMS we need to create a new POST endpoint for our web server that will handle all incoming SMS. Twilio will then pass the content of our SMS and all related information to that endpoint.

First add a function that makes our information look more readable and limits it to only 6 Pokemon to keep the SMS short:

function formatPokeList(pokeList, address) {
  let formattedPokemon = pokeList.map(pokemon => {
    return `${pokemon.name}, ${pokemon.distance}m, ${pokemon.duration}`;
  }).join('\n')
  return `There are the following Pokemon around ${address}:\n${formattedPokemon}`;
}

app.get('/:address', (req, res) => {

Now add a new POST endpoint for /incoming that uses the Body that Twilio sends as an address and logs the lookup result to the console. Feel free to adjust the other endpoint to use the format function, too:

app.get('/:address', (req, res) => {
  let address = req.params.address;
  getPokemonByAddress(address).then(pokemon => {
    res.type('text/plain').send(formatPokeList(pokemon, address));
  }).catch(err => {
    res.type('text/plain').status(500).send('An error occurred. Check your console.');
    console.error(err);
  });
});

app.post('/incoming', (req, res) => {
  let message = req.body.Body;
  res.send(`<Response><Message>Searching for your Pokemon! One moment.</Message></Response>`);
  getPokemonByAddress(message).then(pokemon => {
    console.log(formatPokeList(pokemon, message));
  }).catch(err => {
    console.error(err);
  });
});

app.listen(PORT, () => {
  console.log(`Listening on port ${PORT}`);
});

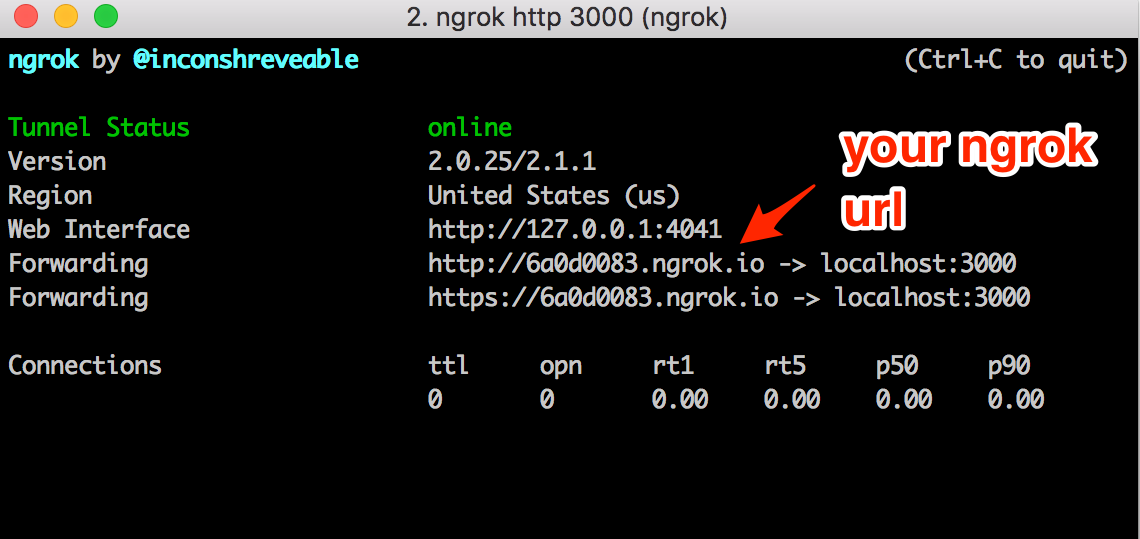

Make sure to restart the server. In order to receive SMS we first need to expose our local server to the web for Twilio to access it. Run in a separate console window:

ngrok http 3000

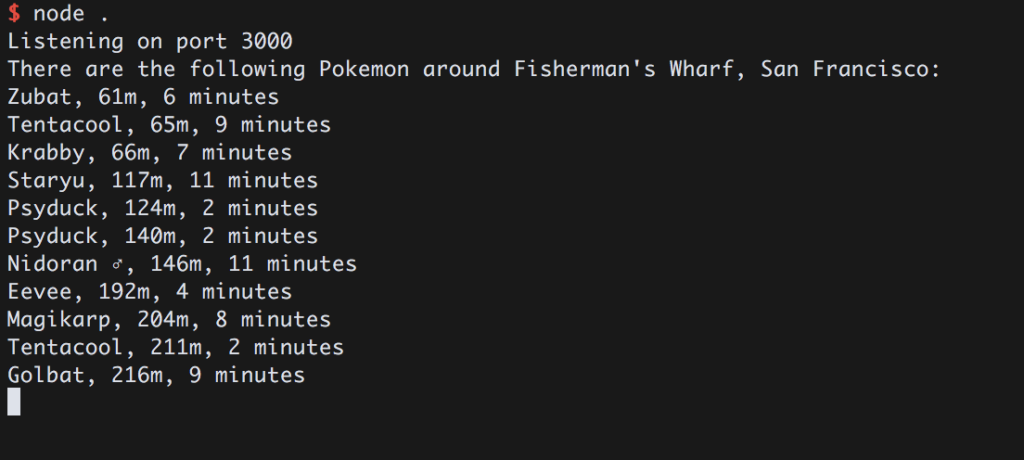

Get a Twilio phone number and configure the webhook URL for incoming messages to be http://.ngrok.io/incoming. Afterwards send an SMS to your Twilio phone number with an address and you should see the result show up in your terminal window.

ScreenshotTerminal

Now the last step is to actually reply with an SMS. If we would know the response immediately we could directly reply to the request that Twilio does to our server using TwiML. However, because it takes a fairly long time to request the data we need to use the Twilio REST API or in our case the Twilio helper library to reply to the message at a later point.

Install it via:

npm install twilio --save

Make sure your Twilio Account SID (TWILIO_ACCOUNT_SID) and Twilio Auth Token (TWILIO_AUTH_TOKEN) are set as the respective environment variables. Require the helper library at the top of your file:

const moment = require('moment');
const twilio = require('twilio');
const client = twilio(process.env.TWILIO_ACCOUNT_SID, process.env.TWILIO_AUTH_TOKEN);

Modify the POST request handler to send a message with the result:

app.post('/incoming', (req, res) => {
  let message = req.body.Body;
  res.send(`<Response><Message>Searching for your Pokemon! One moment.</Message></Response>`);
  getPokemonByAddress(message).then(pokemon => {
    let response = formatPokeList(pokemon, message);
    return client.messages.create({
      from: req.body.To,
      to: req.body.From,
      body: response
    });
  }).catch(err => {
    console.error(err);
  });
});

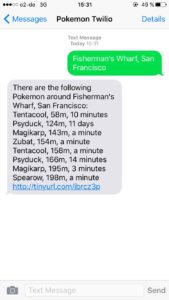

Restart your server and send another SMS to your Twilio phone number. You will now get a reply SMS with the 6 closest Pokemon to that location.

screenshot SMS response

A Wild SMS Appeared!

Lastly we have one more problem. How do we get informed if that one Pokemon that we are looking for shows up at a certain location? Let’s add an SMS notification whenever this happens and an easy way to subscribe to it.

First create a new map instance at the top of your file that will hold all the necessary subscriber information:

const PokeWatchers = new Map();
const PORT = process.env.PORT || 3000;

Next we need to add subscribers to this map. We will add them based on the format of SMS they send. If you send something such as: Subscribe: Pikachu; Alexanderplatz, Berlin it will notify you when there is a Pikachu around Alexanderplatz in Berlin.

For this modify our SMS request handler:

app.post('/incoming', (req, res) => {
  let message = req.body.Body;
  if (message.toLowerCase().trim().indexOf('subscribe:') === 0 && message.indexOf(';') !== -1) {
    message = message.substr('subscribe:'.length);
    let [pokemonName, location] = message.split(';').map(m => m.trim());

    if (POKEDEX.indexOf(pokemonName) !== -1) {
      PokeWatchers.set(`${req.body.From},${pokemonName}`, location);
      res.type('text/plain').send(`We will be on the watch for ${pokemonName} around ${location}`);
    } else {
      res.type('text/plain').send(`The Pokemon with the name ${pokemonName} doesn't exist.`);
    }
  } else {
    res.send(`<Response><Message>Searching for your Pokemon! One moment.</Message></Response>`);
    getPokemonByAddress(message).then(info => {
      let { location, pokemon } = info;
      let response = formatPokeList(pokemon, location);
      return client.messages.create({
        from: req.body.To,
        to: req.body.From,
        body: response
      });
    }).catch(err => {
      console.error('An error occurred');
      console.error(err);
    });
  }
});

Now that we know which Pokemon we should be looking for and where, all we need to do is to look for them on a regular basis. We will be doing this every 60 seconds. Once we found the respective Pokemon for someone, we will also stop looking for it. You can re-subscribe by sending the same message again.

In order to send a message without previously receiving one we again need to use the the Twilio helper library.

Create a new function watchForPokemon and run setInterval when the server starts. Make sure to replace {{YOUR TWILIO NUMBER}} with your own Twilio phone number:

function watchForPokemon() {
  console.log('Looking for Pokemon...');
  for(let [keyInfo, address] of PokeWatchers) {
    let [number, wantedPokemon] = keyInfo.split(',');
    getPokemonByAddress(address).then(pokemon => {
      let availablePokemon = pokemon.filter(poke => poke.name.toLowerCase() === wantedPokemon.toLowerCase());
      if (availablePokemon.length !== 0) {
        let body = formatPokeList(availablePokemon, address);
        let from = '{{YOUR TWILIO NUMBER}}';
        let to = number;
        PokeWatchers.delete(keyInfo);
        return client.messages.create({body, from, to});
      }
      return Promise.resolve(true);
    }).catch(err => {
      console.error('An error occurred. Check your console.');
      console.error(err);
    });
  }
}

app.listen(PORT, () => {
  console.log(`Listening on port ${PORT}`);
  watchForPokemon();
  setInterval(watchForPokemon, 60 * 1000);
});

That’s it! Restart your server and you can start sending Subscribe messages. To test it, I recommend to search for a Pokemon that is very common to the area that you want to watch for. This way you should get instantly an SMS.


Go and Explore

We made it! Hopefully now we will be able to catch ’em all. You don’t have to stop here though. How about filtering out common Pokemon or providing a way to sort them by rarity?
I can’t wait to see what you build with this! Feel free to contact me to tell me what you build or if you have any questions:

Please remember that this system is based on an unofficial API that isn’t guaranteed to always work and they might block you. So you might have to sometimes fallback to travel across the land to search for Pokemon.
