How to Send a Picture on WhatsApp Using Twilio and JavaScript

Time to read: 3 minutes

April 29, 2021
Written by
Ashley Boucher
Twilion

header - How to Send a Picture on WhatsApp Using Twilio and JavaScript

The WhatsApp Business API from Twilio is a powerful, yet easy to use service that allows you to communicate with your users on the popular messaging app.

In this article, we’ll walk you through how you can develop a functional JavaScript program to send an image to a user through WhatsApp.

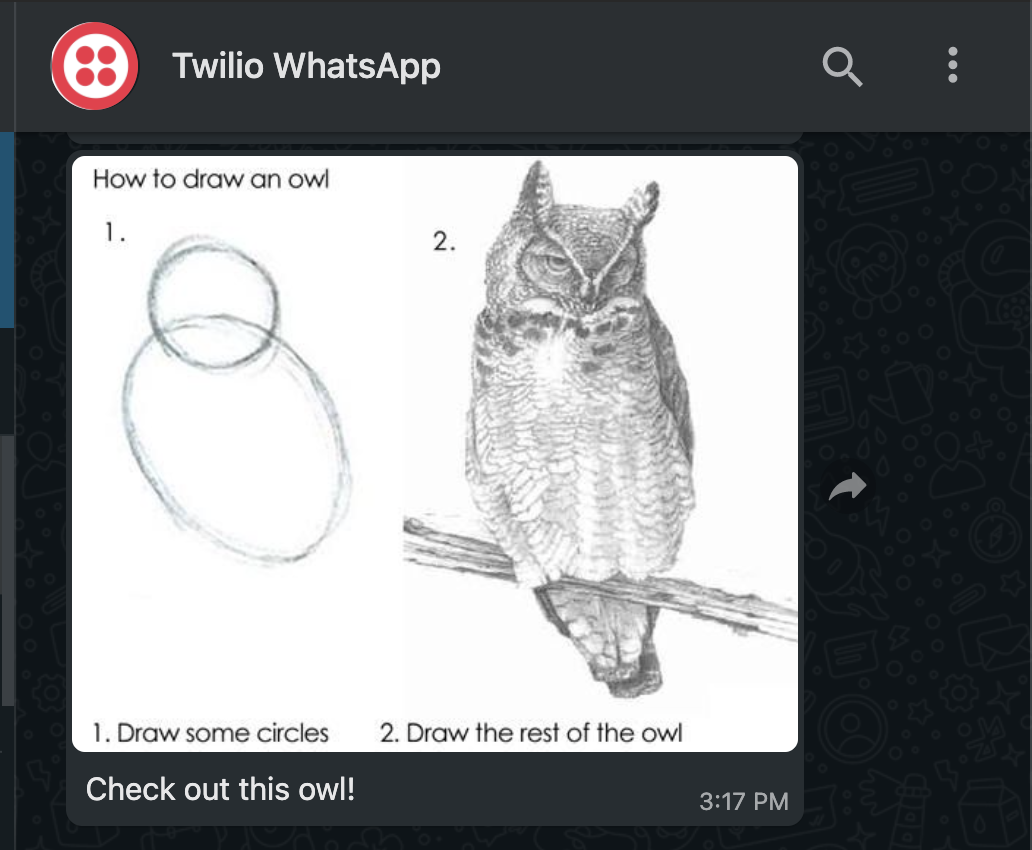

Twilio WhatsApp console with an image and message "check out this owl!"

Prerequisites

To get started with this tutorial, you’ll need the following:

  • A smartphone with an active WhatsApp account, to test the project.

The Twilio WhatsApp sandbox

Twilio provides a WhatsApp sandbox, where you can easily develop and test your application. Once your application is complete you can request production access for your Twilio phone number, which requires approval by WhatsApp.

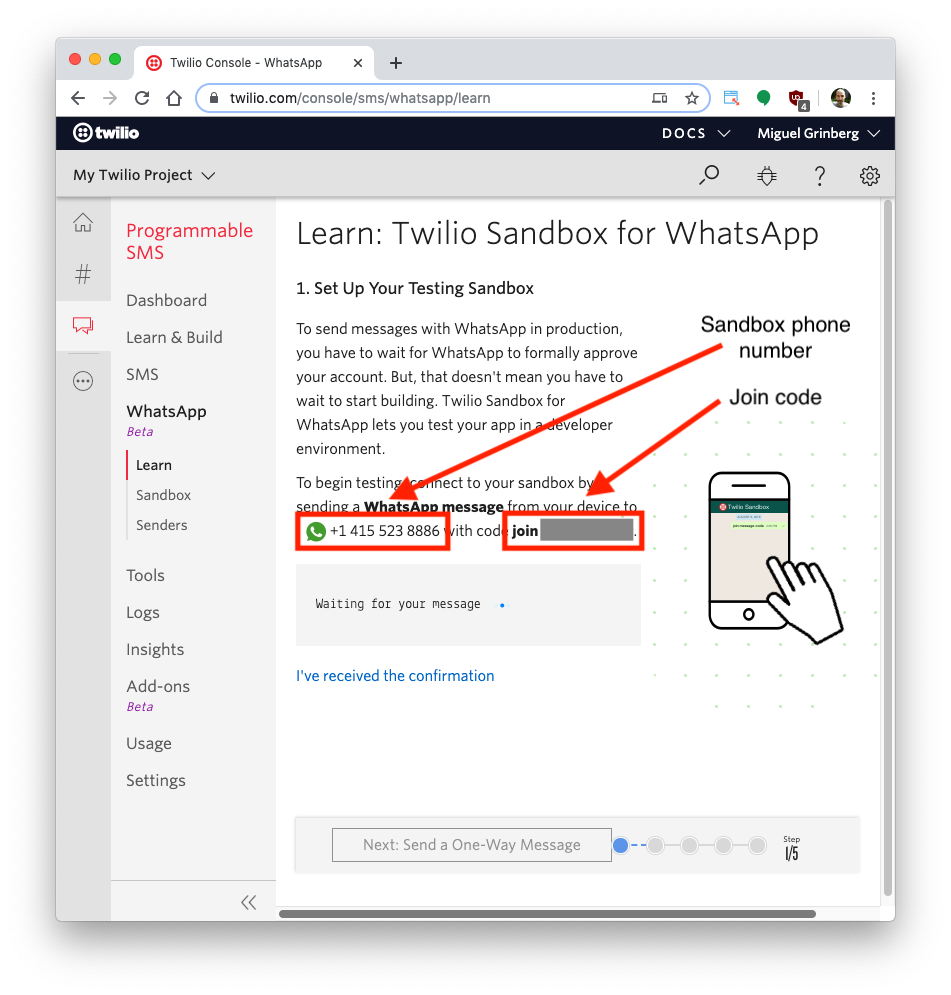

In this section you are going to connect your smartphone to the sandbox. From your Twilio Console, select Messaging, then select Try it Out on the sidebar. Open the WhatsApp section. The WhatsApp sandbox page will show you the sandbox number assigned to your account, and a join code.

WhatsApp Sandbox configuration

To enable the WhatsApp sandbox for your smartphone send a WhatsApp message with the given code to the number assigned to your account. The code is going to begin with the word "join", followed by a randomly generated two-word phrase.

Shortly after you send the message you should receive a reply from Twilio indicating that your mobile number is connected to the sandbox and can start sending and receiving messages.

If you intend to test your application with additional smartphones, then you must repeat the sandbox registration process with each of them.

Set up your development environment

In this section you are going to set up a brand new JavaScript project. Open your terminal and run the following commands:

mkdir whatsapp-pic
cd whatsapp-pic

The next step is to initialize a new Node.js project by running the following command:

npm init -y

After initializing your new Node.js app, you can install the two required dependencies: the Twilio Node Helper Library and dotenv, to load your environment variables:

npm install twilio dotenv

Create two new files, index.js and .env, inside your whatsapp-pic directory:

touch index.js && touch .env

Open the .env file and add two environment variables to store your Twilio Account SID and Twilio Auth Token. Leave the values for each variable blank for the moment, as you’ll collect these credentials in a moment.

TWILIO_ACCOUNT_SID=
TWILIO_AUTH_TOKEN=

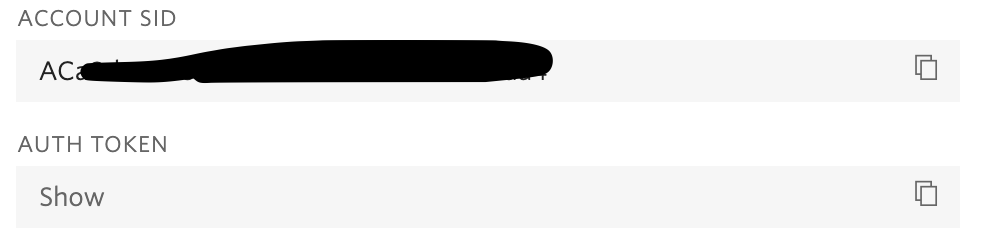

Head to your main dashboard within the Twilio Console and find your Account SID and Auth Token.

Twilio Account Credentials

Copy and paste these values into the .env file you just created as the values for the variables TWILIO_ACCOUNT_SID and TWILIO_AUTH_TOKEN respectively. You can save and close this file now.

Send a picture message with Twilio

Open your new index.js file and copy and paste the following code, taking care to replace the placeholders with your WhatsApp sandbox number and your personal WhatsApp number using the E.164 format, on lines 5 and 8 respectively.

require('dotenv').config();
const client = require('twilio')(process.env.TWILIO_ACCOUNT_SID, process.env.TWILIO_AUTH_TOKEN);

client.messages.create({
  from: 'whatsapp:+14155238886', // shared WhatsApp number
  body: 'Ahoy world!',
  mediaUrl: 'https://raw.githubusercontent.com/dianephan/flask_upload_photos/main/UPLOADS/DRAW_THE_OWL_MEME.png',
  to: 'whatsapp:+YOUR_WHATSAPP_NUMBER' // change this to your personal WhatsApp number
}).then(message => console.log(`Message sent: ${message.sid}`));

This code creates a new Twilio client using the Twilio credentials stored in your .env file.

It then creates a new message instance of the Message resource as provided by the Twilio Messaging API for WhatsApp in order to send a WhatsApp message to your personal phone number from the Twilio sandbox number.

The message instance also allows you to include the body of a message as well as a URL of an image you want to send. Feel free to change it to another image URL as you wish.

After the message is sent, the message SID is printed on your terminal for your reference.

To run this code, save your index.js file and head to your terminal. From your whatsapp-pic directory, run the following command:

node index.js

In just a moment, you will see a ping from WhatsApp on your personal phone sent directly from your computer!

Let me know what else you’re building with WhatsApp, Twilio, and JavaScript on Twitter!

Ashley is a JavaScript Editor for the Twilio blog. To work with her and bring your technical stories to Twilio, find her at @ahl389 on Twitter. If you can’t find her there, she’s probably on a patio somewhere having a cup of coffee (or glass of wine, depending on the time).
